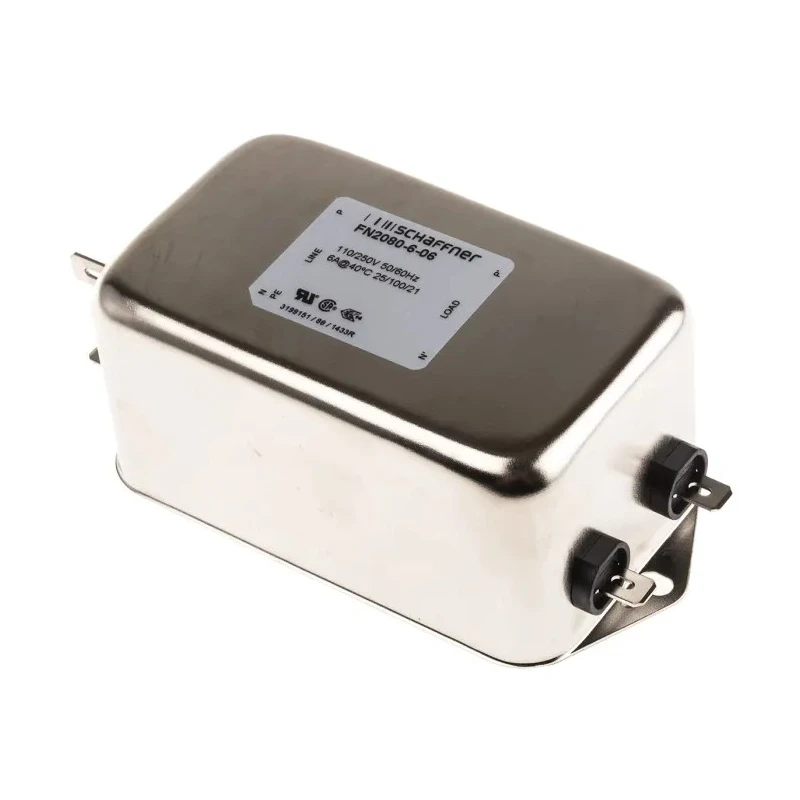

Schaffner Chassis Mount EMI Filter 6 A 250V AC/DC 400Hz Fast-On Termination Single Phase FN2080
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 45.4mm |
| Length | 57.5mm |
| Model | FN2080 |
| Depth | 113.5mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN2080 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 220kΩ |
| Capacitance | 4.7nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 6A |
| Number of Phases | 1 |
| Leakage Current | 734μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 7.8mH |
| Termination Style | Fast-On |
| Power Loss | 5.7W |
Key Features
- Two-stage filter design provides excellent conducted attenuation performance.
- Fast-On 0.25 inch terminals ensure quick, reliable connections.
- Designed for chassis mounting with compact dimensions.
- Operates efficiently at frequencies up to 400Hz with low leakage current.
- Temperature range from -25°C to 100°C suitable for diverse environments.
- Resistant to saturation with excellent thermal behavior.
- Applicable in industrial, medical, and office automation equipment.
- Features a 4.7nF capacitance and 7.8mH inductance for wide-band filtering.
Product Description
Schaffner FN2080-6-06 is a premium two-stage chassis mount EMI filter designed to deliver a maximum current of 6 A and voltage rating of 250V AC/DC at 400Hz frequency. Housed in a robust aluminium enclosure, this filter is engineered to provide superior attenuation of electromagnetic interference for single phase applications. Fast-On 0.25 inch terminals allow easy and quick connection, making it ideal for industrial, medical, and office automation equipment requiring reliable EMI suppression.
The FN2080 series features high saturation resistance chokes and excellent thermal characteristics to handle demanding environments with operating temperatures ranging from -25°C to 100°C. Its two-stage design ensures broad frequency attenuation, aided by a 4.7nF capacitance and 7.8mH inductance in the differential mode stage. The filter ensures minimal leakage current of 734μA and power loss of 5.7W, supporting efficient operation.
Compact dimensions of 45.4mm height, 57.5mm length, and 113.5mm depth allow easy integration into chassis mount setups. This robust EMI filter is suitable for a range of applications including electrical and electronic machinery, building automation controls, industrial equipment, medical devices, and other electronic systems requiring effective EMI noise reduction.
While standard versions are supplied, optional medical (B type) and safety (A type) versions are available to meet specialized industry requirements. This model does not include specific certification approvals but embodies Schaffner’s quality and performance standards.
Two-stage chassis mount EMI filter with aluminium case. Fast-On 0.25 inch terminal connections for secure installation. Operates reliably at 400Hz frequency with high attenuation. Designed for single phase electrical systems.
Suitable for industrial, medical, office automation, and building applications. Explore more Schaffner EMI Filters and power line filters for advanced electromagnetic noise suppression on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMI filter is 6 A.
This model has a voltage rating of 250V AC/DC.
It operates efficiently at frequencies up to 400Hz.
The dimensions are 45.4mm in height, 57.5mm in length, and 113.5mm in depth.
This EMI filter is designed for chassis mounting.
It features a capacitance of 4.7nF and an inductance of 7.8mH.
The leakage current for this model is 734μA.
The operating temperature range is from -25°C to 100°C.
It is suitable for industrial, medical, and office automation equipment.
The power loss of this filter is 5.7W.
It uses Fast-On 0.25 inch terminals for quick and reliable connections.
Yes, optional medical (B type) and safety (A type) versions are available to meet specialized industry requirements.
