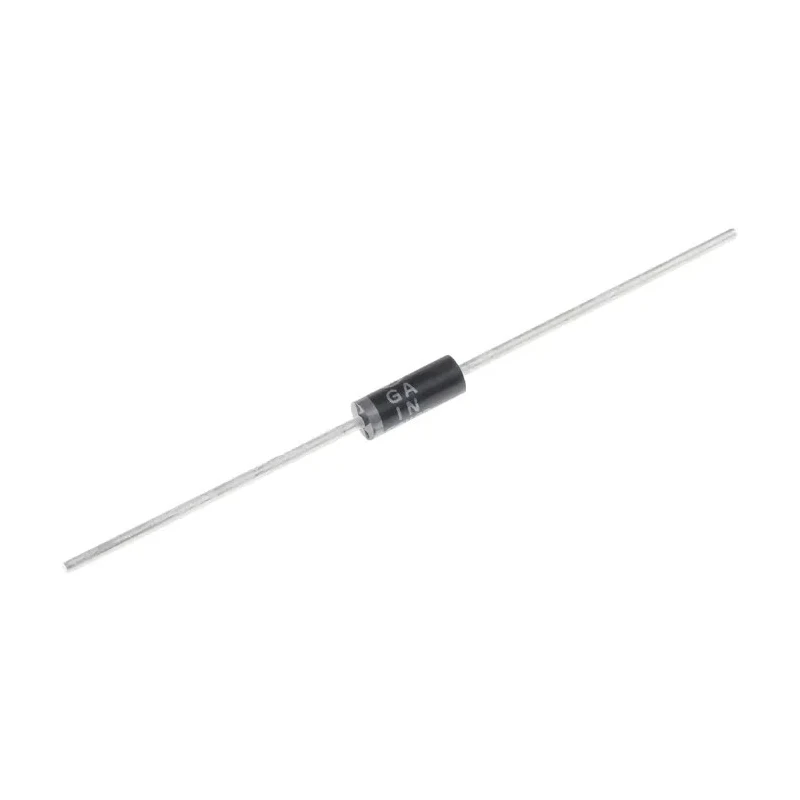

onsemi 11 V 5 W Zener Diode Single Through Hole 2-Pin DO-15 1N5348BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5348BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 125mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 11V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2.5Ω |
| 11V Zener Diode,1N5345B 5WBrand | ON Semiconductor |
Key Features
- The diode features a single element configuration with 2 pins for through-hole mounting.
- It provides stable voltage regulation suitable for industrial and electronic component applications.
- Maximum power dissipation is 5 watts with a test current of 125 mA.
- Operating temperature ranges from -65°C to 200°C, ensuring reliability under harsh conditions.
- The device has low maximum reverse leakage current of 5 µA and maximum zener impedance of 2.5 Ω for efficient performance.
- Constructed with a corrosion resistant molded thermosetting plastic package for durability.
- Its axial lead design allows easy insertion in printed circuit boards and other electronic assemblies.
- Ideal for use in voltage regulation within power and semiconductor circuits.
Product Description
onsemi 1N5348BRLG Zener Diode is a robust semiconductor component designed for use as a voltage regulator with a nominal zener voltage of 11 V and maximum power dissipation rating of 5 W.
This single-element diode features a through-hole mount style with a DO-15 molded package that is void-free and thermosetting, providing excellent environmental protection and corrosion resistance.
The device operates reliably in temperature ranges from -65°C to 200°C, making it suitable for demanding industrial and electronic applications requiring stable voltage regulation.
The 2-pin axial-lead configuration facilitates straightforward PCB assembly and soldering for electronic manufacturing processes. The diode configuration is single element with a pin count of 2. Maximum reverse leakage current is limited to 5 microamperes for low power loss.
Test current is rated at 125 mA ensuring correct zener operation under load. Maximum zener impedance is 2.5 ohms providing tight voltage regulation. Package dimensions include a length of 8.89 mm and height of 3.68 mm. This component is part of onsemi's 1N53 series, known for high reliability and consistent performance in power electronics and voltage regulation functions.
It is effectively used in industrial, electronic manufacturing, laboratory, and semiconductor circuit design applications. Choose the onsemi 1N5348BRLG for stable voltage regulation needs in professional and commercial electronics projects.
Explore a wide selection of Zener Diodes at EnvMart for your electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal zener voltage of this diode is 11 V.
This model has a maximum power dissipation rating of 5 watts.
The operating temperature range for this diode is from -65°C to 200°C.
The maximum reverse leakage current for this diode is limited to 5 µA.
It uses a DO-15 molded package for its construction.
This model features a 2-pin configuration for through-hole mounting.
The maximum zener impedance of this diode is 2.5 Ω.
The test current rating for this diode is 125 mA.
The height of this diode is 3.68 mm and the length is 8.89 mm.
This diode has a single element configuration.
It is suitable for voltage regulation in power and semiconductor circuits, as well as various industrial and electronic applications.
The country of origin for this diode is India.
