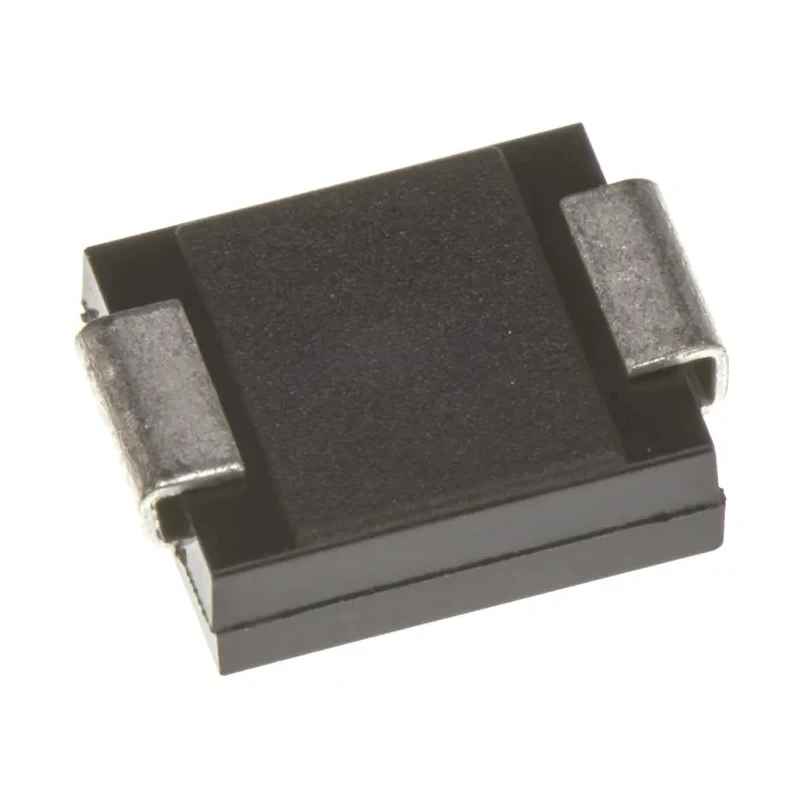

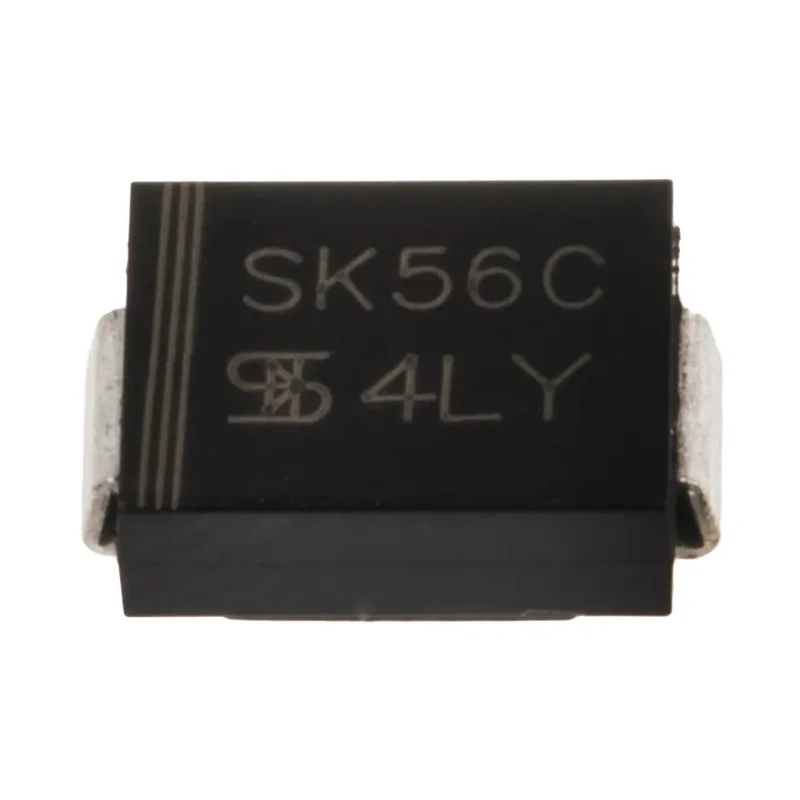

Taiwan Semiconductor 60 V 5 A Surface Mount Schottky Diode DO-214AB 2-Pin SK56C

Taiwan Semiconductor SK56C is a high-performance Schottky diode designed for power electronics applications. This surface mount diode in the DO-214AB package supports a peak reverse voltage of 60 V and a continuous forward current of 5 A, making it ideal for efficient rectification tasks in switched-mode power supplies and other power management circuits.

The device features a low forward voltage drop of 750 mV to reduce conduction losses and improve overall system efficiency. It can withstand peak non-repetitive forward surge currents up to 120 A, ensuring robustness during transient load conditions.

With dimensions of 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, it is optimized for space-constrained PCB layouts. The diode operates reliably across a wide temperature range from -55°C to 150°C, suitable for industrial and automotive environments, although this specific part is not automotive standard compliant.

Its 2-pin single diode configuration facilitates easy integration in rectifier circuits, power supplies, and freewheeling diode roles in various electronic and industrial systems. Compact DO-214AB surface mount package. Maximum continuous forward current of 5 A.

Peak reverse voltage rating of 60 V. Low forward voltage drop of 750 mV ensures energy efficiency. Wide operating temperature range: -55°C to 150°C. High surge current capability up to 120 A. 2-pin single diode configuration.

Reliable leakage current performance at 500 μA peak reverse. Ideal for power rectification and electronic component designs.

This Taiwan Semiconductor SK56C Schottky Diode is well suited for applications in industrial equipment, power supplies, consumer electronics, and other semiconductor module requirements.
