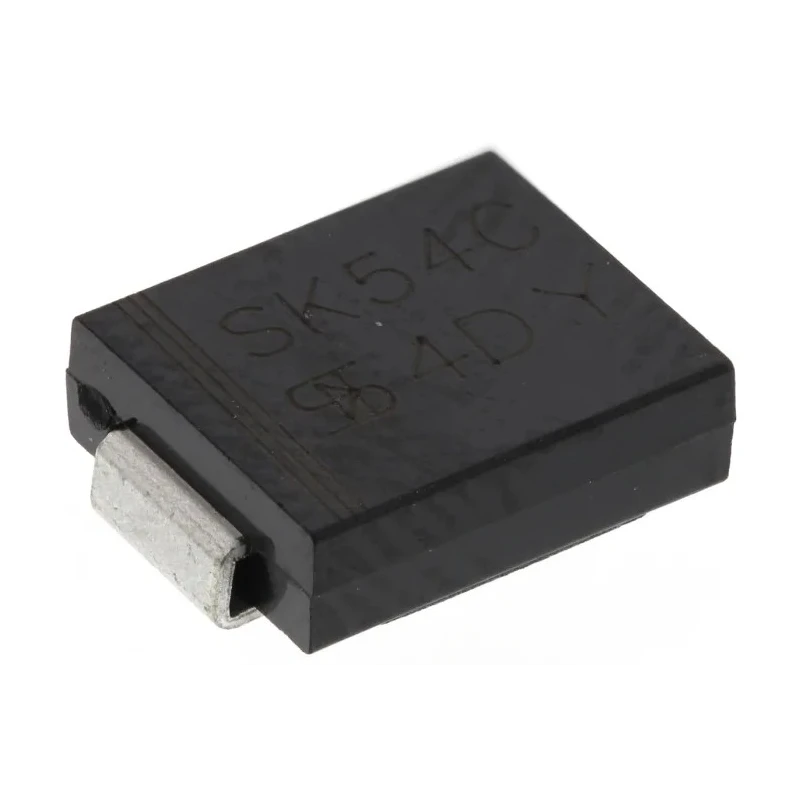

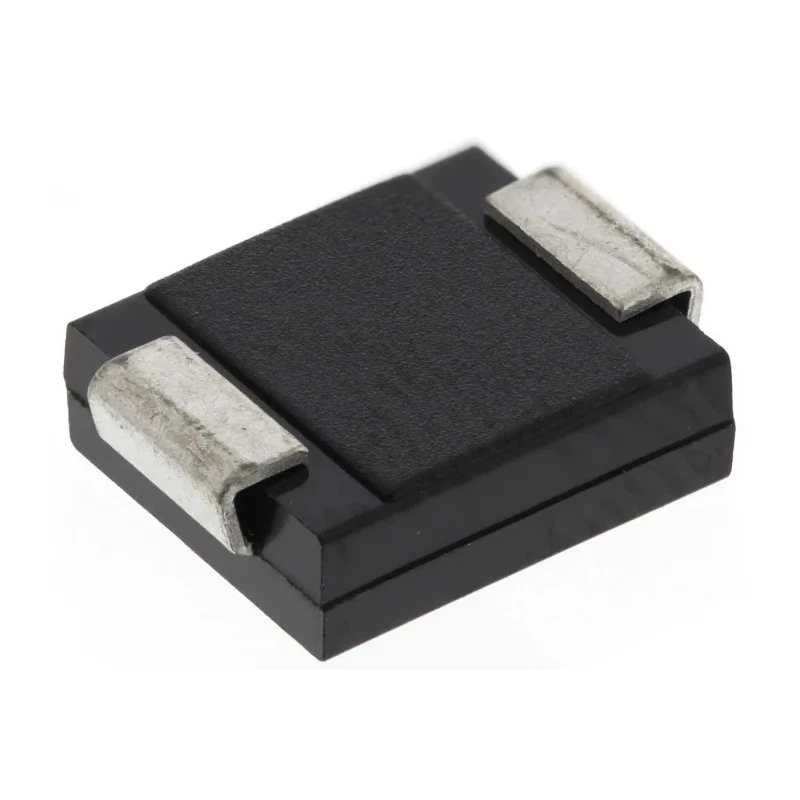

Taiwan Semiconductor 40 V 5 A Surface Mount Schottky Diode DO-214AB 2-Pin SK54C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SK54C |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | SK54C |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 0.55V |
Key Features
- This Schottky diode supports a maximum continuous forward current of 5 amperes.
- It has a peak reverse repetitive voltage rating of 40 volts.
- The diode features a single diode configuration with a 2-pin DO-214AB package.
- Maximum forward voltage is 0.55 volts to reduce power loss.
- Operating temperature ranges from -55°C to 150°C.
- Peak non-repetitive forward surge current rating is 120 amperes.
- Compact size with length 7.11 mm, width 6.22 mm, and height 2.42 mm.
- Peak reverse current leakage is 500 microamperes.
Product Description
Taiwan Semiconductor SK54C is a 40 V 5 A Schottky diode designed for surface mount applications. Packaged in a DO-214AB (SMC) 2-pin form factor, this diode is engineered for efficient power rectification in electronic circuits requiring low forward voltage drop and high current capabilities.
The SK54C offers a maximum continuous forward current of 5 A and can tolerate peak repetitive reverse voltages up to 40 V, providing reliable performance in power supply, switching, and rectifying applications. Its maximum forward voltage of 0.55 V helps to reduce conduction losses, improving overall efficiency.
With a robust temperature range from -55°C to 150°C, the diode is suitable for diverse industrial, consumer electronics, and power management systems. The peak non-repetitive forward surge current rating of 120 A allows the device to handle transient overloads safely. Its compact dimensions - 7.11 mm length, 6.22 mm width, and 2.42 mm height - facilitate easy integration into compact PCB designs.
This Schottky barrier diode is ideal for applications requiring low power loss and high switching speeds, such as power rectifiers, voltage clamping, and switching regulators in industrial automation, instrumentation, and electronic component manufacturing.
This Schottky diode supports a maximum continuous forward current of 5 amperes. It has a peak reverse repetitive voltage rating of 40 volts. The diode features a single diode configuration with a 2-pin DO-214AB package. Maximum forward voltage is 0.55 volts to reduce power loss.
Operating temperature ranges from -55°C to 150°C. Peak non-repetitive forward surge current rating is 120 amperes. Compact size with length 7.11 mm, width 6.22 mm, and height 2.42 mm. Peak reverse current leakage is 500 microamperes.
Designed for surface mount technology for efficient circuit assembly. Suitable for industrial, laboratory, and commercial electronic applications. Explore more semiconductor and Schottky Diode products at EnvMart for diverse electronics and industrial uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SK54C Schottky diode supports a maximum continuous forward current of 5 amperes.
This model has a peak reverse repetitive voltage rating of 40 volts.
The maximum forward voltage drop for this diode is 0.55 volts, which helps to reduce power loss.
The dimensions of this diode are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
The SK54C operates within a temperature range of -55°C to 150°C.
The peak non-repetitive forward surge current rating is 120 amperes.
The peak reverse current leakage for the SK54C is 500 microamperes.
This diode is packaged in a DO-214AB (SMC) form factor, which is suitable for surface mount applications.
The SK54C features a single diode configuration.
This model is used in power rectifiers, voltage clamping, and switching regulators in various electronic applications.
The SK54C is a Schottky rectifier, designed for efficient power rectification.
The SK54C has a pin count of 2.
