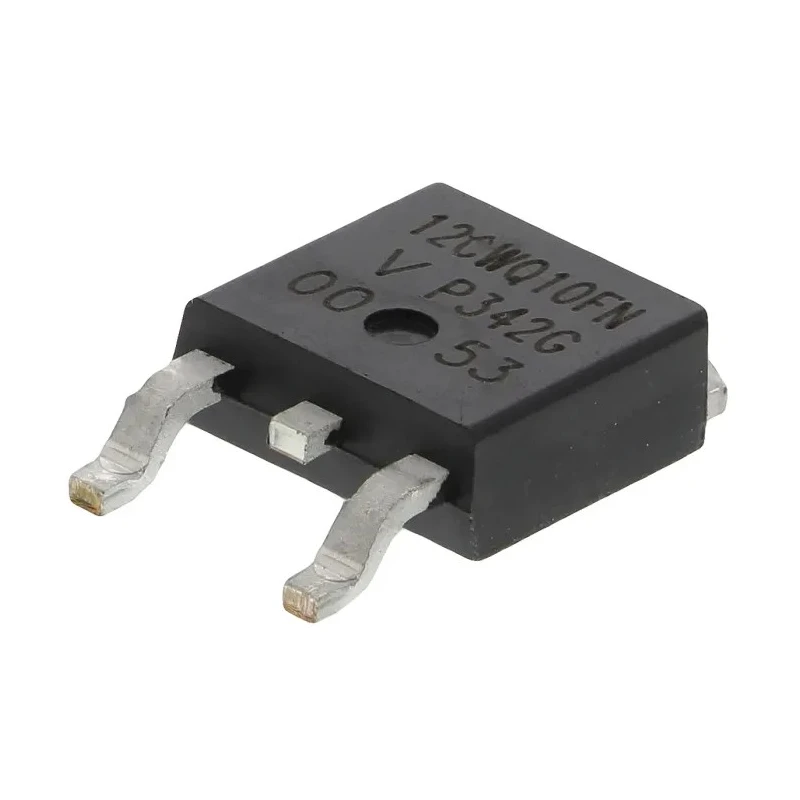

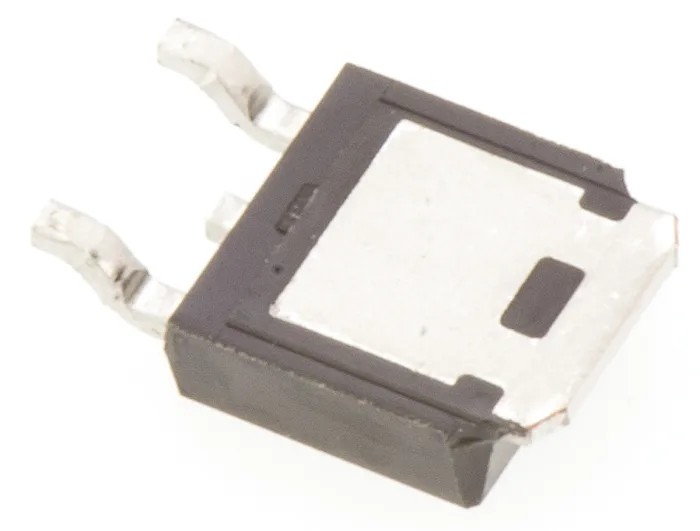

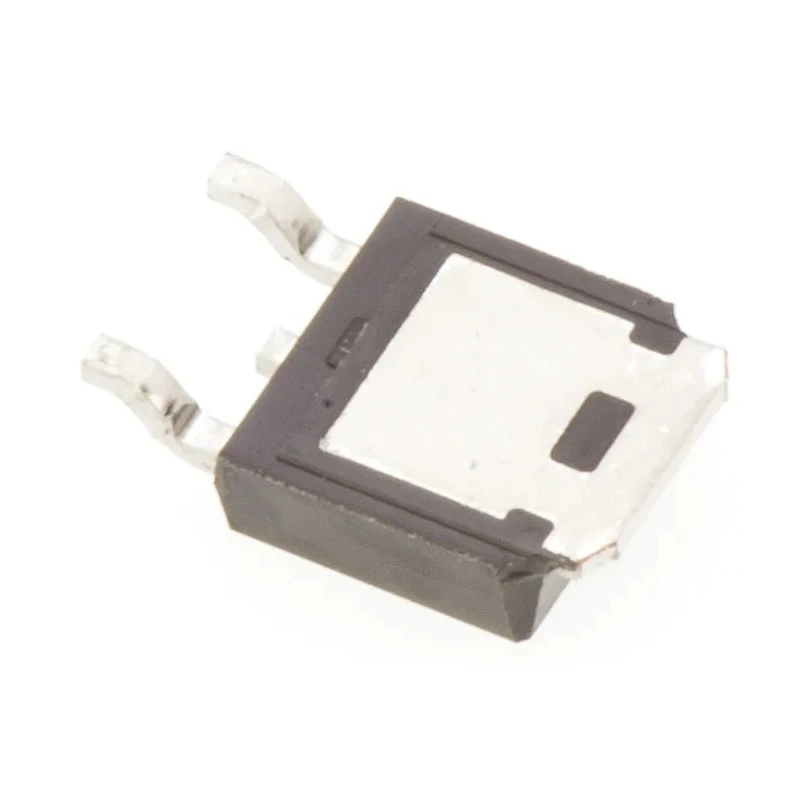

Vishay High-Performance 100 V 12 A Schottky Diode 3-Pin DPAK VS-12CWQ10FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6.73mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-12CWQ10FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | VS-12CWQ10FN |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 330A |
| Maximum Forward Voltage Vf | 650mV |
| Vishay 100V 12A, Dual Schottky Diode, 3-Pin DPAK VS-12CWQ10FNPBFBrand | Vishay |
Key Features
- Mounted on a TO-252 surface package with a 3-pin DPAK configuration.
- Features a maximum forward voltage of 650 mV allowing low power loss during conduction.
- Operates efficiently between -55°C and 150°C, suitable for industrial environments.
- Offers peak non-repetitive forward surge current of 330 A for transient overload protection.
- Compact dimensions with length 6.73 mm, width 6.22 mm, and height 2.39 mm optimize PCB space.
- Designed with a common cathode diode configuration ideal for power rectification.
- Extremely fast switching speeds reduce reverse recovery times, enhancing efficiency.
- Peak reverse current is limited to 1 mA, ensuring high reliability.
Product Description
Vishay VS-12CWQ10FN-M3 is a high-performance Schottky diode designed for fast switching and low forward voltage drop applications. This 3-pin DPAK diode is rated for a maximum continuous forward current of 12 A and a peak reverse repetitive voltage of 100 V, making it suitable for power rectification and industrial electronic circuits.
The diode package complies with TO-252 standards, offering a compact surface-mount footprint with dimensions 6.73 mm length, 6.22 mm width, and 2.39 mm height. It features a common cathode diode configuration optimized for efficient conduction with a low forward voltage of 650 mV typical, which minimizes power dissipation and increases circuit efficiency.
Designed to operate reliably within a temperature range of -55°C to 150°C, the VS-12CWQ10FN-M3 supports demanding industrial environments. It withstands peak non-repetitive forward surge currents of up to 330 A, providing robustness against transient overloads.
This Schottky diode's extremely fast reverse recovery time reduces switching losses, improving performance in power supply and automotive applications. Its peak reverse current is limited to 1 mA ensuring high reliability.
Mounted on a TO-252 surface package with 3 pins for easy PCB assembly. Forward current rating of 12 A supports medium power applications. Reverse voltage rating of 100 V protects circuits from overvoltage. Compact size aids in dense electronic circuit designs.
Wide operating temperature range ensures durability in harsh conditions. Extremely fast switching facilitates high-frequency use cases. Suitable for power rectifiers in industrial, automotive, and electronic applications.
This Vishay Schottky Diode model VS-12CWQ10FN-M3 is ideal for engineers and technicians seeking reliable, efficient diode solutions for electronic designs. Explore the Electronics & Electricals category for additional semiconductor components and related devices at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the VS-12CWQ10FN-M3 is 12 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The dimensions of the TO-252 package are 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height.
The typical forward voltage drop for this diode is 650 mV.
This diode operates reliably within a temperature range of -55°C to 150°C.
The peak non-repetitive forward surge current rating is 330 A.
It features a common cathode diode configuration, which is ideal for power rectification.
The peak reverse current is limited to 1 mA, ensuring high reliability.
This diode is designed for surface mounting, specifically in a TO-252 package.
This Schottky diode is suitable for power rectification in industrial, automotive, and electronic applications.
The extremely fast switching speeds reduce reverse recovery times, enhancing efficiency in applications.
The low forward voltage drop of 650 mV minimizes power dissipation and increases circuit efficiency.
