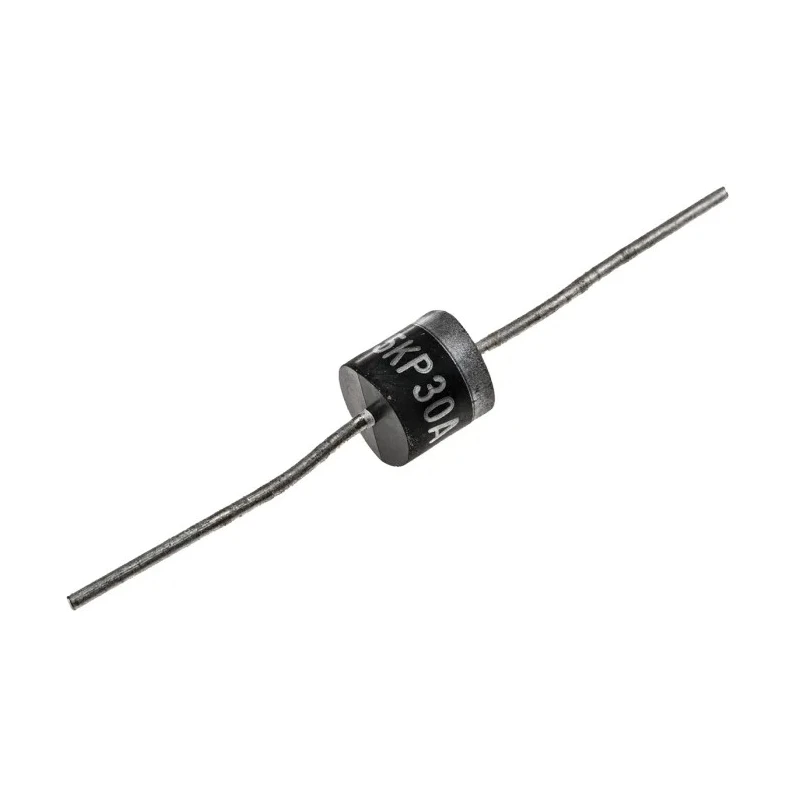

Vishay 1-Element Uni-Directional TVS Diode 1.5 kW Peak Pulse Power 2-Pin P600 5KP30A-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | 5KP30A-E3/54 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | P600 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 48.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 33.3V |
| Maximum Reverse Stand-off Voltage Vwm | 30V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 103A |
| Maximum Reverse Leakage Current | 2μA |
Key Features
- Designed with a single diode configuration for uni-directional transient voltage suppression.
- Features a minimum breakdown voltage of 33.3 V and a maximum reverse stand-off voltage of 30 V.
- High clamping voltage at 48.4 V ensures effective protection against voltage spikes.
- Operates in a temperature range from -55°C to 175°C for robust performance.
- Utilizes a through-hole mount type for easy PCB installation.
- Complies with automotive standard AEC-Q101 for reliability in automotive applications.
- Compact P600 package with dimensions 9.1 mm in height, width, length, and diameter.
- Supports a maximum peak pulse current of 103 A with ESD protection included.
Product Description
Vishay 5KP30A-E3/54 is a high-performance uni-directional Transient Voltage Suppressor (TVS) diode designed for transient voltage protection in electronic circuits. This diode features a peak pulse power dissipation of 1.5 kW, ideal for safeguarding sensitive semiconductor components from voltage spikes and surges.
The diode employs a single element configuration in a P600 package, using a through-hole mount suitable for a wide range of assembly processes. It has a minimum breakdown voltage of 33.3 V and can withstand a maximum reverse stand-off voltage of 30 V, with a clamping voltage of 48.4 V ensuring quick suppression of transient events.
Capable of operating across a temperature range from -55°C to 175°C, this diode meets automotive reliability standards (AEC-Q101), making it well suited for industrial, automotive, and electronic equipment applications requiring robust transient voltage suppression.
Physical dimensions of the package are compact at 9.1 mm in height, width, length, and diameter, allowing for space-efficient circuit design. The diode supports a maximum peak pulse current of 103 A and offers excellent electrostatic discharge (ESD) protection, enhancing device longevity.
Additional benefits include a glass passivated junction ensuring a very fast response time and low incremental surge resistance, critical for high-speed transient suppression tasks.
Designed with a single diode configuration for uni-directional transient voltage suppression. Features a minimum breakdown voltage of 33.3 V and a maximum reverse stand-off voltage of 30 V. High clamping voltage at 48.4 V ensures effective protection against voltage spikes.
Operates in a temperature range from -55°C to 175°C for robust performance. Utilizes a through-hole mount type for easy PCB installation. Complies with automotive standard AEC-Q101 for reliability in automotive applications.
Compact P600 package with dimensions 9.1 mm in height, width, length, and diameter. Supports a maximum peak pulse current of 103 A with ESD protection included. Glass passivated junction technology provides excellent clamping and fast response time.
This Vishay TVS diode is ideal for use in industrial electronics, automotive systems, power supplies, and manufacturing electronics requiring reliable transient voltage protection. It is designed to enhance overall system robustness and reduce downtime caused by voltage surges.
Explore more TVS Diode solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay 5KP30A-E3/54 has a peak pulse power dissipation of 1.5 kW, making it suitable for transient voltage protection in electronic circuits.
The clamping voltage of this diode is 48.4 V, which ensures effective protection against voltage spikes.
This model operates in a temperature range from -55°C to 175°C, allowing it to function in various environmental conditions.
The P600 package has dimensions of 9.1 mm in height, width, length, and diameter, allowing for compact circuit design.
The maximum reverse stand-off voltage for the Vishay 5KP30A-E3/54 is 30 V, which is critical for its operation in voltage protection applications.
It utilizes a through-hole mount type, which is suitable for a wide range of PCB assembly processes.
This model complies with the automotive standard AEC-Q101, ensuring reliability in automotive applications.
The diode features a single element configuration, designed specifically for uni-directional transient voltage suppression.
The maximum peak pulse current supported by this diode is 103 A, providing robust protection against transient events.
The minimum breakdown voltage is 33.3 V, which is essential for its function in protecting sensitive components.
The maximum reverse leakage current for this diode is 2 μA, which indicates its efficiency in preventing unwanted current flow.
It utilizes glass passivated junction technology, which provides excellent clamping and fast response time for transient suppression tasks.
