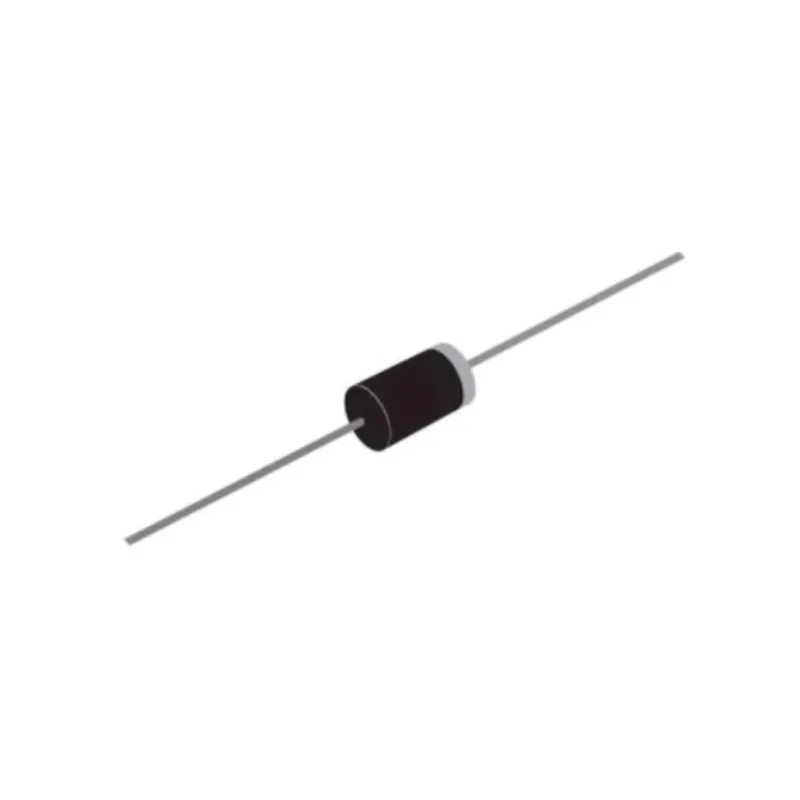

Vishay 1-Element Uni-Directional 5 kW TVS Diode 2-Pin P600 5KP48A-E3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | 5KP48A-E3 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | P600 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 77.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 53.3V |
| Maximum Reverse Stand-off Voltage Vwm | 48V |
| Peak Pulse Power Dissipation Pppm | 5kW |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 64.6A |
| Maximum Reverse Leakage Current | 2μA |
Key Features
- Single diode configuration provides effective transient voltage suppression.
- Uni-directional design for reliable protection against voltage spikes.
- Peak pulse power dissipation of 5 kW ensures robust surge handling.
- Maximum peak pulse current of 64.6A for strong transient protection.
- Wide operating temperature range from -55°C to 175°C.
- Compact 9.1 mm P600 package for through-hole mounting.
- Automotive AEC-Q101 qualified for high reliability use.
- Low reverse leakage current improves circuit efficiency.
Product Description
Vishay 5KP48A-E3 is a 1-element uni-directional transient voltage suppressor (TVS) diode designed for protecting sensitive electronic circuits from transient voltage spikes and surges. Rated for a peak pulse power dissipation of 5 kW, this diode is housed in a 2-pin P600 package with compact dimensions of 9.1 mm length, width, height, and diameter, making it suitable for through-hole mounting in various printed circuit board designs.
The device features a minimum breakdown voltage of 53.3V and a maximum reverse standoff voltage of 48V, with a peak pulse current of 64.6A ensuring superior transient absorption capability. The clamping voltage of 77.4V protects downstream components by limiting voltage spikes effectively. With a maximum operating temperature of 175°C and a minimum operating temperature of -55°C, this diode can reliably operate in harsh and industrial environments.
Its fast response time and low incremental surge resistance enable protection against electrostatic discharge and transient voltage surges. As an automotive AEC-Q101 qualified component, it meets stringent industry standards, making it ideal for automotive, industrial, and consumer electronic applications requiring durable, high-performance protection.
This single-element TVS diode offers a robust solution in transient voltage suppression for laboratory, construction, manufacturing, HVAC, and various electronics industries, safeguarding critical electronic circuits and devices from damaging voltage transients.
Single diode configuration provides effective transient voltage suppression. Uni-directional design for reliable protection against voltage spikes. Peak pulse power dissipation of 5 kW ensures robust surge handling. Maximum peak pulse current of 64.6A for strong transient protection.
Wide operating temperature range from -55°C to 175°C. Compact 9.1 mm P600 package for through-hole mounting. Automotive AEC-Q101 qualified for high reliability use. Low reverse leakage current improves circuit efficiency.
Fast response time protects against electrostatic discharge. Low incremental surge resistance enhances performance.
EnvMart's range of Vishay TVS Diodes offers reliable protection for sensitive components in harsh electrical environments. Explore more semiconductor components for power and signal protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the 5KP48A-E3 diode is 5 kW, ensuring robust surge handling capabilities.
The maximum reverse stand-off voltage for the 5KP48A-E3 is 48V.
The clamping voltage of this diode is 77.4V, which helps protect downstream components from voltage spikes.
The maximum peak pulse current for the 5KP48A-E3 is 64.6A, providing strong transient protection.
This diode has dimensions of 9.1 mm in length, width, and height, making it compact for various applications.
The operating temperature range for this diode is from -55°C to 175°C, allowing it to function in harsh environments.
The 5KP48A-E3 supports through-hole mounting, suitable for various printed circuit board designs.
Yes, the 5KP48A-E3 is automotive AEC-Q101 qualified, ensuring it meets high reliability standards for automotive applications.
The diode configuration of the 5KP48A-E3 is single, providing effective transient voltage suppression.
The minimum breakdown voltage of the 5KP48A-E3 is 53.3V, which is critical for its operation in surge protection.
The maximum reverse leakage current for this diode is 2μA, which helps improve circuit efficiency.
The 5KP48A-E3 belongs to the TRANSZORB TVS series, designed for transient voltage suppression.
