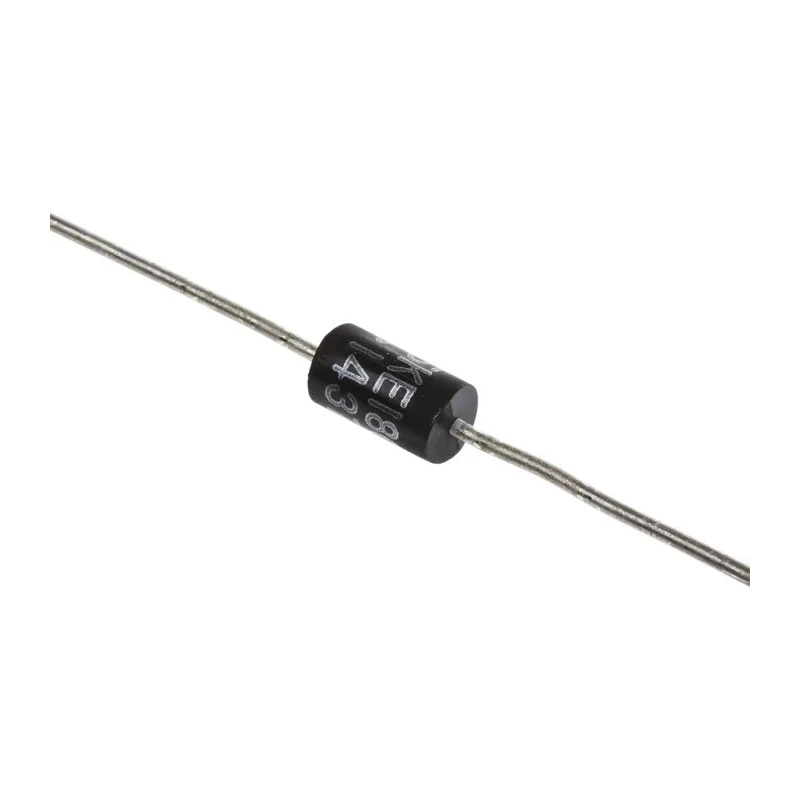

Vishay 1-Element Bi-Directional TVS Diode Through Hole Mount 1.5 kW Peak Pulse Power 1.5KE18CA-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE18CA-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | 1.5KE |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 26.5V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 16.2V |
| Maximum Reverse Stand-off Voltage Vwm | 14.5V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 56.6A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration for bi-directional transient voltage protection.
- Maximum peak pulse power dissipation of 1.5 kW ensures robust surge handling.
- Minimum breakdown voltage of 16.2 volts provides precise voltage clamping.
- Clamping voltage of 26.5 volts effectively limits voltage spikes.
- Through hole mounting facilitates easy integration into PCB designs.
- Axial package type 1.5KE balances size and thermal performance.
- Withstands operating temperatures from -55°C up to 175°C for versatile applications.
- Peak pulse current capability is 56.6 A for transient suppression.
Product Description
Vishay 1.5KE18CA-E3/54 is a high-performance 1-element bi-directional transient voltage suppression (TVS) diode designed for protecting electronic circuits from voltage transients. Featuring a single diode configuration, it efficiently clamps transient voltages with a peak pulse power rating of 1.5 kW, making it suitable for demanding industrial and automotive applications.
This TVS diode operates reliably over a wide temperature range from -55°C to 175°C, supporting harsh environmental conditions. Its through hole mount and axial 1.5KE package facilitate ease of assembly and robust mechanical fixation on printed circuit boards.
The device provides a minimum breakdown voltage of 16.2 V and clamps voltages at 26.5 V under transient conditions, effectively safeguarding sensitive electronics against voltage spikes. It features a peak pulse current rating of 56.6 A and a maximum reverse stand-off voltage of 14.5 V, ensuring superior surge absorption capabilities.
Compliant with the automotive standard AEC-Q101, this diode meets rigorous quality and reliability demands expected in vehicle electronics. Additionally, the diode's compact size with 9.5 mm length and 5.3 mm diameter allows integration into space-constrained designs.
The ESD protection functionality helps prevent damage from electrostatic discharge events, enhancing device longevity. Ideal for industrial control systems, automotive electronics, power supplies, and general transient voltage suppression tasks, this Vishay TVS diode provides dependable protection for a range of sensitive electronic equipment.
Single diode, bi-directional configuration for transient voltage suppression. Peak pulse power dissipation of 1.5 kW to handle surges effectively. Axial through hole mount package type 1.5KE for easy PCB integration. Wide operating temperature range from -55°C to 175°C.
Conforms to automotive standard AEC-Q101 for enhanced reliability. Compact form factor with 9.5 mm length and 5.3 mm diameter. Minimum breakdown voltage 16.2 V with clamping voltage of 26.5 V. Peak pulse current capability of 56.6 A for robust performance.
ESD protection included to safeguard sensitive devices. Explore the complete range of semiconductor TVS Diodes and surge protection components curated for industrial, automotive, and electronic manufacturing applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay 1.5KE18CA-E3/54 is 1.5 kW, allowing it to handle significant surges effectively.
The minimum breakdown voltage for this model is 16.2 volts, which helps in precise voltage clamping during transient events.
The clamping voltage of this diode is 26.5 volts, effectively limiting voltage spikes to protect sensitive components.
This TVS diode has a peak pulse current capability of 56.6 A, ensuring robust performance during transient suppression.
The Vishay 1.5KE18CA-E3/54 has a length of 9.5 mm and a diameter of 5.3 mm, making it compact for various applications.
This diode operates reliably over a temperature range from -55°C to 175°C, suitable for harsh environments.
It features a through hole mounting type, facilitating easy integration into printed circuit boards (PCBs).
Yes, it conforms to the automotive standard AEC-Q101, ensuring it meets the quality and reliability requirements for vehicle electronics.
The maximum reverse stand-off voltage for this diode is 14.5 volts, providing an additional layer of protection for circuits.
The Vishay 1.5KE18CA-E3/54 features a single diode configuration, designed for bi-directional transient voltage suppression.
The maximum reverse leakage current for this model is 1 μA, which is crucial for maintaining circuit integrity during operation.
This TVS diode is ideal for industrial control systems, automotive electronics, power supplies, and general transient voltage suppression tasks.
