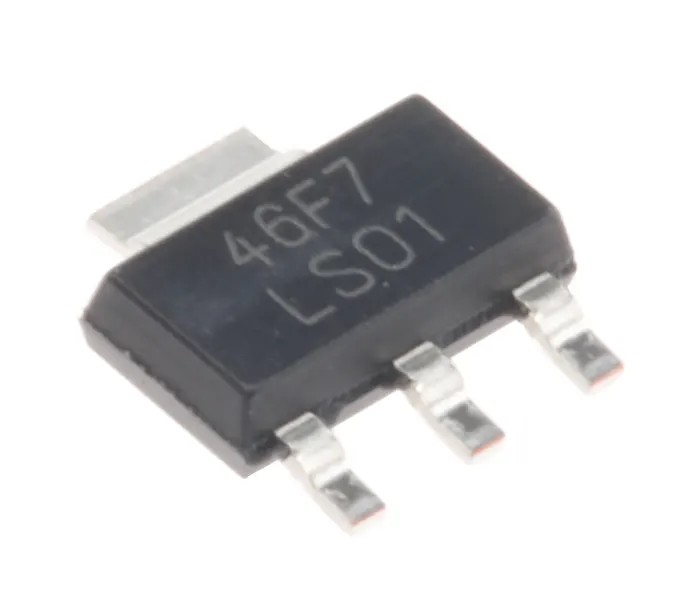

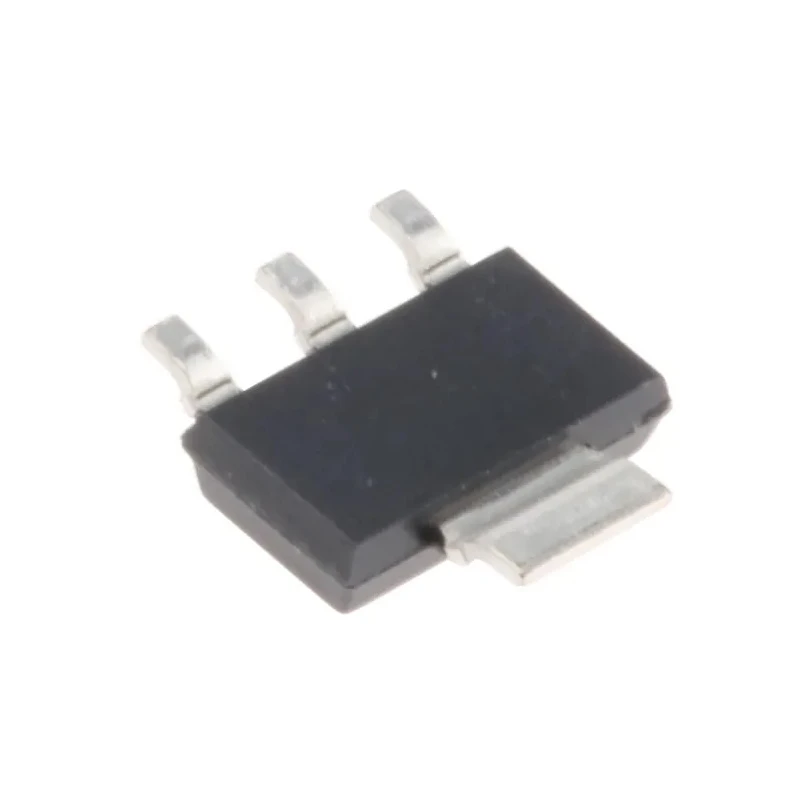

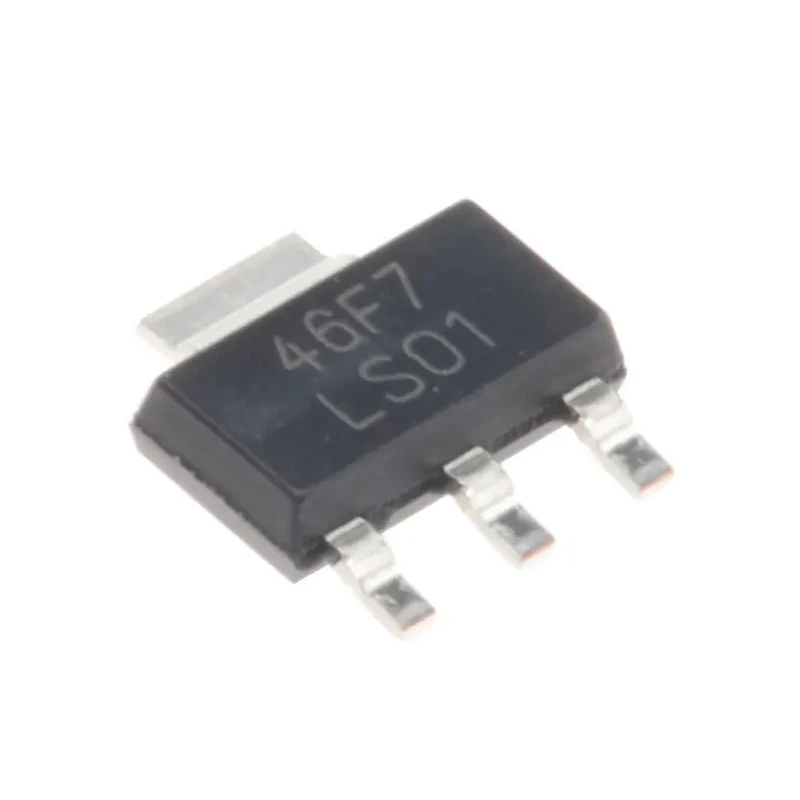

Texas Instruments Voltage Regulator 15V SOT-223 4-Pin LMS8117AMP-3.3/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.6mm |
| Length | 6.5mm |
| Model | LMS8117AMP-3.3/NOPB |
| Width | 3.56mm |
| Mount Type | Surface |
| Series | LMS8117 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-223 |
| Polarity | Positive |
| Maximum Input Voltage | 15V |
| Quiescent Current | 10mA |
| Minimum Input Voltage | 2.5V |
| Pin Count | 4 |
Key Features
- Low Dropout (LDO) linear voltage regulator from Texas Instruments LMS81xx series.
- Operates with a small input-output voltage differential for efficient regulation.
- Quiescent current rating of 10mA promotes energy savings.
- Compact and surface-mount SOT-223 package for easy PCB assembly.
- Supports positive polarity operation and maximum input voltage of 15V.
- Rated for maximum operating temperature of 125°C ensuring durability.
- Suitable for industrial, laboratory, and commercial electronics power management applications.
- High power supply ripple rejection ensures low output noise.
Product Description
Texas Instruments LMS8117AMP-3.3/NOPB is a Low Dropout (LDO) linear voltage regulator designed for electronics applications requiring stable voltage supply with minimal voltage differential. It supports a maximum input voltage of 15V and features a 4-pin SOT-223 surface mount package measuring 6.5mm in length, 3.56mm in width, and 1.6mm in height.
This regulator is part of the LMS81xx series offering low quiescent current of 10mA, which makes it energy efficient for high-reliability industrial, laboratory, and commercial electronic power management systems. It operates with positive polarity and accommodates a current load of up to 1A.
The LMS8117AMP-3.3/NOPB can withstand operating temperatures up to 125°C, making it robust for demanding environments. Its design provides excellent line voltage regulation and high power supply ripple rejection (PSRR), reducing output noise for sensitive electronic devices.
Low Dropout (LDO) linear voltage regulator from Texas Instruments LMS81xx series. Operates with a small input-output voltage differential for efficient regulation. Quiescent current rating of 10mA promotes energy savings.
Compact and surface-mount SOT-223 package for easy PCB assembly. Supports positive polarity operation and maximum input voltage of 15V. Rated for maximum operating temperature of 125°C ensuring durability. Suitable for industrial, laboratory, and commercial electronics power management applications.
High power supply ripple rejection ensures low output noise. Pin count of 4 simplifies integration into complex circuits.
This Texas Instruments voltage regulator is ideal for power management in electronic systems requiring stable voltage outputs, making it suitable for electronics component manufacturers and engineers designing PCB-based power supplies.
Explore more advanced power management ICs and Voltage Regulators in EnvMart's electronics category for reliable component selections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the LMS8117AMP-3.3/NOPB is 15V.
This voltage regulator has a quiescent current rating of 10mA, promoting energy savings.
The SOT-223 package measures 6.5mm in length, 3.56mm in width, and 1.6mm in height.
The LMS8117AMP-3.3/NOPB is rated for a maximum operating temperature of 125°C.
This model supports positive polarity operation.
It can accommodate a current load of up to 1A.
This voltage regulator is suitable for industrial, laboratory, and commercial electronics power management applications.
It provides high power supply ripple rejection (PSRR), which reduces output noise for sensitive electronic devices.
The minimum input voltage for the LMS8117AMP-3.3/NOPB is 2.5V.
This model features a pin count of 4, simplifying integration into complex circuits.
The LMS8117AMP-3.3/NOPB uses surface mount technology for easy PCB assembly.
This model is part of the LMS81xx series from Texas Instruments.
