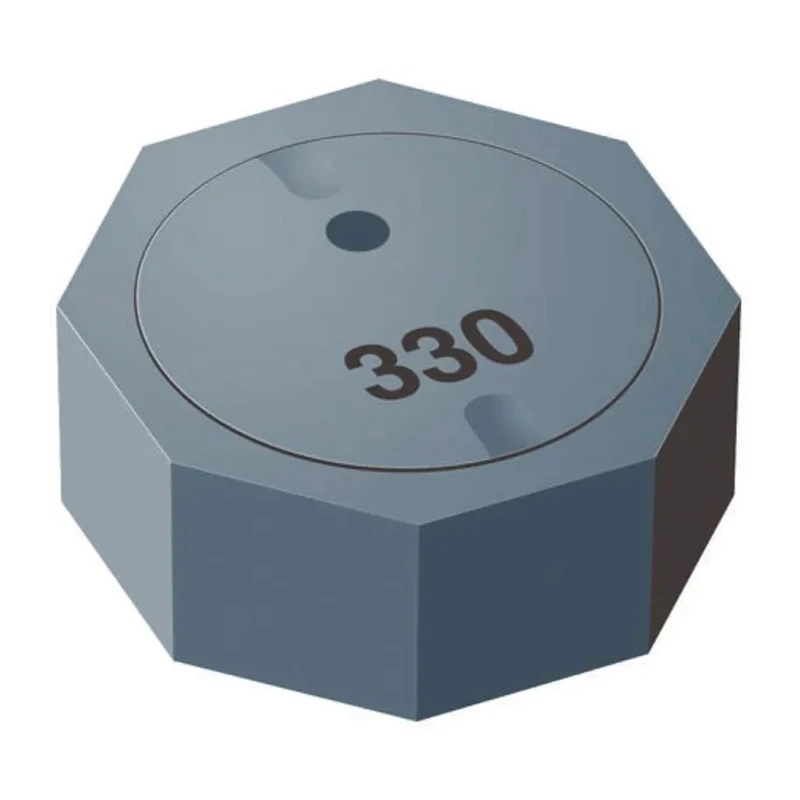

Bourns Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±30% 4.5A DC Current Q:26 SRU1048
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 4.8mm |
| Length | 10mm |
| Model | SRU1048 |
| Depth | 10mm |
| Packaging | Reel |
| Series | SRU1048 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 1048 |
| Maximum DC Current | 4.5A |
| Maximum DC Resistance | 18.5mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 16MHz |
| Minimum Quality Factor | 26 |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded wire wound construction reduces EMI.
- Low profile with 4.8 mm height and 10 mm length and depth dimensions.
- High current rating suitable for DC/DC converters and EMI filters.
- Ferrite core provides excellent magnetic performance and durability.
- Inductance tolerance of ±30% with a minimum quality factor of 26.
- Maximum DC resistance of 18.5 mΩ ensures low power loss.
- Operating temperature range from -40°C to 125°C for reliable performance.
- RoHS compliant with surface mount termination style on reel packaging.
Product Description
Bourns SRU1048 shielded wirewound surface mount inductor with ferrite core delivers a 10 μH inductance with ±30% tolerance and supports 4.5 A maximum DC current. This wirewound inductor is designed with a magnetically shielded construction to minimize electromagnetic interference, making it suitable for high-frequency applications.
The compact package dimensions are 10 mm length, 10 mm depth, and 4.8 mm height providing a low profile. Its ferrite core ensures efficient magnetic performance and the component is moulded for added durability. Operating temperature spans from -40°C to 125°C to maintain reliability across diverse conditions.
This component features a maximum DC resistance of 18.5 milliohms, promoting efficient current flow with minimal losses. The minimum quality factor of 26 reflects its effectiveness at resonant frequencies up to 16 MHz. It is RoHS compliant and supplied on reels for automated assembly in high-volume manufacturing.
Ideal industrial and commercial applications include DC/DC power converters, EMI filtering circuits, and other high-frequency electronic designs requiring robust inductors with magnetic shielding.
Magnetically shielded wire wound construction reduces EMI. Compact 1048 package with low profile dimensions. Ferrite core material enhances magnetic efficiency. Wide operating temperature from -40°C to 125°C. Maximum self resonant frequency of 16 MHz.
Surface mount termination style for automated PCB assembly. High current rating of 4.5 A suitable for power circuits. Explore more Surface Mount Inductors and other electronic components on EnvMart for advanced industrial and electronic manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 μH with an inductance tolerance of ±30%.
The maximum DC current rating for this inductor is 4.5 A.
The dimensions of this inductor are 10 mm in length, 10 mm in depth, and 4.8 mm in height.
It can operate at a maximum temperature of 125°C.
The minimum quality factor is 26, indicating its effectiveness at resonant frequencies.
The inductor features a ferrite core, which enhances its magnetic performance.
The maximum DC resistance is 18.5 mΩ, which helps in reducing power loss.
The maximum self-resonant frequency is 16 MHz, suitable for high-frequency applications.
It features a surface mount termination style, making it suitable for automated assembly.
Yes, this model is RoHS compliant, ensuring it meets environmental standards.
This inductor is suitable for DC/DC converters, EMI filtering circuits, and other high-frequency electronic designs.
The country of origin for this inductor is India.
