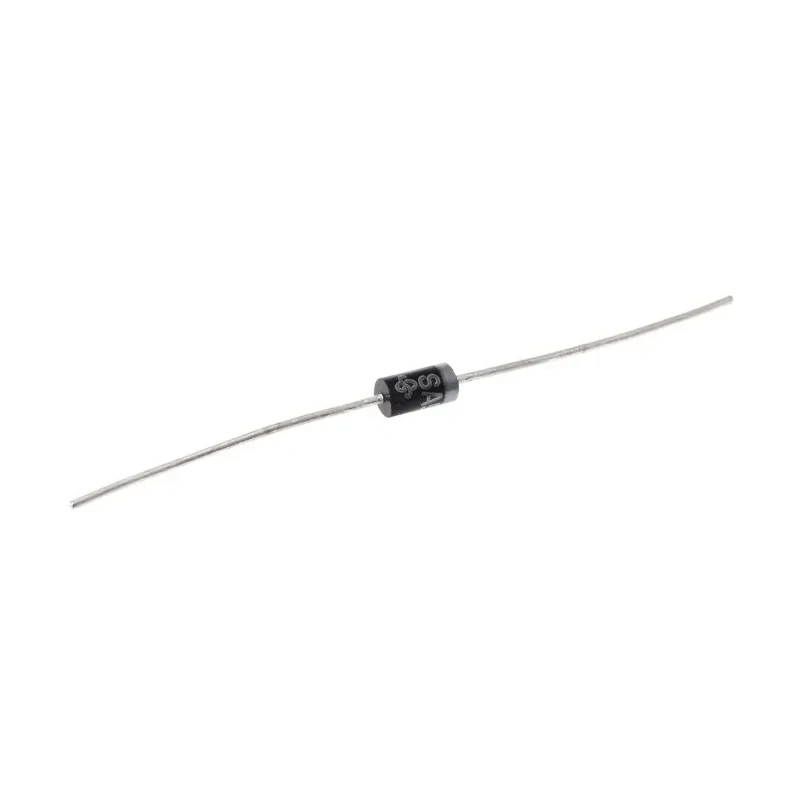

Vishay 1-Element Uni-Directional TVS Diode 500 W 2-Pin DO-15 SA5.0A-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.3mm |
| Brand | Vishay |
| Height | 3.6mm |
| Length | 7.6mm |
| Model | SA5.0A-E3/54 |
| Width | 3.6mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.2V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 500W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 54.3A |
| Maximum Reverse Leakage Current | 600μA |
Key Features
- Uni-directional diode configuration ensures reliable surge protection.
- 500 W peak pulse power dissipation capability for high energy absorption.
- Operating temperature ranges from -55°C to 175°C for harsh environments.
- Compact DO-15 through-hole package measuring 7.6mm length and 3.6mm diameter.
- Low clamping voltage of 9.2 V provides effective voltage suppression.
- Complies with automotive standard AEC-Q101 for automotive electronics.
- ESD protection included to safeguard sensitive components.
- Maximum peak pulse current rating of 54.3 A supports transient surges.
Product Description
Vishay SA5.0A-E3/54 1-Element Uni-Directional TVS Diode is a high-performance transient voltage suppressor rated at 500 W peak pulse power dissipation. Featuring a 2-pin DO-15 through-hole package, this diode offers robust protection for circuits against voltage spikes and surges.
The uni-directional diode configuration is optimized for single polarity transient suppression, suitable for automotive, industrial, and electronic applications requiring reliable voltage transient protection.
It operates effectively across a broad temperature range from -55°C to 175°C, meeting stringent automotive standard AEC-Q101 for usage in automotive electronics. The device is designed with a 6.4 V minimum breakdown voltage and a clamping voltage of 9.2 V to maintain circuit integrity during transient events.
The compact dimensions of 7.6 mm length, 3.6 mm width, and 3.3 mm diameter facilitate easy PCB mounting while the 2-pin configuration supports through-hole mounting styles. Uni-directional diode configuration ensures reliable surge protection.
500 W peak pulse power dissipation capability for high energy absorption. Operating temperature ranges from -55°C to 175°C for harsh environments. Compact DO-15 through-hole package measuring 7.6mm length and 3.6mm diameter.
Low clamping voltage of 9.2 V provides effective voltage suppression. Complies with automotive standard AEC-Q101 for automotive electronics. ESD protection included to safeguard sensitive components. Maximum peak pulse current rating of 54.3 A supports transient surges.
Designed for use in industrial, automotive, and electronic component applications. High reliability single element design for consistent performance.
This TVS Diode is ideal for protecting electronics in industrial equipment, automotive systems, power supplies, and other electronic devices where transient voltage spikes can cause damage. Its certified automotive rating further ensures suitability for rugged automotive environments. Choose Vishay SA5.0A-E3/54 for efficient, dependable voltage surge protection in demanding applications.
Explore more Vishay semiconductor products and protection devices in the Electronics & Electricals category at EnvMart for your industrial, automotive, and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SA5.0A-E3/54 has a peak pulse power dissipation capability of 500 W, allowing it to absorb high energy transients effectively.
This unit operates effectively within a temperature range of -55°C to 175°C, making it suitable for harsh environments.
The DO-15 package of this diode measures 7.6 mm in length and 3.6 mm in diameter, facilitating easy PCB mounting.
The clamping voltage for the Vishay SA5.0A-E3/54 is 9.2 V, which provides effective voltage suppression during transient events.
This model complies with the automotive standard AEC-Q101, ensuring its suitability for automotive electronics applications.
The maximum peak pulse current rating for this diode is 54.3 A, supporting transient surges effectively.
The Vishay SA5.0A-E3/54 features a 2-pin configuration, designed for through-hole mounting.
The minimum breakdown voltage for this TVS diode is 6.4 V, which helps maintain circuit integrity during transients.
This diode uses a uni-directional configuration, optimized for single polarity transient suppression.
The maximum reverse stand-off voltage for this diode is 5 V, which is crucial for its operation in voltage spike protection.
This model is designed for use in automotive, industrial, and electronic applications requiring reliable voltage transient protection.
The Vishay SA5.0A-E3/54 is manufactured in India.
