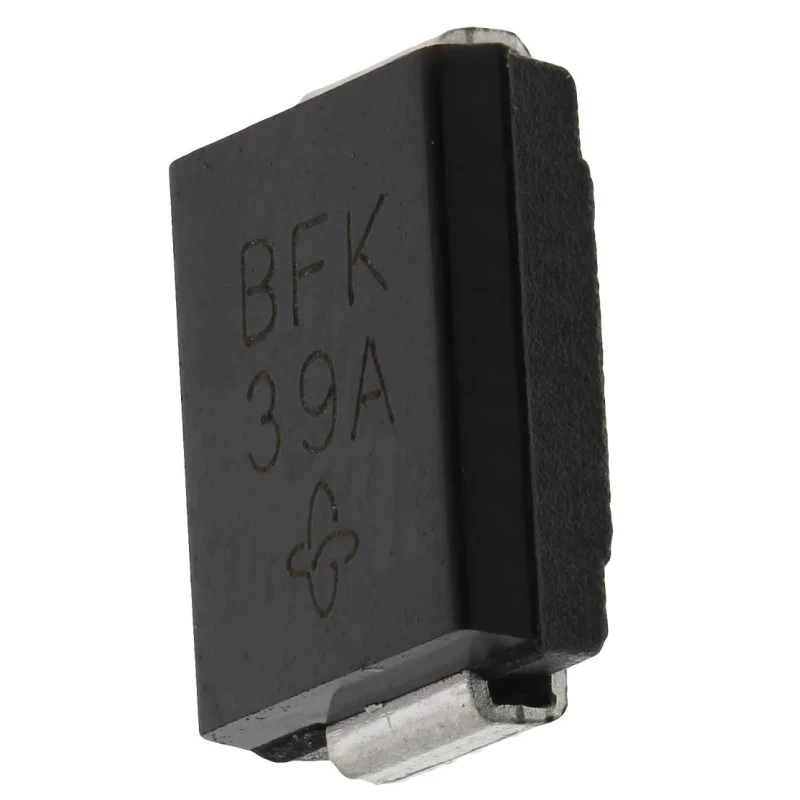

Vishay 1-Element Bi-Directional TVS Diode, 1.5 kW, 2-Pin SMC, Surface Mount SMCJ30CA-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ30CA-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 48.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 33.3V |
| Maximum Reverse Stand-off Voltage Vwm | 30V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 31A |
| Maximum Reverse Leakage Current | 1μA |
| Vishay 1-Element Bi-Directional TVS Diode, 1.5 kW, 2-Pin SMCBrand | Vishay |
Key Features
- Features a single diode configuration with bi-directional protection.
- Minimum breakdown voltage of 33.3 V and maximum reverse stand-off voltage of 30 V.
- Clamping voltage is rated at 48.4 V for reliable surge suppression.
- Operates reliably between -55°C to 150°C for harsh environments.
- Offers electrostatic discharge (ESD) protection compliant with AEC-Q101 automotive standard.
- Maximum peak pulse current rating is 31 A with low leakage current of 1 μA.
- Ideal for protecting sensitive electronics in automotive and industrial applications.
Product Description
Vishay SMCJ30CA-E3/57T is a 1-Element Bi-Directional Transient Voltage Suppressor (TVS) Diode designed for surface mount applications in the SMC package. It provides peak pulse power dissipation of 1.5 kW, effectively protecting circuits against voltage spikes and transients caused by electrostatic discharge, lightning, or switching events.
This TVS diode features a single diode configuration with bi-directional polarity, offering symmetrical clamping for both positive and negative surges. Its minimum breakdown voltage is rated at 33.3 V, while the maximum reverse stand-off voltage is 30 V, making it suitable for circuits requiring precise voltage protection levels.
The device operates within a wide temperature range from -55°C to 150°C, ensuring reliability in industrial, automotive, and harsh environmental conditions. The diode's maximum peak pulse current is 31 A with minimal leakage current of only 1 μA at maximum rated voltage, preserving energy efficiency and circuit integrity.
Its compact dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height allow for space-efficient PCB designs. Compliant with the AEC-Q101 automotive standard, this TVS diode is well suited for automotive electronics, industrial machinery, power supplies, and communication devices requiring transient overvoltage protection.
The surface mount SMC package simplifies automated assembly for volume production. This TVS Diode is a reliable choice for transient voltage suppression to extend electronic component lifespan and improve system robustness.
Single-element bi-directional diode for symmetrical transient suppression. Peak pulse power dissipation of 1.5 kW to handle high energy surges. Low leakage current enhances circuit performance and efficiency. Compliance with automotive standard AEC-Q101 ensures quality and reliability.
Compact SMC package supports modern PCB assembly processes. Wide operating temperature range for industrial and automotive use. Provides effective ESD protection to sensitive electronic components. Explore Vishay products and related electronic components at EnvMart for your industrial and automotive circuit protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay SMCJ30CA-E3/57T is rated at 1.5 kW, allowing it to handle high energy surges effectively.
The minimum breakdown voltage of this diode is rated at 33.3 V, providing precise voltage protection levels for circuits.
The maximum reverse stand-off voltage for this TVS diode is 30 V, ensuring it operates safely within specified limits.
The clamping voltage is rated at 48.4 V, which is important for reliable surge suppression in electronic circuits.
This model has a maximum peak pulse current rating of 31 A, which helps in protecting sensitive electronics from voltage spikes.
It operates reliably between -55°C to 150°C, making it suitable for harsh industrial and automotive environments.
The Vishay SMCJ30CA-E3/57T is designed for surface mounting, which simplifies automated assembly processes.
This diode has compact dimensions of 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, allowing for space-efficient PCB designs.
It complies with the AEC-Q101 automotive standard, ensuring quality and reliability for automotive applications.
The SMCJ30CA-E3/57T features a single-element configuration, providing bi-directional transient suppression.
The maximum reverse leakage current is specified at 1 μA, which contributes to energy efficiency and circuit integrity.
This TVS diode is suitable for protecting sensitive electronics in automotive and industrial applications, particularly against voltage spikes and transients.
