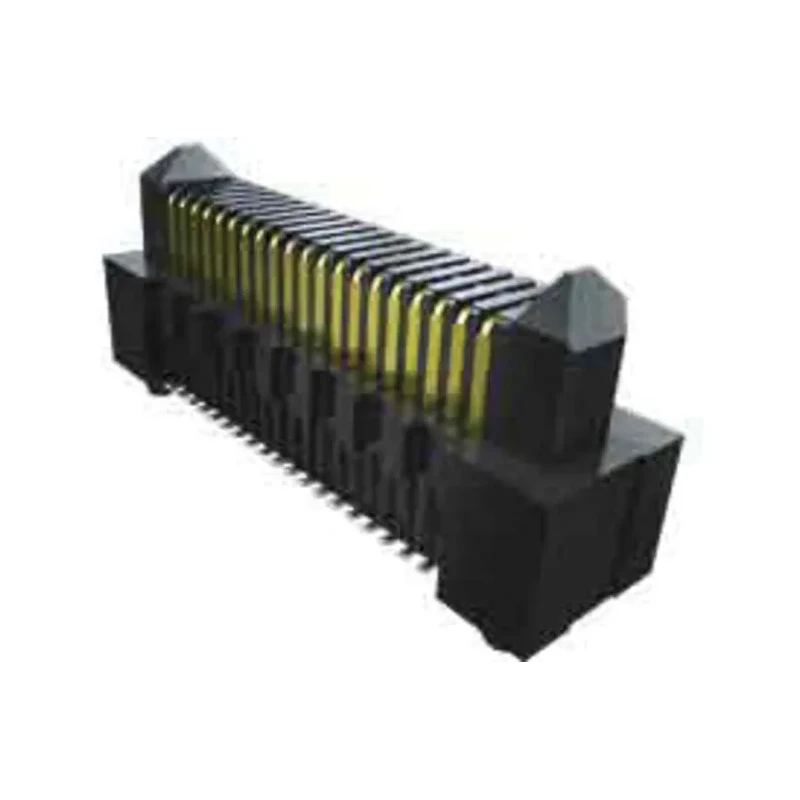

Samtec ERM8 Series Straight Surface PCB Header 40 Contacts 0.8 mm Pitch 2 Row Shrouded

Samtec ERM8-020-05.0-L-DV-TR is a high-quality Straight Surface PCB Header designed for advanced electronic component assembly with 40 contacts arranged in 2 rows at a 0.8 mm pitch. This shrouded connector system facilitates reliable wire-to-board connections, enhancing the performance of electronic circuits.

The housing is crafted from liquid crystal polymer, providing excellent durability, electrical insulation, and heat resistance. The contacts are made of phosphor bronze and plated with gold, ensuring low resistance and long-lasting wear. The rugged Edge Rate® contact design with a smooth broad milled surface extends connector lifespan by reducing wear during mating cycles.

This PCB header supports continuous current of up to 2.2 A and withstands voltages up to 318 V, making it suitable for various industrial, laboratory, and commercial electronic applications. It functions reliably within a broad temperature range of -55°C to 125°C, compatible with harsh environments.

The connector features solder termination with male contacts, facilitating secure mounting on printed circuit boards with surface mount technology. Its shrouded configuration enhances safety by preventing accidental electrical shorts, while the straight orientation supports compact board designs. Stack height is adjustable between 7 mm and 16 mm to accommodate different assembly requirements.

Rugged Edge Rate® contact with smooth milled surface enhances electrical contact and wear resistance. Phosphor bronze contact material with gold plating for durability and excellent conductivity. Housing made from liquid crystal polymer ensures high thermal and electrical insulation properties.

Supports a maximum current of 2.2 A and voltage of 318 V suited for demanding electronic environments. Operating temperature range from -55°C to 125°C guarantees performance under temperature extremes. Solder termination type supports reliable surface mount PCB assembly with male contact gender.

Shrouded, 2-row design with 40 contacts and 0.8 mm pitch for compact and safe PCB connections. Stack height from 7 mm to 16 mm allows design flexibility across applications. Suitable for industrial, laboratory, manufacturing, HVAC, telecommunications, and commercial electronic uses.

This Samtec PCB header is ideal for engineers and manufacturers seeking dependable, high-performance connectors for electronic devices and systems. Explore more PCB Headers in the Electronics & Electricals category at EnvMart for comprehensive solutions.
