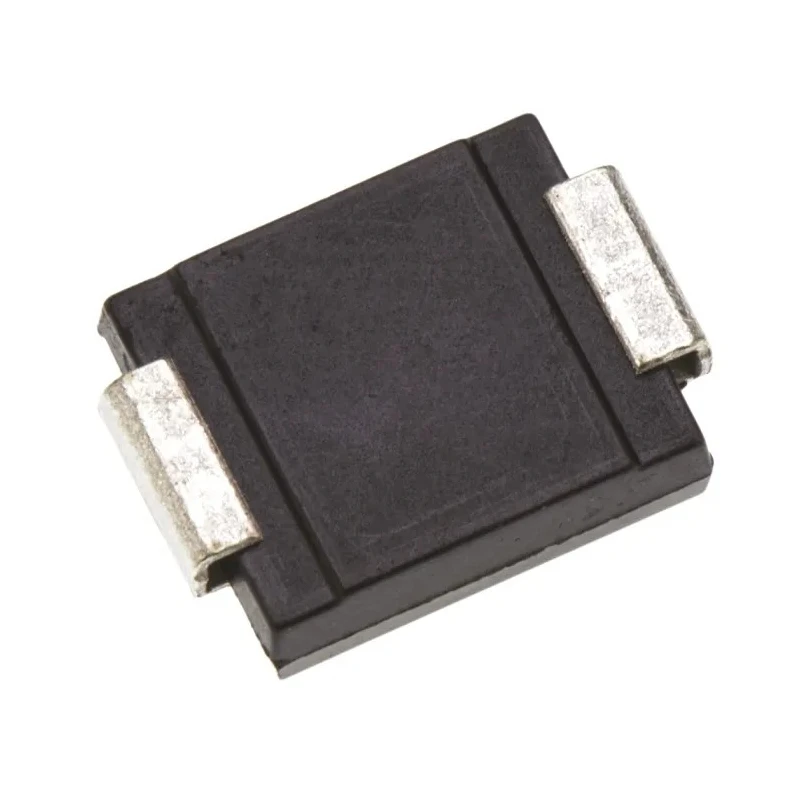

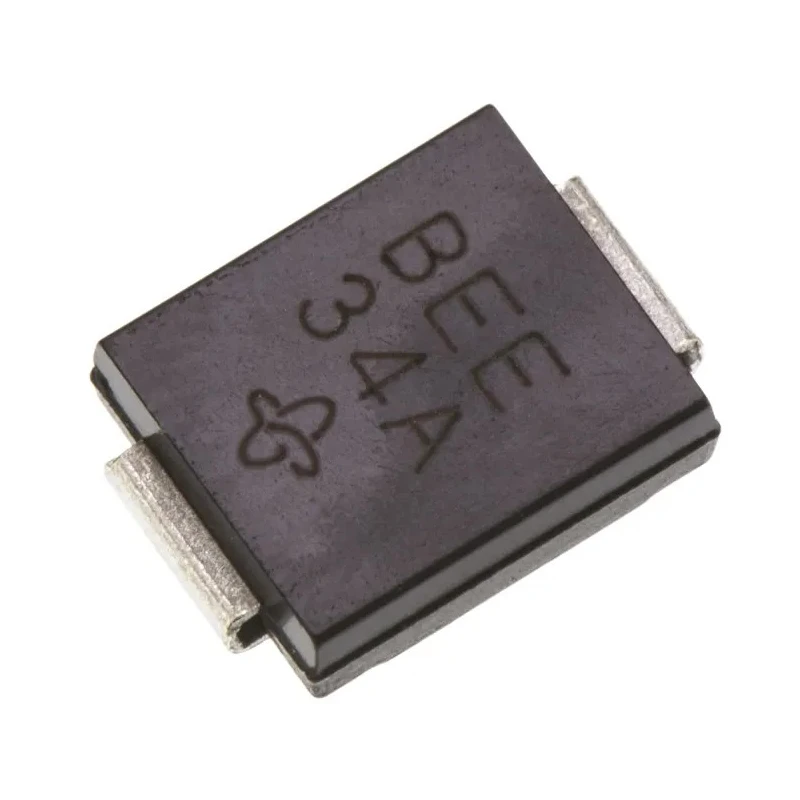

Vishay 1-Element Bi-Directional TVS Diode 1.5 kW Surface Mount SMC Package SMCJ12CA-E3

Vishay SMCJ12CA-E3 is a 1-Element Bi-Directional Transient Voltage Suppressor (TVS) diode designed for robust protection of sensitive electronic circuits against voltage spikes and transient events. Packing 1.5 kW peak pulse power dissipation into a compact 2-pin SMC package, it is ideal for surface mount technology (SMT) assemblies in a variety of applications.

This TVS diode features a bi-directional configuration which enables symmetric protection for both positive and negative voltage transients. The diode’s minimum breakdown voltage is 13.3 V and it supports a maximum reverse stand-off voltage of 12 V. It clamps transient voltages at 19.9 V to safeguard downstream components effectively.

With an operating temperature range from -55°C to 150°C, the device is suitable for harsh industrial and automotive environments. It carries the AEC-Q101 automotive standard certification, confirming its suitability for automotive electronics requiring high reliability and stringent quality standards.

The diode package measures 7.11 mm length, 6.22 mm width, and 2.42 mm height, making it compatible with dense PCB layouts. It supports a test current of 1 mA and can handle a maximum peak pulse current of 75.4 A, ensuring superior transient suppression capability.

This TVS diode is ideal for applications including power supplies, telecommunications, automotive electronics, industrial control systems, and other environments where protection against electrostatic discharge (ESD) and transient voltage surges is critical. Its robust design helps improve system reliability and longevity across diverse manufacturing and commercial sectors.

Delivers 1.5 kW peak pulse power dissipation for transient voltage suppression. Features a bi-directional diode configuration supporting protection in both directions. Compact surface mount SMC package with dimensions 7.11 mm length and 6.22 mm width.

Minimum breakdown voltage of 13.3 V and maximum stand-off voltage of 12 V ensure reliable operation. Operates over a wide temperature range from -55°C to 150°C. Provides a clamping voltage of 19.9 V for effective voltage spike suppression.

Supports a maximum peak pulse current of 75.4 A and includes ESD protection. Complies with Automotive Standard AEC-Q101, ensuring durability in automotive environments. Single element per chip design enhances precise transient suppression performance.
