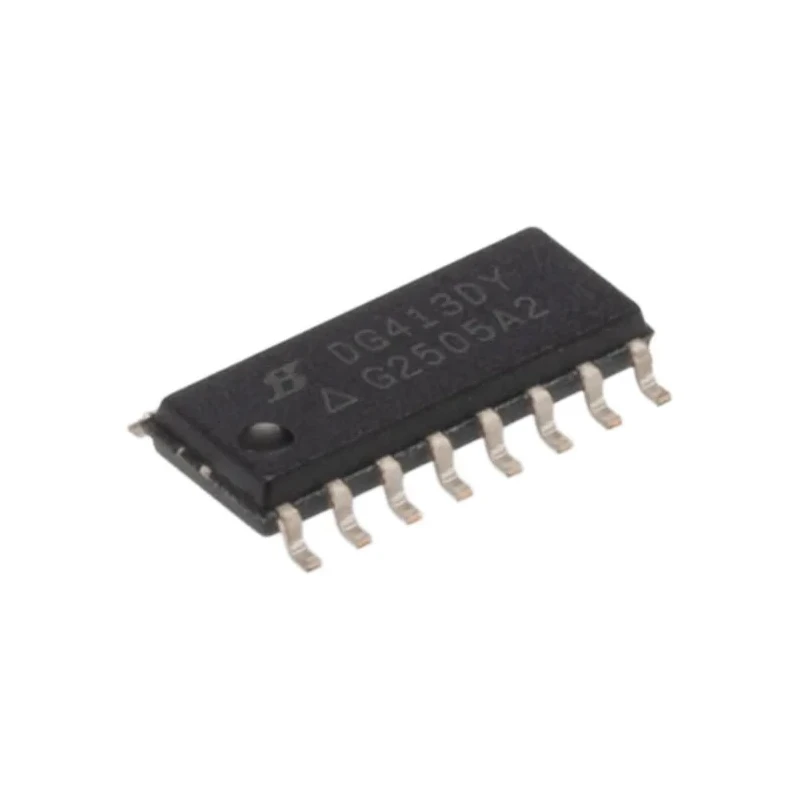

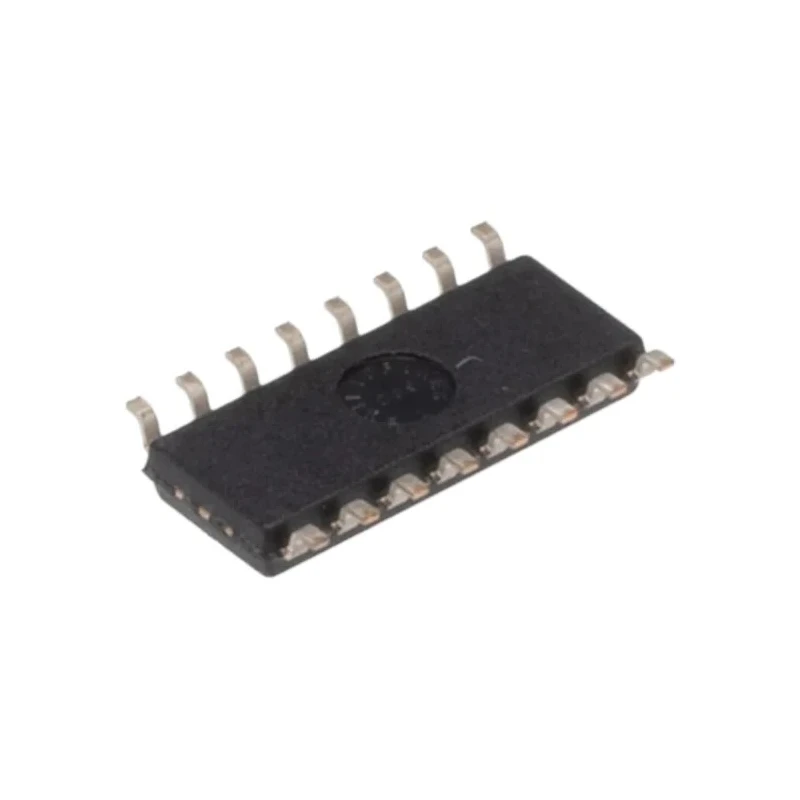

Vishay DG413DY-E3 Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC 5V to 44V Supply DG413DY-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG413DY-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG413 |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 44V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 5V |
| Maximum On State Resistance | 100Ω |
| DG413DY Vishay, Multiplexer Quad SPST, 15 V, 18 V, 24 V, 28 V, 16-Pin SOICBrand | Vishay |
Key Features
- Compatible with CMOS and TTL logic output levels for easy interfacing.
- Features four independent single-pole single-throw switches in one IC.
- Maximum on-state resistance of 100Ω maintains signal integrity.
- Surface-mount SOIC package with 16 pins for compact PCB layouts.
- Wide operating temperature range from -40°C to 85°C supports industrial applications.
- RoHS-compliant manufacturing ensures environmental safety.
- Designed for multiplexing analogue sensor outputs and switching audio paths.
- Suitable for control signal routing in measurement and mixed-signal test systems.
Product Description
Vishay DG413DY-E3 Analogue Switch is a quad CMOS 4-channel single-pole single-throw device designed for versatile analogue and digital signal routing in mixed-signal systems. Operating from a minimum supply voltage of 5V up to a maximum of 44V, it provides flexible power options suitable for a wide range of industrial and laboratory electronic applications.
The device features compatibility with both CMOS and TTL logic outputs, allowing seamless integration with commonly used logic families. Its maximum on-state resistance of 100Ω ensures low signal distortion and good conduction performance. Packaged in a compact 16-pin SOIC surface-mount form factor measuring 10mm length, 4mm width, and 1.55mm height, it supports space-saving PCB assembly.
Typical use cases include multiplexing analogue sensor outputs, switching audio signals in consumer electronics, routing control lines in precision measurement equipment, and various forms of mixed-signal channel selection. The DG413DY-E3's operating temperature range from -40°C to 85°C suits many industrial ambient conditions. Despite its versatility, it is not approved for automotive usage and should not be implemented in certified automotive systems.
Compatible with CMOS and TTL logic inputs for easy control interfacing. Four independent SPST switch elements enable multiple signal channels. Low on-state resistance maintains signal quality during switching. Compact 16-pin SOIC package for optimized board space utilization.
Wide supply voltage range from 5V to 44V allows flexible power options. RoHS-compliant to meet environmental safety standards. Wide operating temperature range supports industrial applications. Ideal for audio, sensor multiplexing, control signals, and test equipment use.
Not intended for automotive applications due to lack of certification. Supports compact PCB assembly and effective signal isolation.
This Vishay semiconductor product provides a reliable solution for electronic design engineers requiring flexible analogue switching capabilities in compact form factors. Browse other semiconductor components and multiplexer ICs at EnvMart for complementary solutions.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 44V.
The maximum on-state resistance is 100Ω, which helps maintain signal integrity.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
This model features four independent single-pole single-throw (SPST) switches.
It is compatible with both CMOS and TTL logic output levels for easy interfacing.
The device has a length of 10mm, a width of 4mm, and a height of 1.55mm.
It comes in a surface-mount SOIC package with 16 pins.
Yes, it is RoHS-compliant, ensuring it meets environmental safety standards.
It is designed for multiplexing analogue sensor outputs, switching audio paths, and control signal routing in measurement systems.
The minimum supply voltage required for operation is 5V.
No, this model is not approved for automotive usage and should not be implemented in certified automotive systems.
The configuration consists of a quad SPST arrangement, allowing multiple signal channels.
