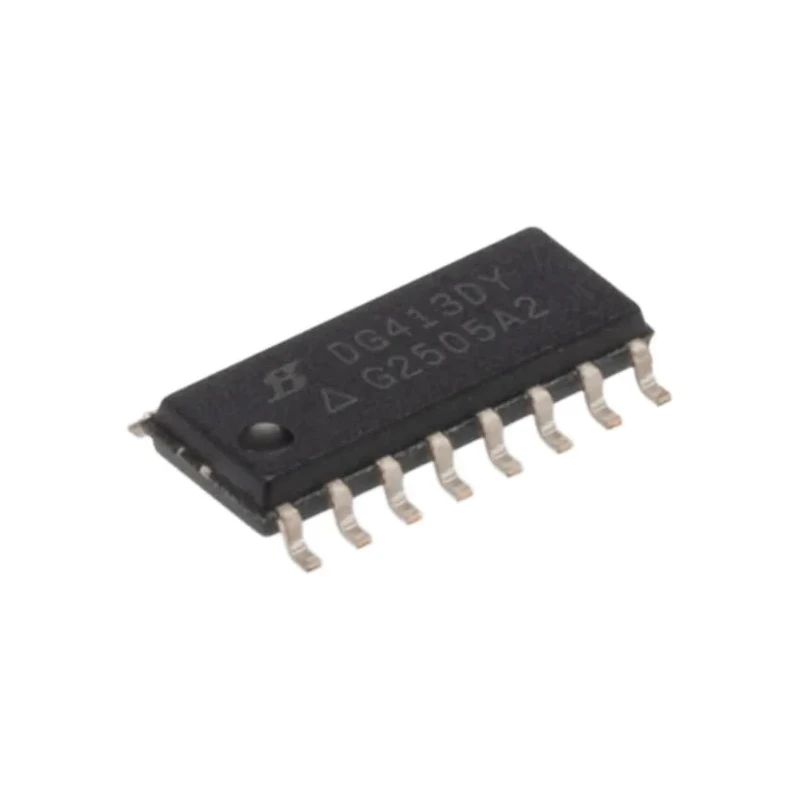

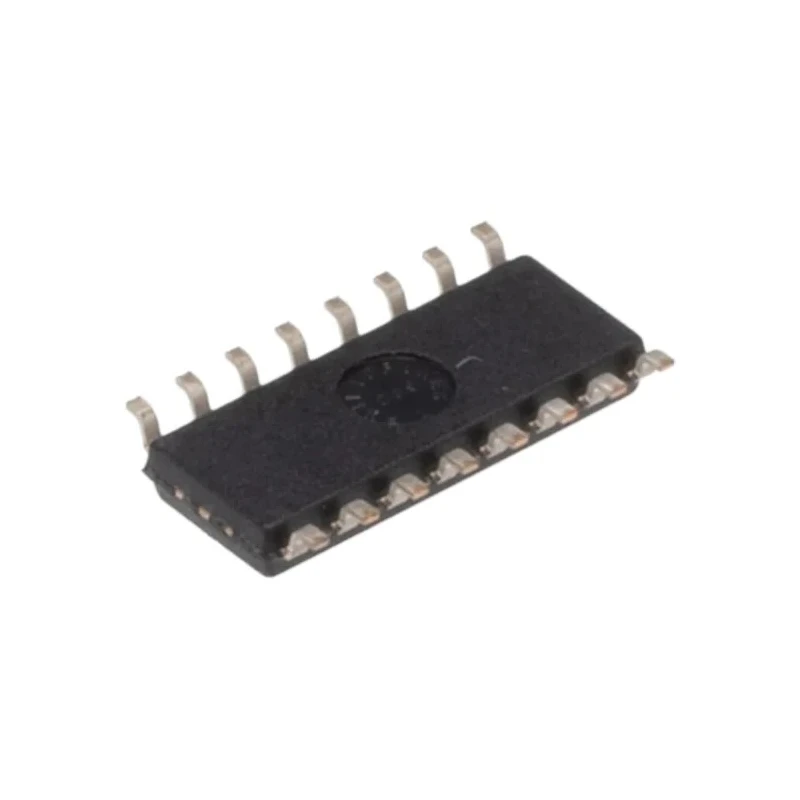

Vishay Analog Switch 4-Element CMOS Quad SPST 16-Pin SOIC DG413DY-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG413DY-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG413 |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 44V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 5V |
| Maximum On State Resistance | 100Ω |
Key Features
- Operates efficiently within a 5V to 44V supply voltage range.
- Four independent single-pole single-throw switches on one chip enable multi-channel routing.
- Compatible with standard CMOS and TTL logic levels for simple interfacing.
- Maximum on-state resistance of 100 ohms ensures good signal conduction.
- Compact 16-pin SOIC surface-mount package supports small PCB layouts.
- Suitable for analogue sensor multiplexing and signal routing in mixed-signal systems.
- Ideal for switching audio paths in consumer electronics devices.
- Reliable performance across industrial temperature ranges from -40°C to 85°C.
Product Description
Vishay DG413DY-E3 is a 4-element analogue switch featuring CMOS quad single-pole single-throw (SPST) architecture in a compact 16-pin SOIC surface-mount package.
Designed to operate with a wide supply voltage from 5V to 44V, it provides versatile signalling flexibility with compatibility for both CMOS and TTL logic families, which simplifies its integration with standard control circuitry.
The device offers a maximum on-state resistance of 100 ohms, maintaining low signal loss when switching analogue or digital signals. Its four independent switches allow simultaneous multi-channel routing, ideal for complex circuit designs requiring multiplexing.
The analog switch functions reliably across a broad operating temperature range from -40°C to 85°C, covering typical industrial environments. It is RoHS compliant, ensuring adherence to environmental regulations.
Operates from 5V to 44V supply voltage for application flexibility. Four independent quad SPST switch elements for multiple channel control. Designed for surface-mount assembly in a space-saving 16-pin SOIC package. Compatible with CMOS and TTL logic levels for easy system integration.
Low on-state resistance of 100Ω for efficient signal conduction. Industrial temperature rating from -40°C to +85°C ensures robustness. RoHS compliant to meet environmental directives. Ideal for multiplexing analogue sensor outputs and audio signal switching.
Typically used in mixed-signal test equipment and measurement systems. Not recommended for automotive applications due to lack of automotive certification.
This component suits industrial, laboratory, consumer electronics, and instrumentation applications requiring reliable analogue switching and multiplexing capabilities. The compact SOIC package makes it well-suited for PCB designs with limited board space.
Browse more semiconductor and multiplexer components on EnvMart for advanced signal routing solutions from Vishay and other leading manufacturers.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently within a supply voltage range of 5V to 44V.
It features four independent single-pole single-throw (SPST) switches on one chip.
The maximum on-state resistance is 100 ohms, ensuring good signal conduction.
It is compatible with standard CMOS and TTL logic levels for simple interfacing.
The dimensions are 10mm in length, 4mm in width, and 1.55mm in height.
It functions reliably across an industrial temperature range from -40°C to 85°C.
This component is housed in a compact 16-pin SOIC surface-mount package.
Yes, it is RoHS compliant, ensuring adherence to environmental regulations.
It is suitable for multiplexing analogue sensor outputs and audio signal switching in mixed-signal systems.
This model has a pin count of 16.
The output type is compatible with CMOS and TTL logic families.
It belongs to the DG413 series of analog switches.
