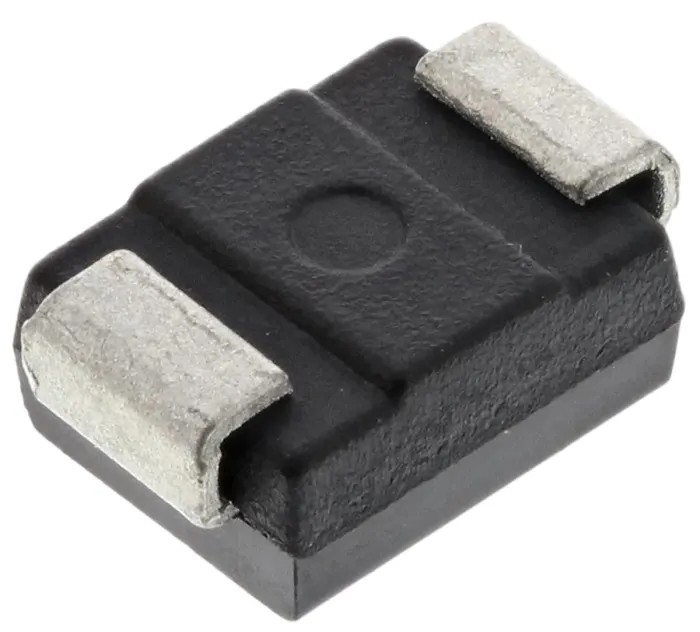

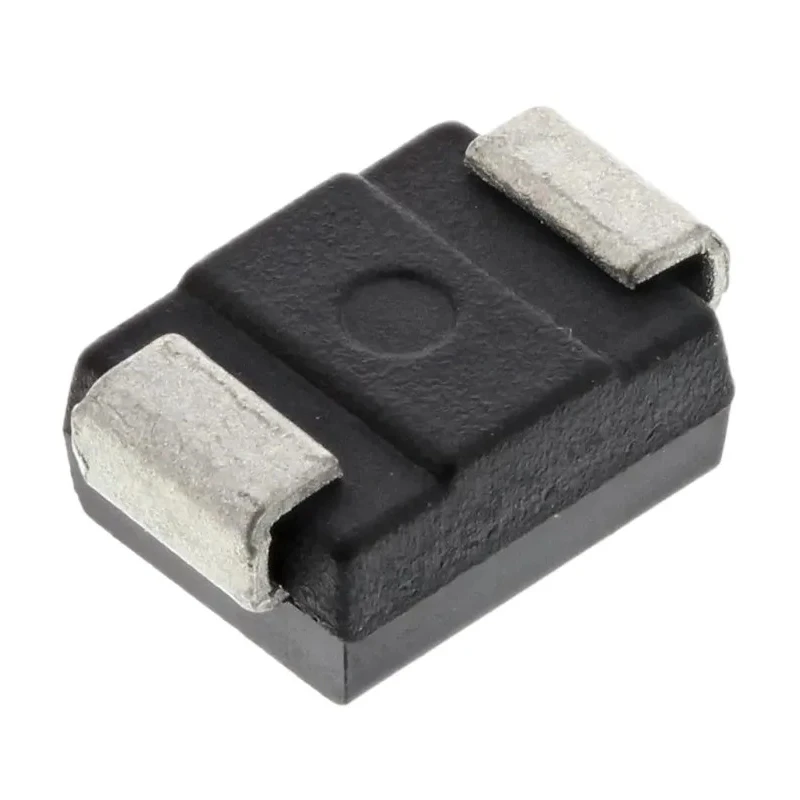

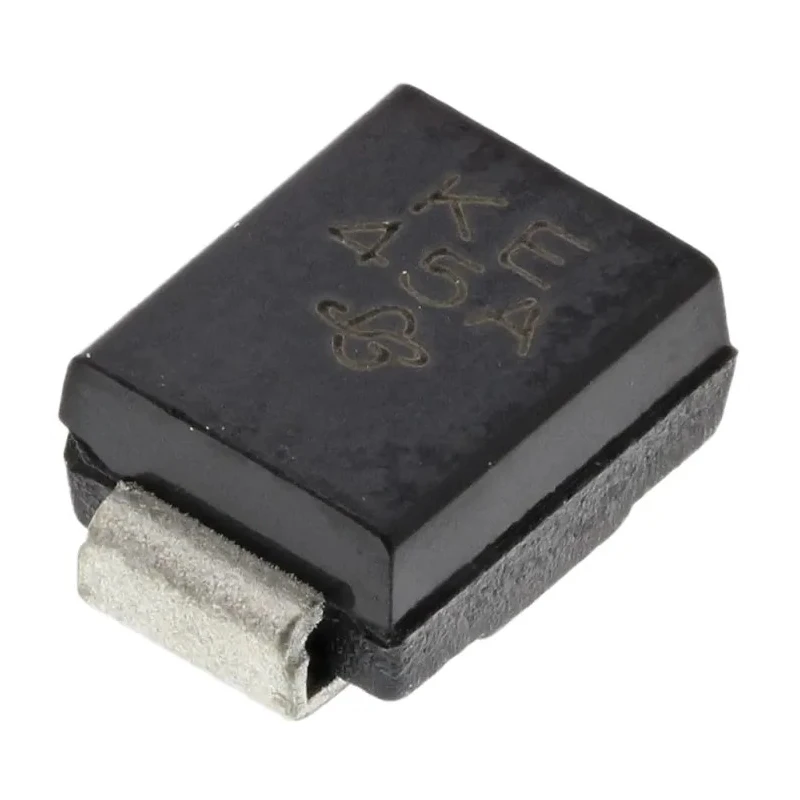

Vishay 1-Element Bi-Directional TVS Diode, 600 W, 2-Pin, Surface Mount, DO-214 Package SMBJ5.0CA-E3/52
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | SMBJ5.0CA-E3/52 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.2V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 65.2A |
| Maximum Reverse Leakage Current | 1.6mA |
| Vishay SMBJ5.0CA, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AABrand | Vishay |
Key Features
- Single diode configuration providing bi-directional transient voltage suppression.
- 600 W peak pulse power dissipation ensures robust surge protection.
- Surface mount DO-214 package with 2 pins for ease of PCB assembly.
- Minimum breakdown voltage of 6.4 V and maximum reverse stand-off voltage of 5 V.
- Clamping voltage rated at 9.2 V for efficient voltage spike control.
- Operates in a temperature range from -55°C to 150°C for reliability.
- Test current of 10 mA and maximum peak pulse current of 65.2 A.
- Complies with AEC-Q101 automotive standard for quality assurance.
Product Description
Vishay SMBJ5.0CA-E3/52 is a high-performance 1-element bi-directional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. It offers 600 W peak pulse power dissipation to protect sensitive electronic circuits against transient voltage surges. Packaged in a compact DO-214 surface mount format with 2 pins, this TVS diode ensures reliable transient voltage suppression in a variety of industrial, automotive, and electronic applications.
This device features a single diode configuration with bi-directional voltage suppression, capable of handling large current spikes with a maximum peak pulse current of 65.2 A. The diode has a minimum breakdown voltage of 6.4 V and a maximum reverse stand-off voltage of 5 V, providing excellent protection in transient voltage environments. Its clamping voltage rating of 9.2 V ensures rapid response to voltage spikes, minimizing system damage.
The Vishay SMBJ5.0CA-E3/52 operates reliably in harsh conditions with an operating temperature range from -55°C to 150°C and a very low maximum reverse leakage current of 1.6 mA. It complies with the AEC-Q101 automotive standard, making it suitable for automotive and industrial use.
Single bi-directional diode configuration for transient voltage suppression. Peak pulse power dissipation of 600 W provides robust surge protection. Compact surface mount DO-214 package with two pins for easy integration.
Minimum breakdown voltage of 6.4 V and maximum stand-off voltage of 5 V. Low leakage current maximizes device efficiency and longevity. Automotive standard AEC-Q101 compliance ensures reliable automotive applications. Wide operating temperature range from -55°C to 150°C.
Compact dimensions of 4.57 mm (L) x 3.94 mm (W) x 2.24 mm (H). Very fast response time to transient events protects sensitive electronics. Ideal for industrial, automotive systems, and power supply protection.
This TVS diode is widely applicable in industrial, automotive electronics, power supplies, and general electronic circuit protection where transient voltage suppression is critical to prevent damage from voltage spikes and surges. Choose Vishay for dependable circuit protection components.
Explore more TVS Diodes and semiconductor components in the Electronics & Electricals category at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SMBJ5.0CA-E3/52 has a peak pulse power dissipation of 600 W, providing robust surge protection for sensitive electronic circuits.
The maximum reverse stand-off voltage for this diode is 5 V, ensuring effective protection against voltage spikes.
The clamping voltage is rated at 9.2 V, which helps control voltage spikes efficiently.
This model operates reliably within a temperature range of -55°C to 150°C, suitable for harsh conditions.
The diode comes in a 2-pin configuration, designed for surface mount applications.
It can handle a maximum peak pulse current of 65.2 A, making it capable of managing large current spikes.
The minimum breakdown voltage is 6.4 V, providing effective transient voltage suppression.
Yes, it complies with the AEC-Q101 automotive standard, ensuring quality assurance for automotive applications.
The maximum reverse leakage current is 1.6 mA, which helps maximize device efficiency.
The dimensions are 4.57 mm (length) x 3.94 mm (width) x 2.24 mm (height).
It features a single diode configuration that provides bi-directional transient voltage suppression.
This TVS diode is suitable for industrial, automotive electronics, power supplies, and general electronic circuit protection.
