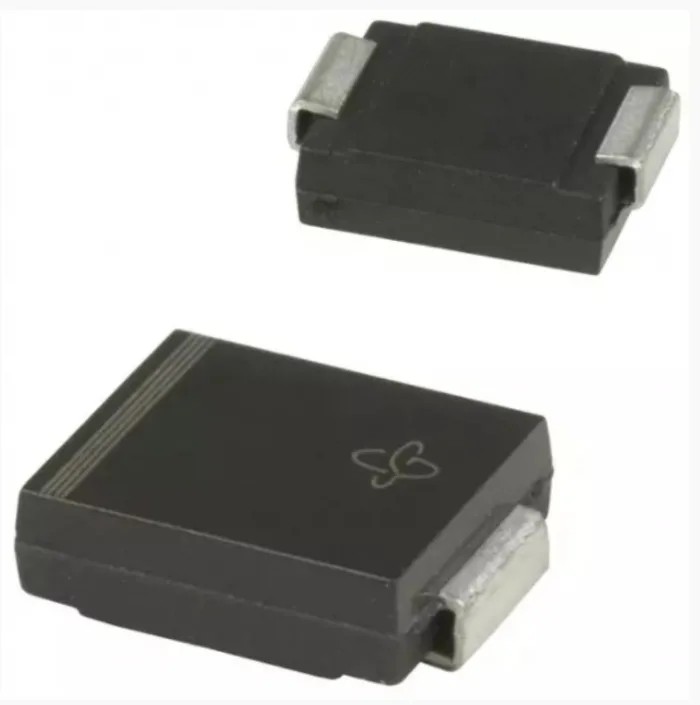

Vishay 1-Element Uni-Directional TVS Diode Surface Mount 1.5 kW 2-Pin SMC SMCJ33A-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ33A-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 53.3V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 36.7V |
| Maximum Reverse Stand-off Voltage Vwm | 33V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 28.1A |
| Maximum Reverse Leakage Current | 1μA |
| Magnatec SMCJ33A, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214ABBrand | Magnatec |
Key Features
- Single diode configuration with uni-directional operation for effective voltage transient protection.
- Surface mount package type SMC with 2-pin configuration for easy PCB assembly.
- Maximum reverse standoff voltage of 33 V and minimum breakdown voltage of 36.7 V ensures robust performance.
- Clamping voltage of 53.3 V for reliable protection during voltage surges.
- Operating temperature range from -55°C to 150°C for versatile use in harsh environments.
- Rated peak pulse current of 28.1 A and test current of 1 mA for precise transient response.
- Complies with automotive standard AEC-Q101 ensuring automotive reliability.
Product Description
Vishay SMCJ33A-E3/57T is a high-performance 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic circuits from voltage spikes and transients. With a peak pulse power dissipation of 1.5 kW, this device provides excellent surge protection in industrial, automotive, and consumer electronic applications. Its surface mount SMC package ensures compact integration and ease of assembly on printed circuit boards.
The diode features a minimum breakdown voltage of 36.7 V and a maximum reverse standoff voltage of 33 V, allowing it to effectively clamp and absorb voltage spikes up to 53.3 V. The maximum peak pulse current rating of 28.1 A supports transient suppression during high energy surges. Operating temperature ranges from -55°C to 150°C make this diode suitable for demanding environments, including automotive electronics compliant with AEC-Q101 standard.

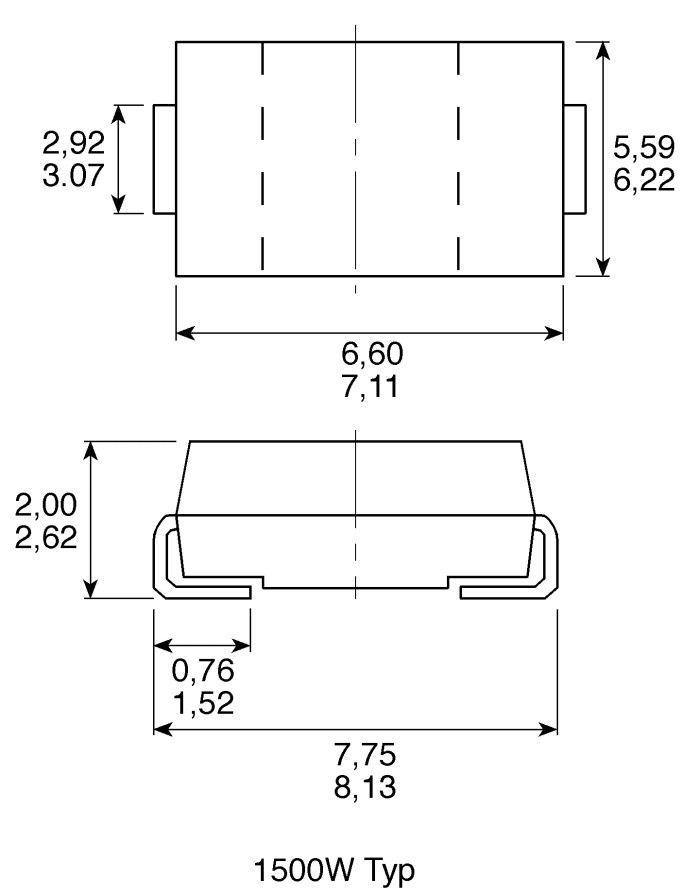

Its compact dimensions (7.11 mm length, 6.22 mm width, and 2.42 mm height) allow easy placement in compact electronic designs. The device has a low maximum reverse leakage current of 1 μA, minimizing power loss in normal operation. This uni-directional TVS diode offers reliable ESD protection, making it a critical component for protecting semiconductors and other sensitive electronic devices.
Single element uni-directional diode for transient voltage suppression. Surface mount SMC package suitable for automated PCB assembly. Peak pulse power rating of 1.5 kW ensures effective surge handling. Operating temperature range from -55°C to 150°C supports a wide range of applications.
Compliance with automotive standard AEC-Q101 guarantees quality and reliability. Low reverse leakage current reduces power consumption. Compact size facilitates integration into space-constrained designs. Designed for protecting industrial, automotive, and consumer electronics from voltage spikes.
This Vishay TVS Diode is part of the TRANSZORB TVS series, renowned for robust transient suppression. It is ideal for electronic engineers and technicians requiring reliable surge protection components in PCB layouts. Explore our extensive range of semiconductor components to find complementary parts and enhance system protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 1.5 kW, providing effective surge protection.
The maximum reverse standoff voltage for this diode is 33 V, allowing it to operate safely under specified conditions.
The clamping voltage of this model is 53.3 V, which helps protect against voltage spikes during surges.
This diode operates within a temperature range of -55°C to 150°C, making it suitable for harsh environments.
The minimum breakdown voltage is 36.7 V, ensuring effective clamping of voltage transients.
This model features a single element configuration, designed for uni-directional transient voltage suppression.
The maximum peak pulse current rating is 28.1 A, supporting transient suppression during high energy surges.
This diode comes in a surface mount SMC package, which facilitates easy assembly on printed circuit boards.
The maximum reverse leakage current is 1 μA, which minimizes power loss during normal operation.
Yes, it complies with the automotive standard AEC-Q101, ensuring reliability for automotive applications.
The dimensions of this diode are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
This uni-directional TVS diode is suitable for protecting sensitive electronic circuits in industrial, automotive, and consumer electronic applications.
