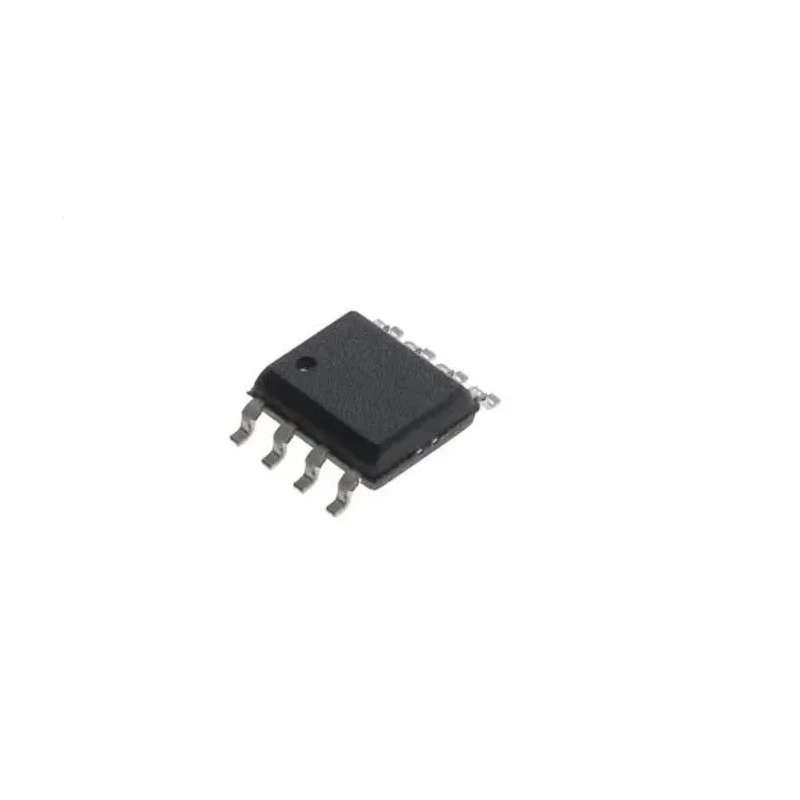

Microchip Linear Voltage Regulator 100 mA 2.1 MHz SOIC 8-Pin LP2951-02YM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | LP2951-02YM |
| Output type | Adjustable |
| Series | LP2951 |
| Output Current | 100mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Load Regulation | 0.2 % |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Linear |
| Switching Frequency | 2.1MHz |
| Maximum Input Voltage | 30V |
| Quiescent Current | 15μA |
| Line Regulation | 0.02 %/V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | -0.3V |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
Key Features
- Micro power linear regulator featuring very low dropout voltage.
- Extremely low quiescent current of 15 μA, prolonging battery life.
- Adjustable output voltage programmable from 1.24 V to 29 V.
- Logic-compatible shutdown input for electronic on/off control.
- Includes an error flag output to warn of low output voltage.
- High accuracy 5 V output guaranteed at 100 mA.
- Low temperature coefficient and very tight line and load regulation.
- Current and thermal limiting for device protection.
Product Description
Microchip LP2951-02YM is a linear voltage regulator designed for power-sensitive and battery-operated industrial applications. It delivers a stable, low-noise output current up to 100 mA with a switching frequency of 2.1 MHz packaged in a compact SOIC 8-pin form factor.
This Voltage Regulator features an exceptionally low quiescent current of 15 μA, enabling prolonged battery life in portable devices. The device supports adjustable output voltage programmable between 1.24 V and 29 V using external resistors, with a pin-strapped option for fixed 5 V output.
Additional features include a logic-compatible shutdown input to electronically switch the regulator on or off, and an error flag output signaling output voltage dropout which is useful for power-on reset or battery status indication.
With very tight line regulation (0.02 %/V) and load regulation (0.2 %), along with low temperature coefficient, the LP2951-02YM ensures high precision voltage regulation over a wide temperature range (-40°C to 125°C), making it suitable for automotive and industrial environments compliant with the AEC-Q100 standard.
The regulator offers current and thermal limiting to protect against overload and overheating scenarios. It requires only a 1μF capacitor for stability, easing PCB design complexity.
Typical industrial uses include power management in battery-powered systems, embedded devices, instrumentation, and control systems within electronics manufacturing, automotive modules, and HVAC control circuits.
Micro power linear regulator with low dropout voltage and quiescent current. Adjustable output from 1.24 V to 29 V with an error-flag output. Logic-controlled shutdown input for power saving. Robust specifications for automotive and industrial applications.
RoHS compliant and rated for -40°C to 125°C operation. Explore more high-quality power management ICs from Microchip and related components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can deliver a stable output current of up to 100 mA.
The output voltage is programmable from 1.24 V to 29 V using external resistors.
The maximum input voltage for this voltage regulator is 30 V.
It features an exceptionally low quiescent current of 15 μA, which helps prolong battery life.
This voltage regulator operates at a switching frequency of 2.1 MHz.
It has a line regulation of 0.02 %/V and a load regulation of 0.2 %.
The LP2951-02YM operates within a temperature range of -40°C to 125°C.
This model is packaged in a compact SOIC 8-pin form factor.
Yes, it includes current and thermal limiting to protect against overload and overheating.
The LP2951-02YM complies with the AEC-Q100 automotive standard.
Yes, this voltage regulator is RoHS compliant.
It is suitable for power management in battery-powered systems, embedded devices, instrumentation, and control systems.
