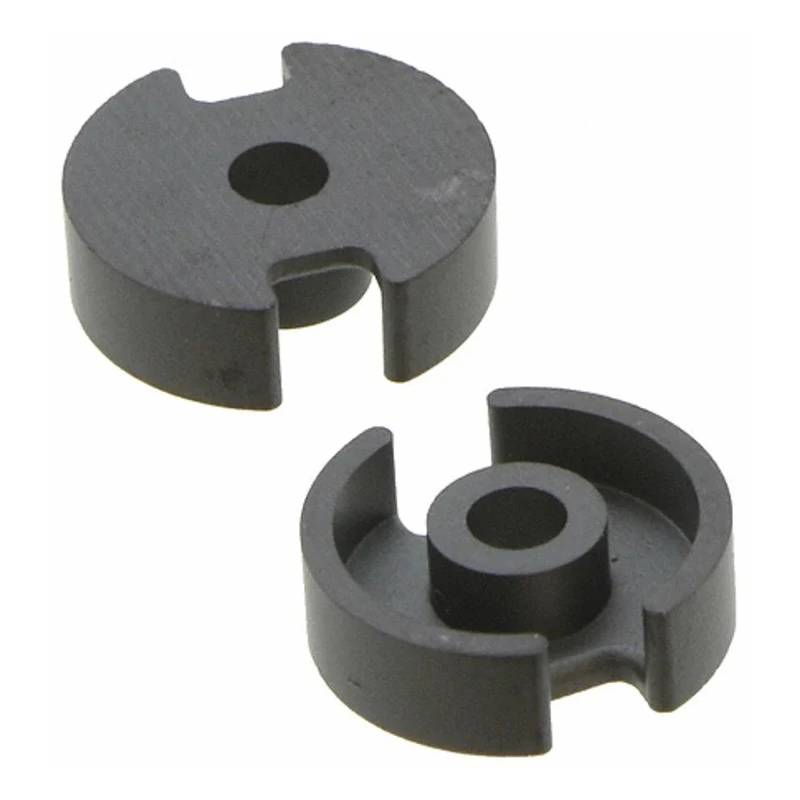

TDK Transformer Ferrite Core P 14/8, 2100 nH AL Rating, N48 Material, 155°C Max Operating Temperature B65541D0000R048

TDK B65541D0000R048 Transformer Ferrite Core P 14/8 with an AL rating of 2100 nH and made from N48 ferrite material is engineered for precision in resonant circuit inductors and transformer cores. This core supports design requirements up to over 100 MHz.

The P 14/8 ferrite core size provides an optimally compact form factor with exact dimensions: length and depth of 8.5 mm each, and width of 14.3 mm. The N48 ferrite grade ensures minimal magnetic leakage, enhancing efficiency in power applications.

With a maximum operating temperature of 155°C, the core is suitable for demanding industrial and electronic environments. It complies with IEC 60133 standards, confirming its quality and reliability for transformer manufacturing.

This ferrite core is ideal for high resonant circuit inductors, broadband low distortion transformers, and compact transformers requiring high inductance and minimal height. Its design supports tailored magnetic adjustments, making it versatile for various power supply and signal transformer applications.

This ferrite core size is P 14/8, ensuring compatibility with specific coil designs. The AL rating of 2100 nH provides a precise inductance factor for circuit tuning. Made from N48 ferrite material, it offers excellent magnetic properties and stability.

Maximum operating temperature is rated at 155°C, suitable for robust use cases. Complies with IEC 60133 standards for transformer components. Dimensions: Length 8.5 mm, Depth 8.5 mm, Width 14.3 mm. Supports applications in power supplies, electronic components, and resonant circuits.

These features make the TDK B65541D0000R048 ferrite core highly reliable for industrial, laboratory, and manufacturing environments requiring consistent transformer performance. Explore related Transformer Cores and components within the Electronics & Electricals category at EnvMart for comprehensive solutions.
