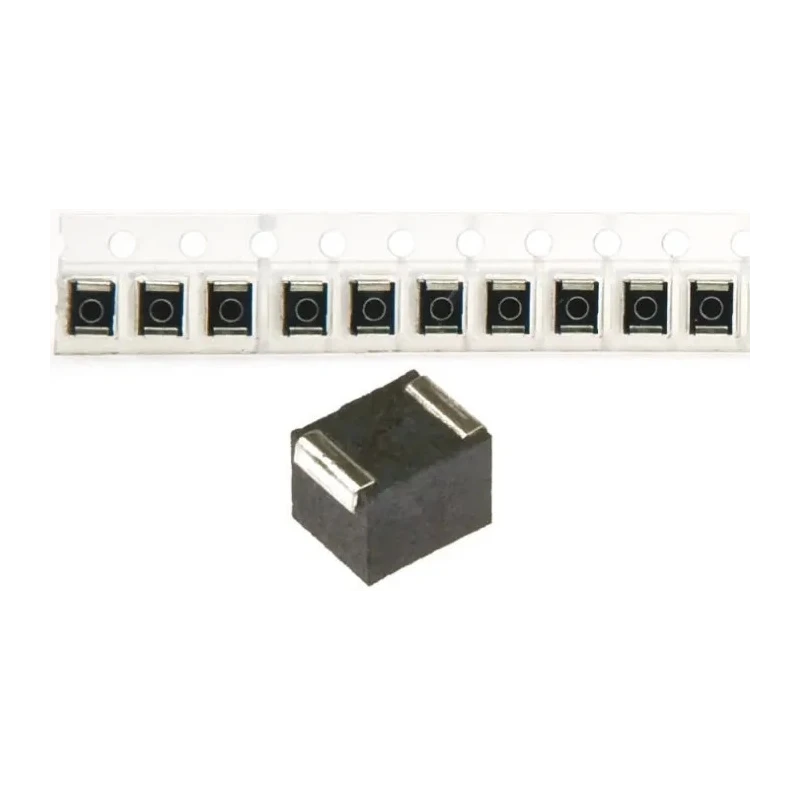

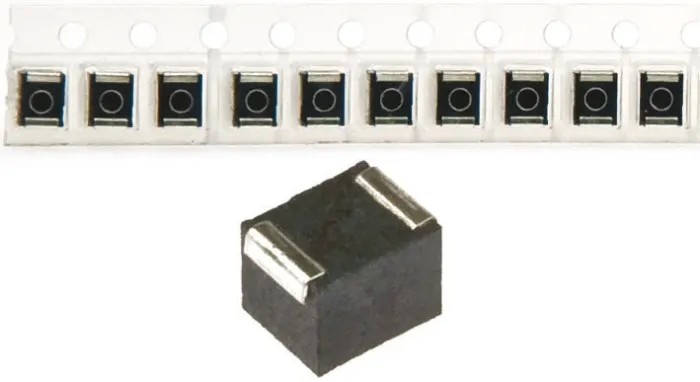

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 470μH ±5% 25mA Idc Q:20 NLV32T-471J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-471J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 470μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 25mA |
| Pin Count | 2 |
| Maximum DC Resistance | 40Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 4MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features
- Constructed with a ferrite core for high magnetic efficiency.

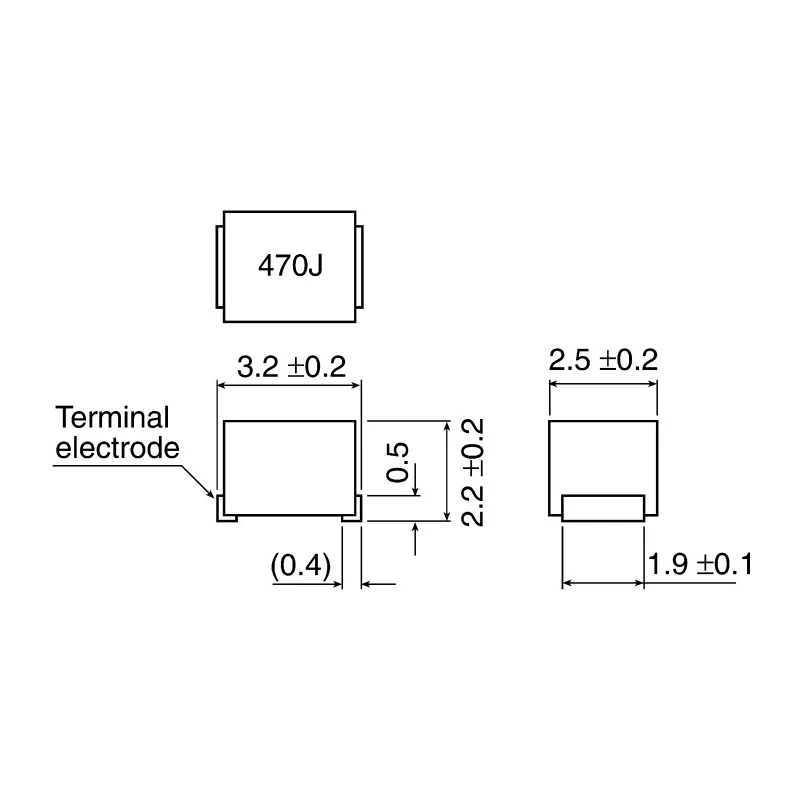

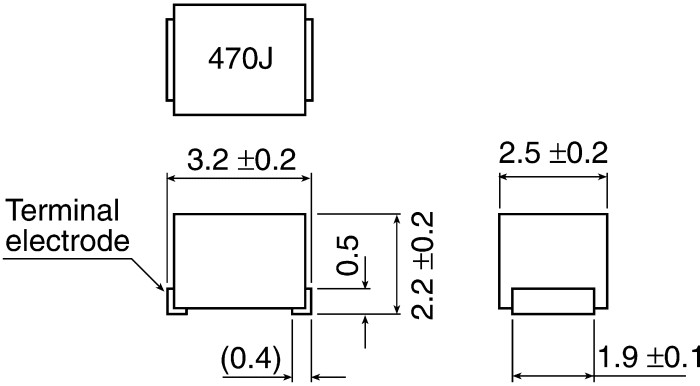

- Package size is 1210 with length 3.2mm, height 2.2mm, and depth 2.5mm.
- High Q factor of 20 ensures sharp frequency response.
- Maximum DC resistance is 40Ω for stable operation.
- Operating temperature range from -40°C to 105°C.
- RoHS compliant and shielded to minimize interference.
- Wirewound construction with surface mount termination style.
- Maximum self-resonant frequency is 4MHz suitable for signal line applications.
Product Description
TDK NLV32T-471J-PF shielded wirewound surface mount inductor offers a precise inductance of 470μH with ±5% tolerance, designed for various electronic applications requiring stable inductance and low interference. It features a ferrite core that provides excellent magnetic properties for enhanced performance.
This 1210 package inductor measures 3.2mm in length, 2.2mm in height, and 2.5mm in depth. It supports a maximum DC current of 25mA and has a robust wirewound construction, making it suitable for demanding signal line applications.
The component has a minimum quality factor (Q) of 20, ensuring a sharp and reliable frequency response, with a maximum self-resonant frequency of 4MHz. Its maximum DC resistance is 40Ω, contributing to stable electrical characteristics across its operating range of -40°C to 105°C. The inductor is encapsulated in a high heat resistant thermoplastic resin package and adheres to RoHS standards for environmental safety.
Shielding is incorporated to reduce electromagnetic interference, making it ideal for use in high-frequency circuits and consumer electronics such as TVs, VCRs, digital cameras, xDSL equipment, car audio systems, ECUs, and hard disk drives.
This wirewound inductor is surface mount compatible, promoting efficient PCB assembly and integration into automated manufacturing processes. The product originates from Japan, reflecting TDK's commitment to quality and reliability in electronic components.
Constructed with a ferrite core for high magnetic efficiency. Package size is 1210 with length 3.2mm, height 2.2mm, and depth 2.5mm. High Q factor of 20 ensures sharp frequency response. Maximum DC resistance is 40Ω for stable operation.
Operating temperature range from -40°C to 105°C. RoHS compliant and shielded to minimize interference. Wirewound construction with surface mount termination style. Maximum self-resonant frequency is 4MHz suitable for signal line applications.
Suitable for use in TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, and similar electronics. Explore TDK's comprehensive range of Surface Mount Inductors and other electronic components on EnvMart for reliable solutions in industrial, consumer, and automotive electronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 470μH with a tolerance of ±5%.
The maximum DC current for this inductor is 25mA.
It operates within a temperature range of -40°C to 105°C.
This unit measures 3.2mm in length, 2.2mm in height, and 2.5mm in depth.
The maximum self-resonant frequency is 4MHz, making it suitable for signal line applications.
It is constructed with a ferrite core, which provides high magnetic efficiency.
The maximum DC resistance is 40Ω, ensuring stable operation.
The minimum quality factor (Q) is 20, which ensures a sharp frequency response.
Yes, this inductor is RoHS compliant, adhering to environmental safety standards.
It features a surface mount termination style, which is compatible with automated PCB assembly.
This model is suitable for use in TVs, VCRs, digital cameras, xDSL, car audio systems, ECU systems, and hard disk drives.
The component originates from Japan, reflecting TDK's commitment to quality.
