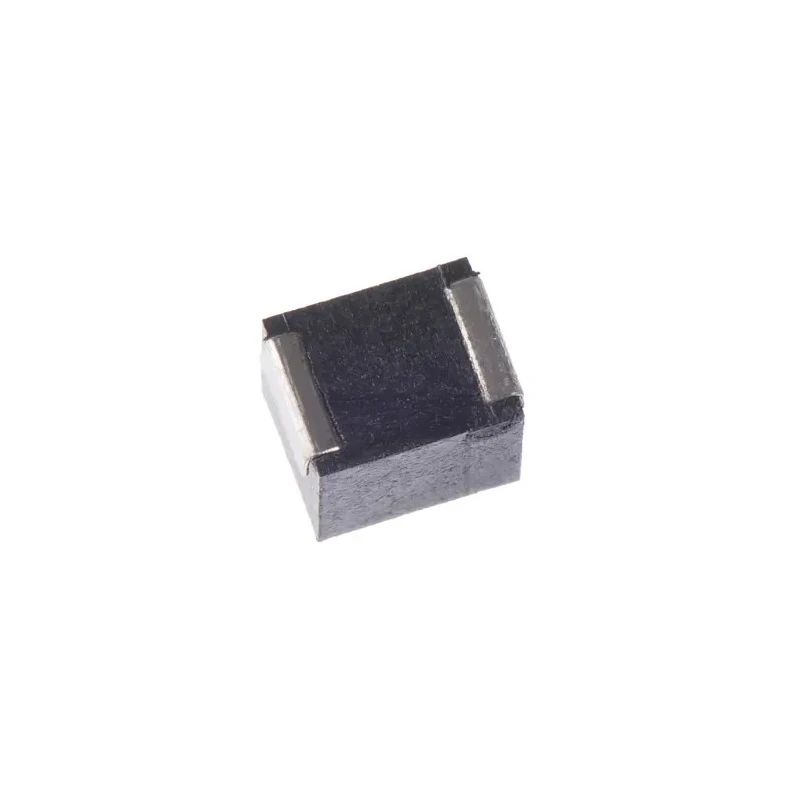

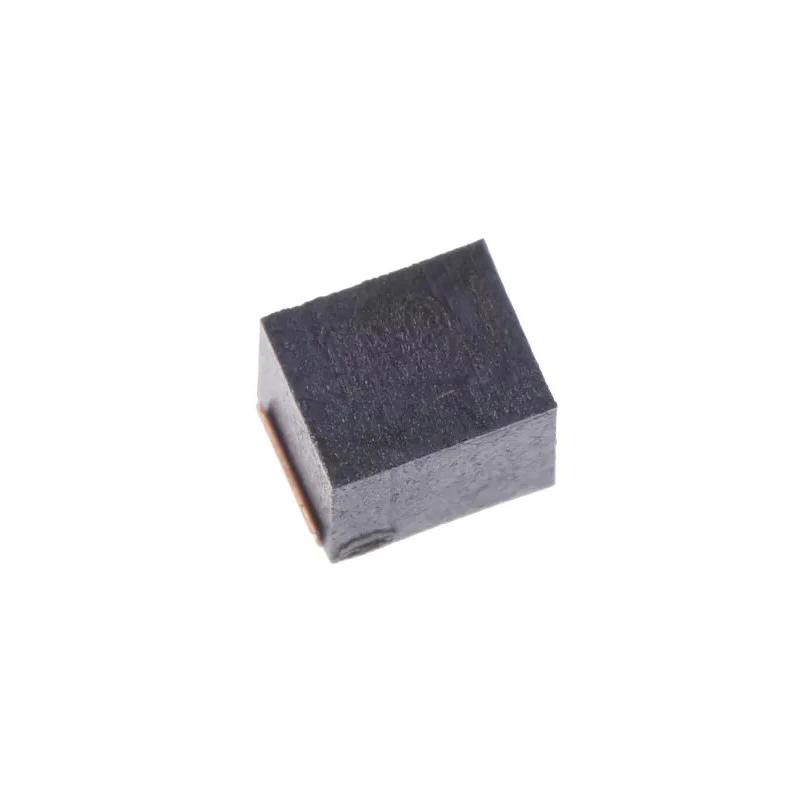

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core, 1 μH ±5 % 400 mA Max DC Current, Q:30 NLV32T-1R0J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-1R0J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 400mA |
| Maximum DC Resistance | 700mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 120MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features
- Compact 1210 package size suited for surface mount technology.
- Constructed with a ferrite core for stable magnetic performance.
- Maximum DC resistance of 700 mΩ ensures efficient current flow.
- High quality factor of minimum 30 for sharp frequency response.
- Operating temperature range from -40°C to 105°C for reliable performance.
- Wirewound construction enhances inductance precision and durability.
- RoHS compliant with moulded thermoplastic resin exterior for heat resistance.
- Maximum self-resonant frequency of 120 MHz supports high-frequency applications.
Product Description
TDK NLV32T-1R0J-PF is a high-quality shielded wirewound surface mount inductor packaged in a 1210 case with precise 1 μH inductance and ±5 % tolerance. It features a ferrite core that provides stable magnetic characteristics and low losses. The inductor supports a maximum DC current of 400 mA with a maximum DC resistance of 700 mΩ, making it suitable for various signal line applications.
Constructed using wirewound methodology, this inductor offers a minimum quality factor of 30, ensuring a sharp frequency response essential for sensitive electronic circuits. The component is moulded in heat-resistant thermoplastic resin, enabling operation in temperatures from -40°C up to +105°C. It complies with RoHS standards, reflecting environmental safety and regulatory compliance.
This surface mount component is designed for efficient placement on PCBs via its surface mount termination style. Its high maximum self-resonant frequency of 120 MHz makes it ideal for high-frequency applications in consumer electronics and automotive systems.
Common applications include use in televisions, VCRs, digital cameras, xDSL modems, car audio systems, electronic control units (ECUs), and hard disk drives (HDDs). The shielding reduces electromagnetic interference, enhancing system reliability and performance.
Compact 1210 package for space-efficient PCB design. Ferrite core to maintain inductance stability under various conditions. High tolerance and low DC resistance for precision applications. Wide operating temperature range supports industrial and commercial environments.
Compliant with RoHS directive ensuring environmental safety. Wirewound construction provides durability and consistent inductance. High-quality factor ensures superior frequency response. Moulded thermoplastic resin exterior resists thermal stress.
Surface mount termination for automated PCB assembly. Versatile use in consumer electronics and automotive applications. Explore more Surface Mount Inductors and electronic components at EnvMart for your industrial, manufacturing, and electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1 μH with a tolerance of ±5 %.
It supports a maximum DC current of 400 mA.
The maximum DC resistance is 700 mΩ.
The operating temperature range is from -40°C to 105°C.
The maximum self-resonant frequency is 120 MHz, making it suitable for high-frequency applications.
It features a wirewound construction, which enhances inductance precision.

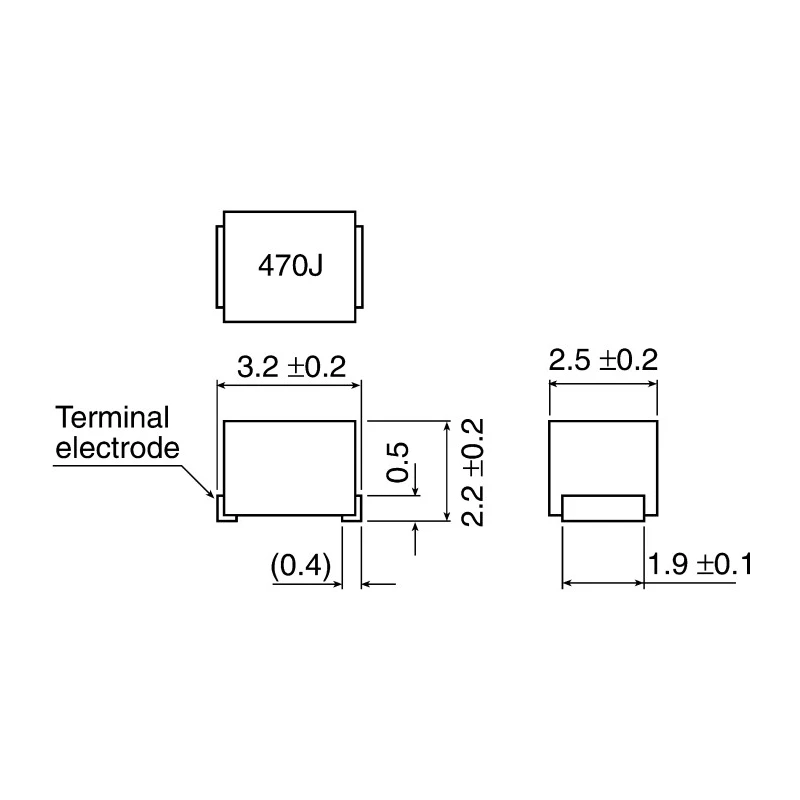

The dimensions are 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height.
