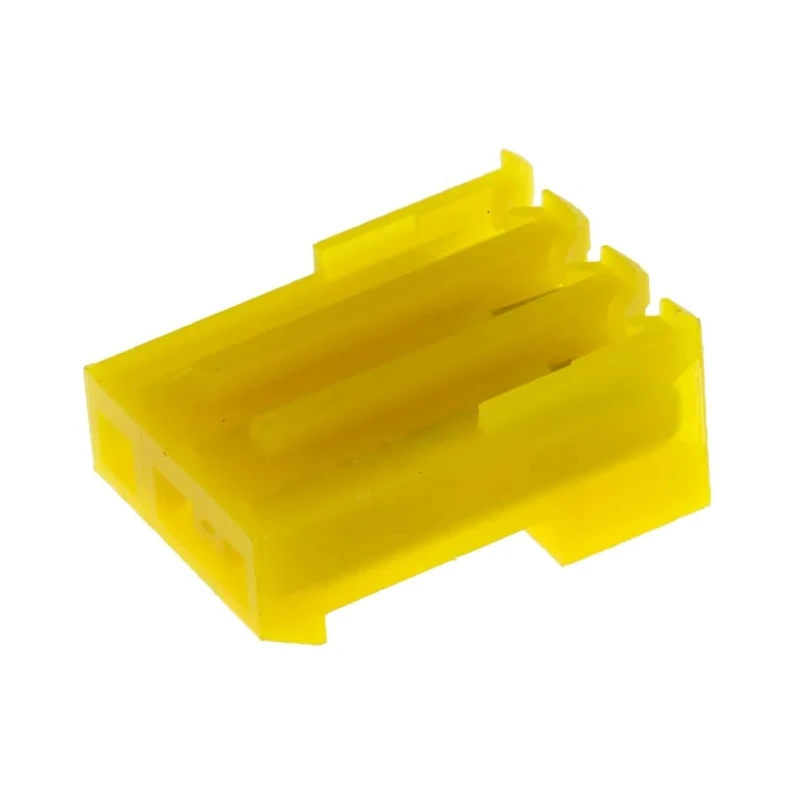

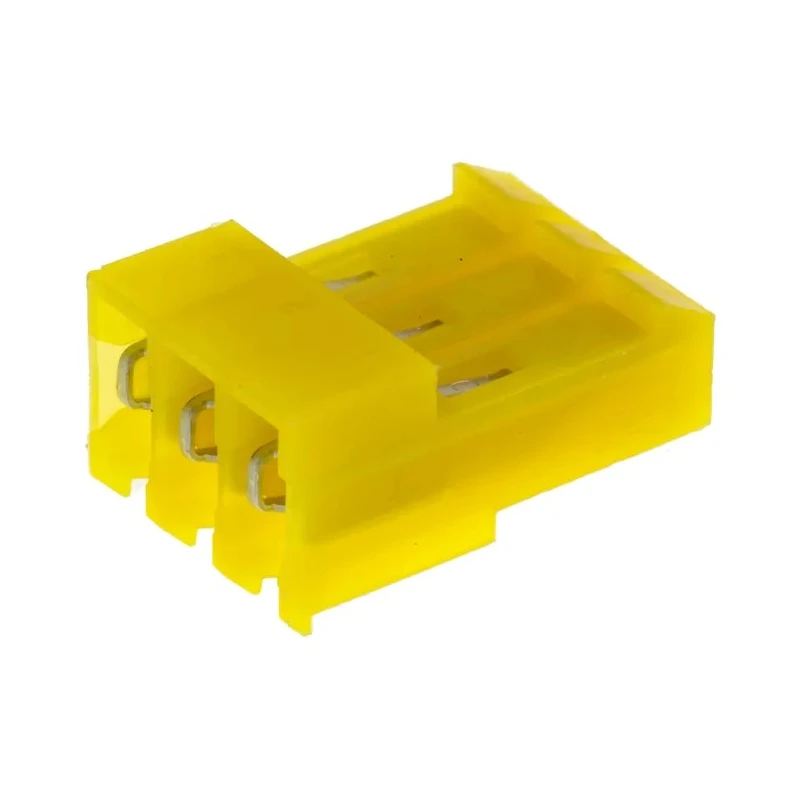

TE Connectivity 3-Way IDC Connector Female for Cable 3 Contacts 7A 600V ac 3.96mm Pitch MTA-156 Series 3-640427-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 7A |
| Mount Type | Cable |
| Housing Material | Nylon |
| Contact Material | Copper |
| Series | MTA-156 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Connector,PCB,MTA,3 way,cable socket,3.96mm pitch,22 awgBrand | TE Connectivity |
Key Features
- Designed to connect stranded discrete wires sized from 18 to 26 AWG efficiently.
- Features a shrouded, right-angle female connector with tin over nickel plating for optimal conductivity.
- Operates reliably between -55°C and 105°C temperature range.
- Constructed with durable nylon housing ensuring high insulation and mechanical stability.
- Locking ramp and polarization tab features prevent reverse mating and secure connections.
- Based on insulation displacement contact (IDC) technology enabling quick assembly without wire stripping.
- Approved under UL (E28476) and CSA (LR7190) standards for safety and quality assurance.
- Stackable end-to-end assembly allowing flexible configurations in industrial applications.
Product Description
TE Connectivity 3-640427-3 3-Way IDC Connector Female for Cable is a high-quality IDC connector designed for industrial and electronic applications, supporting stranded wire sizes 18 to 26 AWG with a 3 contacts configuration rated for 7A current and 600V AC voltage. This connector features a single row, right-angle female design with a 3.96mm pitch, part of the advanced MTA-156 series known for labor and cost savings in mass termination processes.
The connector uses insulation displacement contact (IDC) technology, significantly reducing assembly time by eliminating the need to strip wires before termination. The shrouded design with tin over nickel plating ensures reliable electrical performance and mechanical protection. Nylon housing material provides excellent durability and complies with UL94V-2 fire resistance standards.
Operating temperature ranges from -55°C to 105°C, making it suitable for harsh environments. The connectors include molded ribs for preventing reverse mating and are available with locking ramps and polarization tabs that secure proper alignment and locking in assemblies.
This 3-way female connector is approved under recognized UL and CSA standards, ensuring compliance with industrial safety and performance requirements. Its stackable design allows for flexible wiring configurations in electronics manufacturing and electrical power distribution.
Designed for wire sizes 18 to 26 AWG enabling versatility. Molded nylon housing for mechanical and electrical insulation. Right-angle orientation for space-efficient PCB and cabling installations. Tin over nickel contact plating for corrosion resistance and conductivity.
Insulation displacement contact technology for fast assembly. Rated for 7A continuous current and 600V AC voltage applications. Operating temperature range ensures reliability in diverse conditions. Stackable and secure assembly with locking ramps and polarization tabs.
This TE Connectivity IDC Connector is widely used in electronic component manufacturing, industrial wiring harnesses, power connectors, and PCB interconnection systems. It is ideal for applications requiring reliable, easy-to-assemble cable-to-board or wire-to-wire connections.
Explore more connectors and accessories from TE Connectivity for robust and efficient electronic component solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a continuous current of 7A and a voltage of 600V AC.
It is designed to connect stranded discrete wires sized from 18 to 26 AWG.
The connector operates reliably within a temperature range of -55°C to 105°C.
It utilizes insulation displacement contact (IDC) technology, allowing for quick assembly without the need for wire stripping.
The housing is made of nylon, and the contacts are copper with tin over nickel plating for optimal conductivity.
It features molded ribs, a locking ramp, and a polarization tab that secure proper alignment and prevent reverse mating.
The pitch of this connector is 3.96mm.
Yes, it is approved under UL (E28476) and CSA (LR7190) standards for safety and quality assurance.
It is widely used in electronic component manufacturing, industrial wiring harnesses, power connectors, and PCB interconnection systems.
This connector features a right-angle orientation, making it suitable for space-efficient installations.
This model has 3 contacts.
The country of origin for this connector is India.
