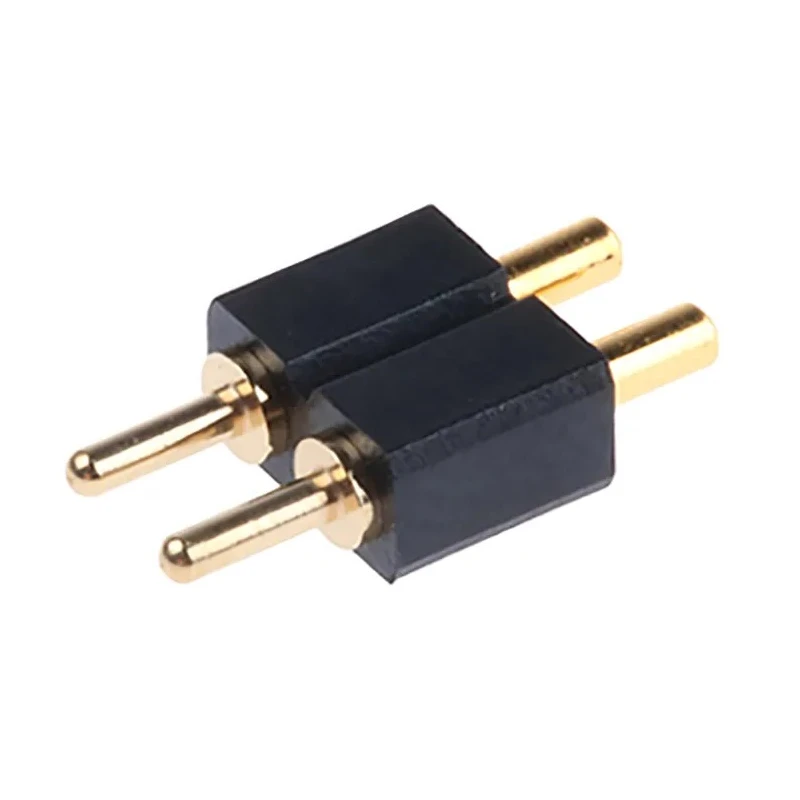

Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector, 2 Contacts, 2.54 mm Pitch, 1 Row 811-S1-002-10-016101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3.5A |
| Model | 811-S1-002-10-016101 |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 811 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- This connector features spring-loaded contacts for low and stable electrical resistance.
- It has a pitch of 2.54 mm and supports a current rating of 3.5A.
- The housing is made from fibreglass reinforced polyethylene terephthalate providing durability.
- Contacts are brass plated with gold to ensure reliable conductivity.
- The operating temperature ranges from -55°C to 125°C.
- Shrouded straight orientation with male contact gender for secure connection.
- Designed for solder termination and through hole mounting on PCBs.
Product Description
Preci-Dip 811-S1-002-10-016101 Spring Loaded Connector is a high-quality PCB connector designed with 2 brass contacts plated in gold, spaced at a 2.54 mm pitch in a single row. Its shrouded, straight-through-hole mounting ensures secure mechanical and electrical performance. The housing is constructed from fibreglass reinforced polyethylene terephthalate, offering excellent durability and thermal stability from -55°C to a maximum of 125°C.
Featuring spring-loaded contacts (SLC), this connector guarantees low, stable electrical resistance values without micro-discontinuities, even under vibration or movement. It is rated for a current of 3.5A and voltage of up to 150V, making it suitable for demanding electronic and industrial applications requiring reliable signal or power transmission.
The shrouded design and male contact gender provide secure mating and protection from accidental disconnection or damage. Through-hole mounting facilitates strong PCB assembly integration, ensuring long-term mechanical stability.
This product is manufactured in Switzerland, meeting high-quality European standards, though it carries no specific certifications. It is an excellent replacement for conventional connectors in industrial, electronic, laboratory, and manufacturing environments.
This connector offers robust spring-loaded contacts for reliable electrical connections. It supports a 2.54 mm pitch with 1 row and 2 contacts for precise interfacing. Durable fibreglass reinforced plastic housing withstands a wide temperature range.
Brass contacts plated with gold enhance conductivity and corrosion resistance. Shrouded and straight design ensures secure, stable mounting and connection. Rated for 3.5A current and 150V voltage, suitable for many PCB applications.
Ideal for use in electronic components, power connectors, and PCB assembly tasks. Explore more Preci-Dip Connectors and PCB components at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current rating of 3.5A, making it suitable for various electronic applications.
The voltage rating for the 811-S1-002-10-016101 connector is up to 150V.
The contacts in this connector are spaced at a pitch of 2.54 mm.
The housing is made from fibreglass reinforced polyethylene terephthalate, and the contacts are brass plated with gold.
The operating temperature range for the 811-S1-002-10-016101 is from -55°C to 125°C.
This connector features 2 contacts in a single row configuration.
It supports through-hole mounting, which facilitates strong PCB assembly integration.
The termination type for this model is solder, allowing for secure connections on PCBs.
The contact gender of the 811-S1-002-10-016101 is male, ensuring secure mating with compatible connectors.
This connector features a straight orientation, which aids in easy installation and connection.
This connector is manufactured in Switzerland, adhering to high-quality European standards.
It is suitable for use in industrial, electronic, laboratory, and manufacturing environments requiring reliable signal or power transmission.
