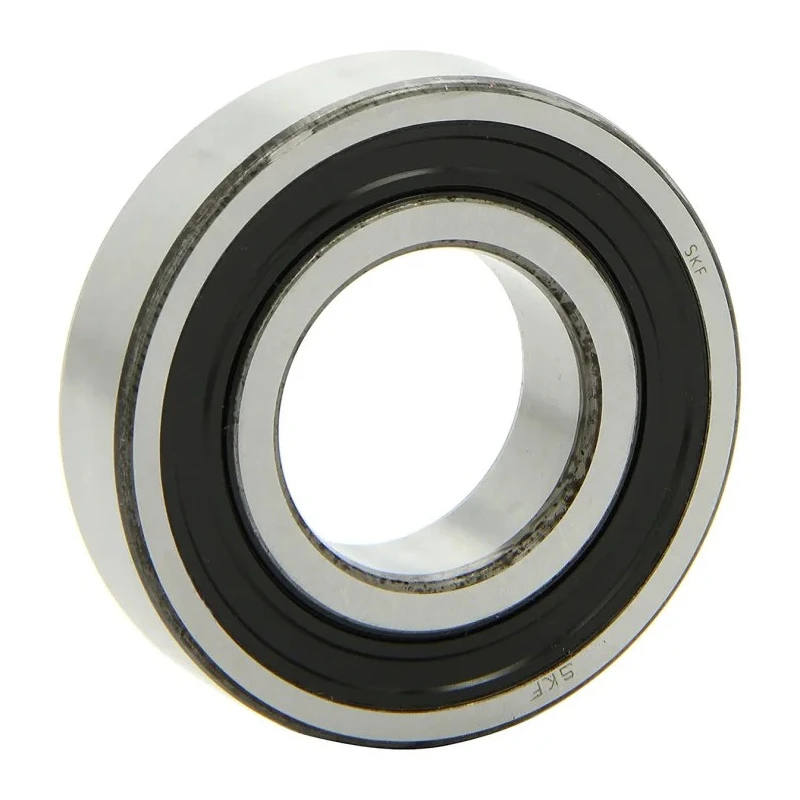

SKF Single Row Deep Groove Ball Bearing 30 mm ID, 72 mm OD, 19 mm Width, Sealed Sheet Metal Cage 6306-2RS1NR

Free Delivery in India | Lowest Global Shipping Charges

SKF Single Row Deep Groove Ball Bearing 30 mm ID, 72 mm OD, 19 mm Width, Sealed Sheet Metal Cage 6306-2RS1NR



Category Rotary Bearings & Housing Units Brand SKF Condition New

Specifications

Country of Origin	Malaysia
Brand	SKF
Model	6306-2RS1NR
Series	3 Medium
Outside diameter	72mm
Inside Diameter	30mm
Number of Rows	1
Ball Material	Steel
Limiting Speed	6300rpm
Internal Clearance	CN
End Type	Sealed
Bore Type	Parallel
Bearing Type	Single Row Deep Groove Ball
Cage Material	Sheet Metal
Race Width	19mm
Race Material	Steel
Static Load Rating	16kN
Race Type	Plain
Dynamic Load Rating	28.1kN

Key Features

Sealed bearing design with sheet metal cage ensures protection and durability.
Steel race and ball material provide high strength and wear resistance.
Rated for a limiting speed of 6300 rpm for efficient operation.
Suitable for high temperature range from -30°C to 150°C for diverse environments.
Designed for cost efficiency with low friction and minimal maintenance.
Can withstand static load rating of 16kN and dynamic load rating of 28.1kN.
Inner clearance CN and plain race type for versatile use.
Manufactured in Malaysia ensuring quality manufacturing standards.

Product Description

SKF 6306-2RS1NR is a high-quality single row deep groove ball bearing designed for robust and reliable operation in industrial machinery. Featuring a 30 mm inside diameter, 72 mm outside diameter, and 19 mm race width, this bearing excels in handling radial and axial loads. The sealed design with a sheet metal cage offers resistance against contaminants, enabling long service life even in challenging environments.

Made with steel race and ball materials, the bearing maintains strength and resistance to wear and fatigue under continuous use. It is rated for a limiting speed of 6300 rpm, making it suitable for high-speed machinery. Operating temperature ranges from -30°C to +150°C ensure the bearing performs reliably in both cold and hot conditions, including dry and low rotational speed applications.

SKF ball bearings are cost efficient due to their low friction torque, which helps reduce energy consumption in equipment such as conveyors. The product features a static load rating of 16kN and a dynamic load rating of 28.1kN, with an internal clearance classified as CN and plain race type, delivering versatile application capability.

This bearing is manufactured in Malaysia and is designed to meet the demands of various industries including agriculture, food processing, medical, pharmaceutical, machine tools, printing, material handling, and wind energy sectors.

Sealed bearing design with sheet metal cage for protection and durability. Steel race and ball materials for enhanced strength and wear resistance. Limiting speed of 6300 rpm supporting high operational speeds. Temperature range between -30°C and 150°C for wide environmental adaptability.

Static and dynamic load ratings of 16 kN and 28.1 kN respectively. Internal clearance rated CN with plain race type. Designed for low friction and reduced energy costs. Applicable across multiple industrial sectors including agricultural and medical.

Single row deep groove configuration ideal for radial and axial loads. Manufactured under strict quality controls in Malaysia. Explore the extensive range of SKF ball bearings at EnvMart for your industrial machinery needs.
