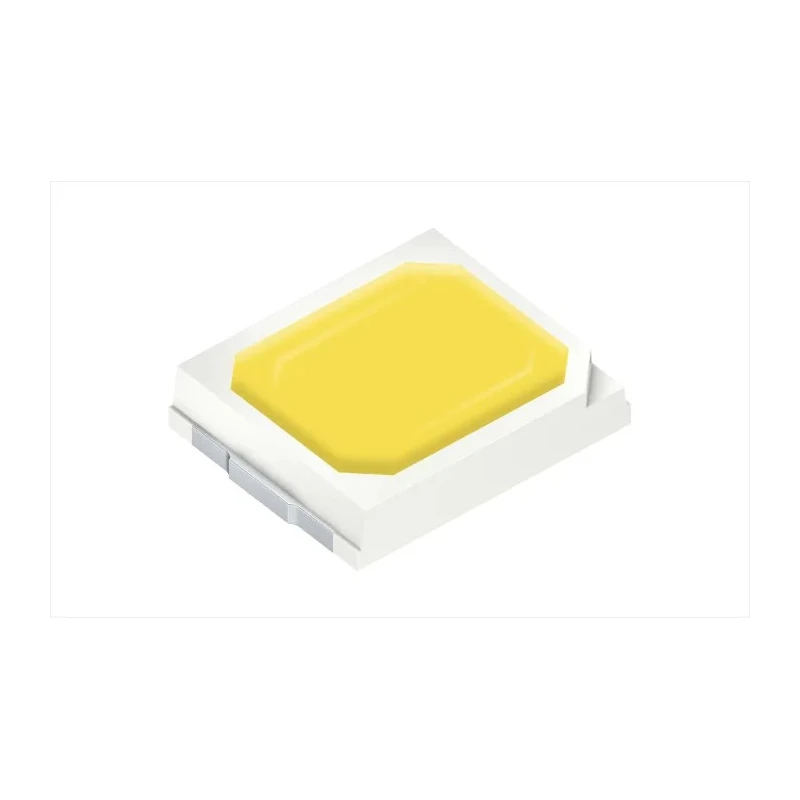

ams OSRAM 2.71 V White LED SMT Surface OSCONIQ E 2835 GW QTLTS2.QM-H1H6-XX57-1-65-R33

ams OSRAM GW QTLTS2.QM-H1H6-XX57-1-65-R33 is a high-performance white LED in SMT surface mount package from the OSCONIQ E 2835 series. Designed to operate reliably at a forward voltage of 2.71 volts and a maximum forward current of 200 mA, this LED is ideal for mid-power general lighting applications in industrial, commercial, and consumer electronics.

The LED offers a warm white illumination at 3000K colour temperature with a colour rendering index (CRI) of 90%, making it well-suited for environments requiring high-quality, natural light such as office lighting, retail displays, and hospitality venues. It delivers luminous flux between 28.5 and 37.5 lumens with excellent luminous efficacy reaching up to 195 lm/W at 4000K, closing the gap between CRI80 and higher CRI indoor lighting solutions.

Packaged in a compact SMT surface mount package with a diffused lens finish, it features a typical 120° viewing angle providing broad light distribution. The product is tape and reel packaged to facilitate efficient automated PCB assembly. The OSCONIQ E series ensures elevated lifetime and reliability making it an optimal choice for durable and high-quality illumination needs.

This LED is compliant with IEC 62471:2006 photobiological safety standards to ensure safe use in various lighting scenarios. It is manufactured in China under strict quality controls to guarantee excellent consistency and performance.

The LED operates at a forward voltage of 2.71 volts and maximum forward current of 200 mA. Colour temperature is 3000K producing warm white light with a CRI of 90%. Luminous flux ranges from 28.5 to 37.5 lumens with a 120° viewing angle.

Diffused lens finish for even light distribution in SMT surface mount package. Packaged in tape and reel format suitable for automated assembly processes. Part of OSCONIQ E 2835 series designed for mid-power general lighting applications.

Conforms to IEC 62471:2006 photobiological safety standards. Manufactured in China ensuring product consistency and quality.

These LEDs are widely used in electronics, lighting manufacturing, commercial and residential lighting, and industrial applications. Explore other LED products and lighting components in the Electronics & Electricals category at EnvMart for your lighting solutions.
