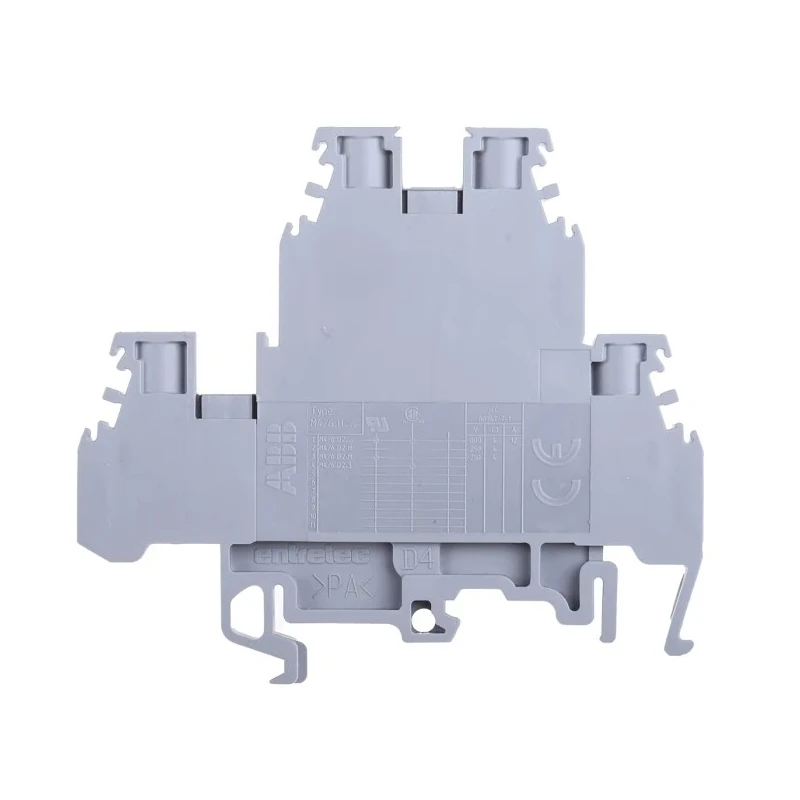

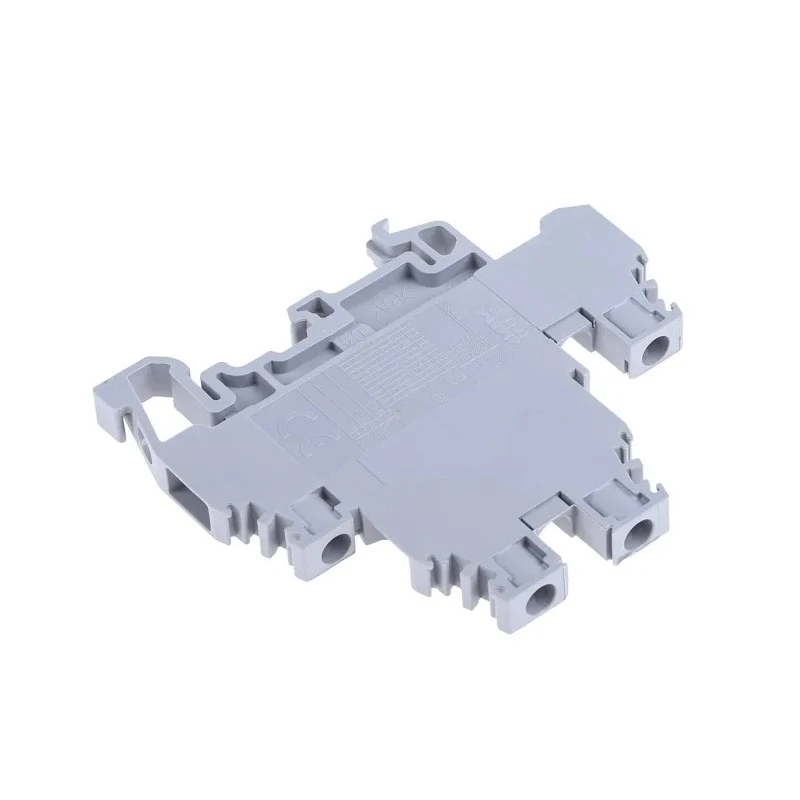

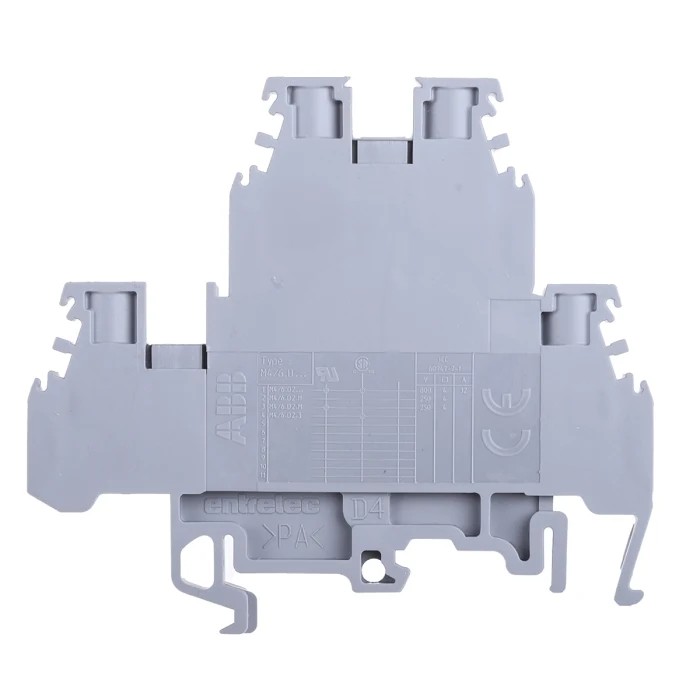

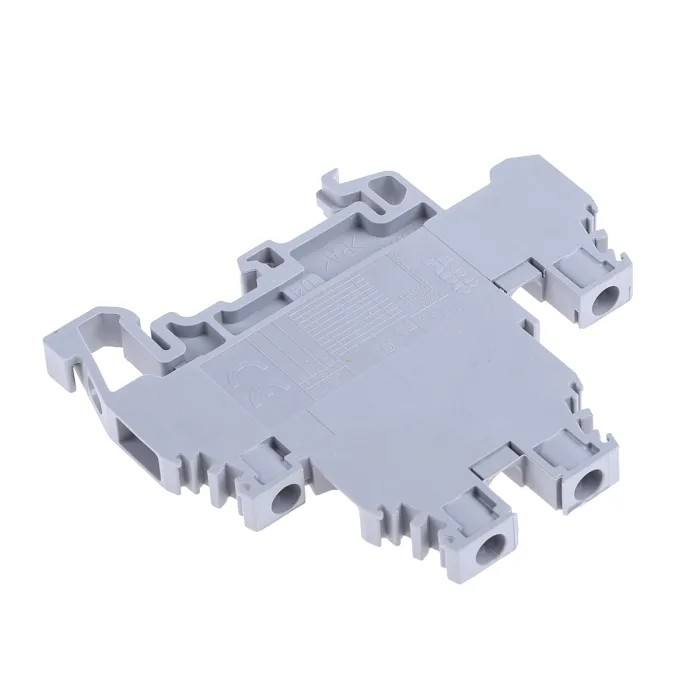

Entrelec SNA Series DIN Rail Terminal Block Grey 4mm² 2-Level Screw Termination 800V AC 32A 1SNA115271R2200

Free Delivery in India | Lowest Global Shipping Charges

Entrelec SNA Series DIN Rail Terminal Block Grey 4mm² 2-Level Screw Termination 800V AC 32A 1SNA115271R2200

Name: Entrelec SNA Series DIN Rail Terminal Block Grey 4mm² 2-Level Screw Termination 800V AC 32A 1SNA115271R2200
Brand: Entrelec
SKU: 118150
Price: 20.22 USD
Availability: InStock



Category DIN Rail Terminal Blocks Brand Entrelec Condition New

Specifications

Country of Origin	India
Voltage	800V ac
Brand	Entrelec
Colour	Grey
Model	1SNA115271R2200
Series	SNA
Termination Type	Screw
Maximum Operating Temperature	40°C
Number of Levels	2
Minimum Operating Temperature	-5°C
Pitch	6mm
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	10AWG
Cable CSA	4mm²
Terminal Block Current	32A
RS PRO Grey Double Level Terminal Block, 2.5mm², Double-LevelBrand	RS PRO

Key Features

Constructed from flame-resistant polyamide 6.6 material ensuring high durability.
Accommodates cable sizes from AWG22 to AWG10 with a pitch of 6mm.
Operates reliably between -5°C to 40°C operating temperature range.

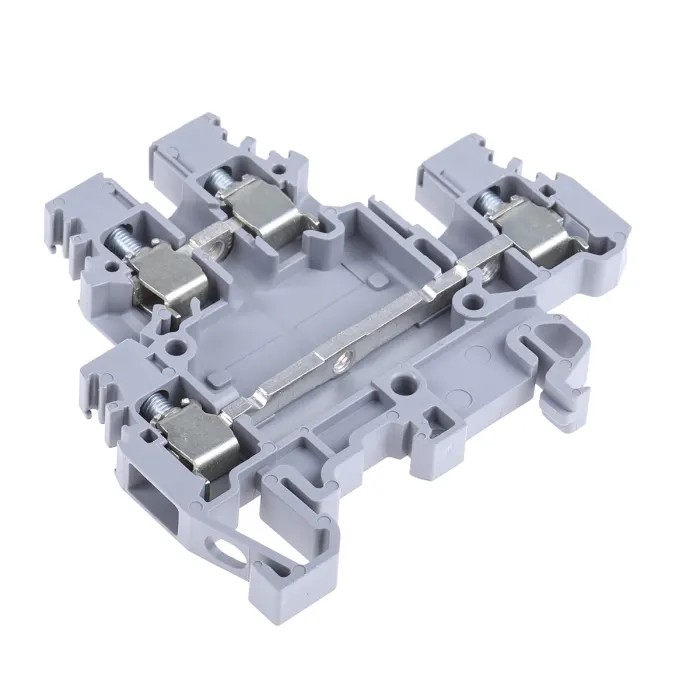

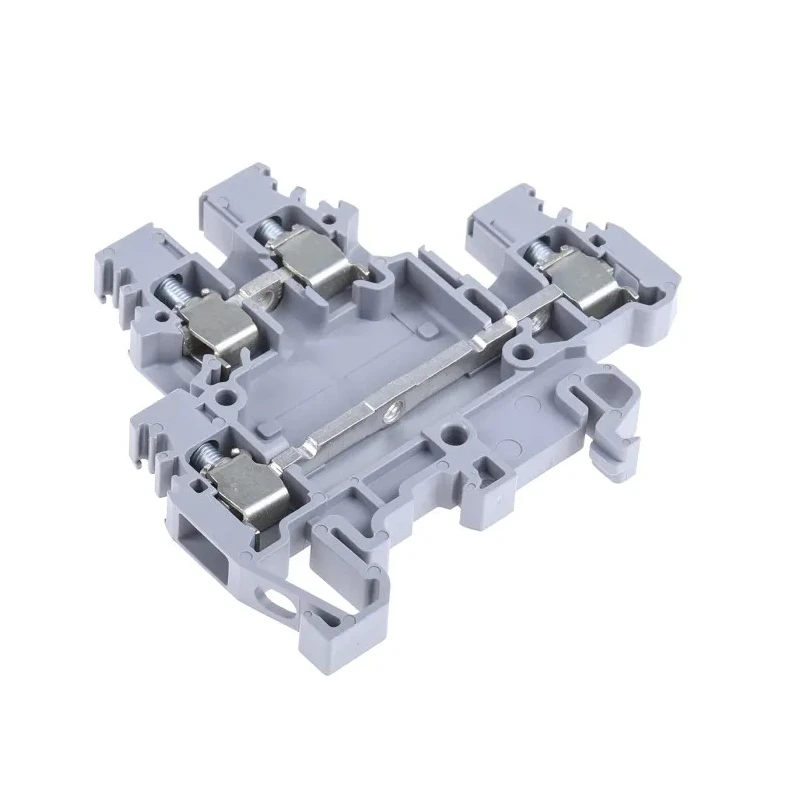

Designed with a space-saving double deck allowing four independent screw clamp connections.
Compatible with symmetrical and asymmetrical DIN rails including 5000 Universal Series.
Offers flexibility for various electrical connection needs in industrial environments.
Features hardened captive terminal screws to prevent burring during installation.

Product Description

Entrelec 1SNA115271R2200 is a durable SNA Series DIN Rail Terminal Block designed for industrial electronic and electrical applications. It supports an AC voltage up to 800V and a current rating of 32A, suitable for diverse power and control wiring tasks. The grey terminal block features a 2-level double deck configuration that offers efficient space usage on DIN rails.

Manufactured with tough flame-resistant polyamide 6.6, this terminal block ensures high reliability and resistance to harsh industrial environments. Its termination uses screw clamps with hardened heads to minimize damage and assure secure electrical connections. The cable entry and clamp design accommodate wire sizes ranging from AWG22 to AWG10 and cable cross-sectional area of 4mm², with a 6mm pitch for optimal layout.

The operating temperature range from -5°C to 40°C, with no hazardous area certification or additional standards, supports typical industrial conditions. The product is suitable for assembly on both symmetric and asymmetric DIN rails, enhancing mounting flexibility. This universal compatibility simplifies installation and maintenance for electrical panels and distribution boxes.

Flame-resistant polyamide 6.6 construction for enhanced durability. Double deck design with four independent screw clamp connections. Supports cable sizes AWG22 to AWG10 with 4mm² cross-section and 6mm pitch. Reliable electrical performance at 800V AC and 32A current.

Operating temperature range from -5°C to 40°C. Flexible mounting on various DIN rail profiles including 5000 Universal Series. Hardened captive screws prevent burring and ensure secure termination.

This DIN Rail Terminal Block is ideal for industrial, electrical panel, automation system, and power distribution applications. It provides a stable, secure, and space-efficient solution for wiring and connections in manufacturing, industrial, and commercial environments. Explore the complete Entrelec range for compatible accessories and additional connector types available on EnvMart.
