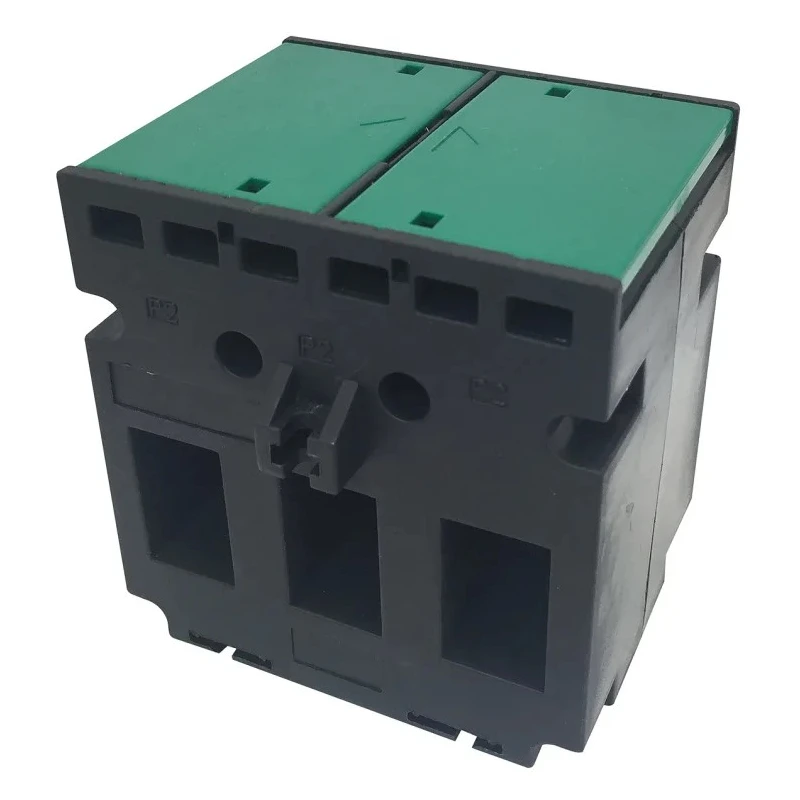

Sifam Tinsley OMEGA Series Current Transformer 160 A 60:5 to 630:5 A 31mm Bore XN25-235031S000000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sifam Tinsley |
| Model | XN25-235031S000000 |
| Gross Weight | 650g |
| Width | 141mm |
| Mount Type | Base, DIN Rail, Busbar |
| Series | OMEGA |
| Bore Diameter | 31mm |
| Secondary current | 5A |
| Terminal type | Screw |
| Primary Current | 160A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Turns Ratio | 60:5 to 630:5 A |
| 60 | 5 to 630:5 A |
| 3 sizes available | 15 x 25 mm, 21 x 25 mm & 31 x 31 mm |
| RS PRO Current Transformer 160 A 35mm BoreRS Stock No. | 171-8827Brand: RS PRO |
| Sifam Tinsley OMEGA Series Current Transformer 160 A 60 | 5 to 630:5 A 31mm Bore |
Key Features
- OMEGA Series supports primary current ranges from 60 A to 630 A AC with 5 A secondary output.
- Wire sealable terminal covers provide secure and tamper-evident connections.
- Mounting options include base, DIN rail, and busbar for versatile installation.
- Self-extinguishing casing rated VO per UL-94 ensures enhanced safety.
- Compliant with IEC/EN 60044-1, IEC 61010-2, and IEC 61869-1 safety standards.
- Maximum operating frequency is 60 Hz with a minimum frequency of 50 Hz.
- System voltage supports up to 720 V at 50-60 Hz operation.
- Compact width of 141 mm with robust construction.
Product Description
Sifam Tinsley XN25-235031S000000 OMEGA Series Current Transformer is engineered for precise current measurement with a primary current rating of 160 A and a secondary current of 5 A. It supports turn ratios ranging from 60:5 to 630:5 A and features a 31 mm bore diameter, enabling a wide range of current sensing tasks.
This current transformer is housed in a self-extinguishing casing classified VO according to UL-94 for enhanced electrical safety. The device is compliant with stringent IEC and EN standards - IEC/EN 60044-1, IEC 61010-2, and IEC 61869-1 - ensuring reliable operation in industrial environments.
Designed for ease of installation, the transformer can be mounted via base, DIN rail, or busbar configurations. Wire sealable terminal covers allow secure connections and safeguard against tampering. Operating frequencies range from 50 Hz to 60 Hz with a maximum system voltage of 720 V AC.
With a width of 141 mm and a weight of 650 g, the Current Transformer provides a compact and robust solution for applications requiring accurate current measurement such as industrial automation, electrical power distribution, and process control systems.
Supports primary current ranges from 60 A to 630 A with 5 A secondary. Multiple mounting options: base, DIN rail, and busbar. Compliance with multiple IEC standards for safety and reliability. Self-extinguishing casing material rated VO to UL-94 standard.

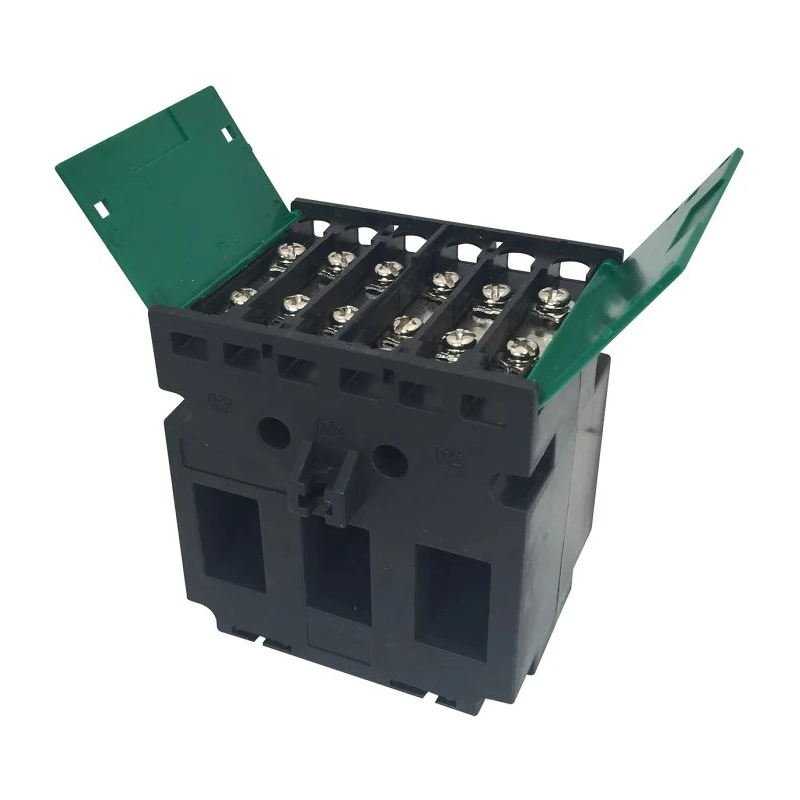

Wire sealable terminal covers for secure, tamper-proof terminals.
This product is manufactured in India and represents a high-quality solution for current sensing needs in industrial and electrical sectors. Explore more products in the Transformers category on EnvMart for comprehensive industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this model is 160 A, with a secondary current output of 5 A.
It supports primary current ranges from 60 A to 630 A.
The bore diameter of this transformer is 31 mm.
This current transformer can be mounted using base, DIN rail, or busbar configurations.
It supports a maximum system voltage of 720 V at 50-60 Hz operation.
The minimum operating frequency is 50 Hz, and the maximum is 60 Hz.
The transformer has a width of 141 mm and weighs 650 g.
It is compliant with IEC/EN 60044-1, IEC 61010-2, and IEC 61869-1 safety standards.
This model features screw-type terminals with wire sealable covers for secure connections.
This product is manufactured in India.
The turns ratio for this model ranges from 60:5 to 630:5 A.
It is suitable for applications requiring accurate current measurement in industrial automation, electrical power distribution, and process control systems.
