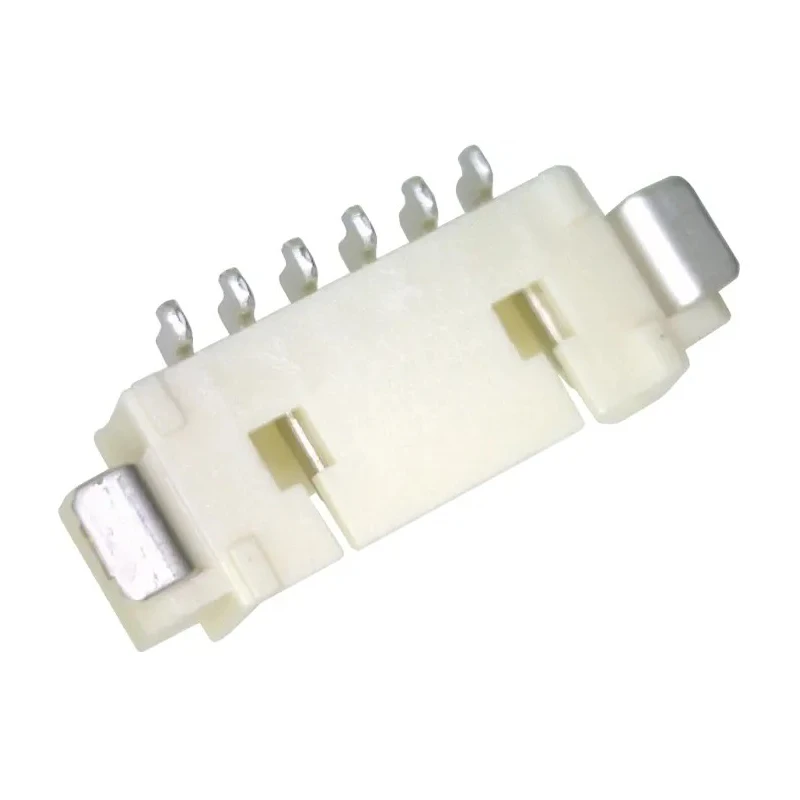

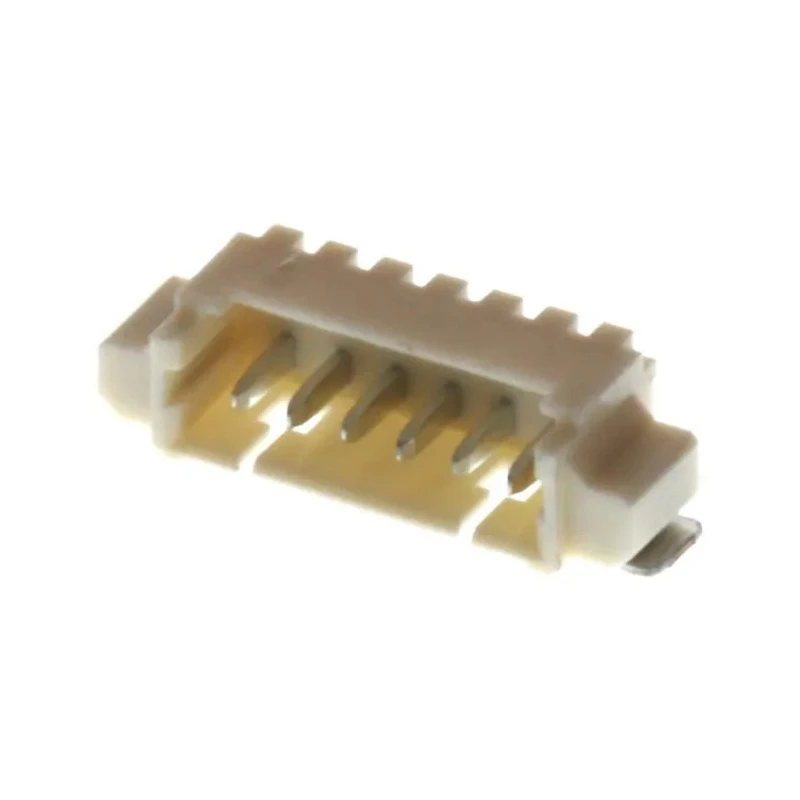

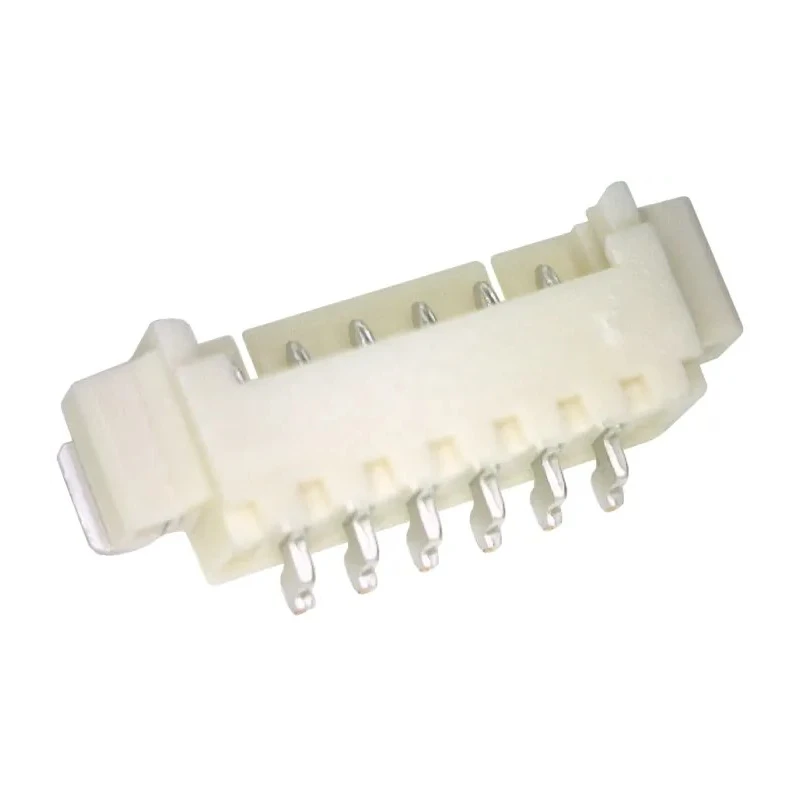

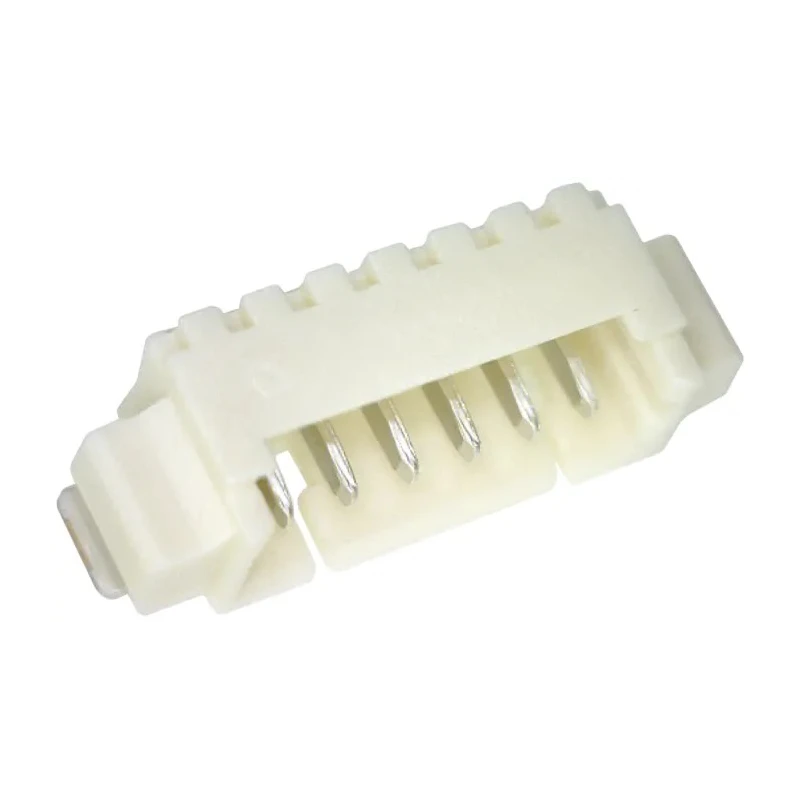

Molex PicoBlade Series Right Angle Surface PCB Header, 6 Contact(s), 1.25 mm Pitch, 1 Row, Shrouded 53261-0671

Molex 53261-0671 PicoBlade Series right angle surface PCB header is a high-performance connector designed for wire-to-board applications requiring a compact footprint and reliable electrical connection. Featuring a 1.25 mm pitch and 6 contacts arranged in a single row, this shrouded header is engineered to ensure robust mechanical and electrical integrity.

Its thermoplastic housing offers high heat resistance up to 105°C and impact durability, making it suitable for demanding industrial electronics and LCD circuit modules. The phosphor bronze contacts with tin plating provide efficient conductivity and corrosion resistance. The right angle orientation facilitates circuit board space saving and reduced signal interference.

This connector supports a current rating of 1A and voltage rating of 125V. It incorporates a friction locking mechanism that prevents accidental unmating and ensures stable connection even under vibration conditions. The lightweight design (approximately 0.2 g) reduces mechanical strain on the PCB assembly. The header complies with mechanical life standards of 30 mating cycles, confirming its reliability over the product lifespan.

The surface mount type termination uses solder for a secure attachment to the PCB, optimizing noise reduction and mechanical stability. The shrouded construction enhances electrical safety by preventing short circuits and protecting the contacts.

Shrouded right angle header with 6 male contacts and 1.25 mm pitch. Thermoplastic housing suitable for high temperature and impact resistance. Phosphor bronze contacts with tin plating for reliable conductivity. Current rating 1A and voltage rating 125V for efficient power handling.

Surface mount solder termination ensures strong PCB connection. Friction locking mechanism secures connection against vibration and mishandling. Lightweight and compact for space-saving PCB designs. Mechanical service life of 30 mating cycles for dependable performance.

Suitable for electronics manufacturing, industrial devices, and LCD modules. Explore the extensive range of Molex PCB connectors and other electronic components in EnvMart’s catalog for robust and efficient electronic assemblies.
