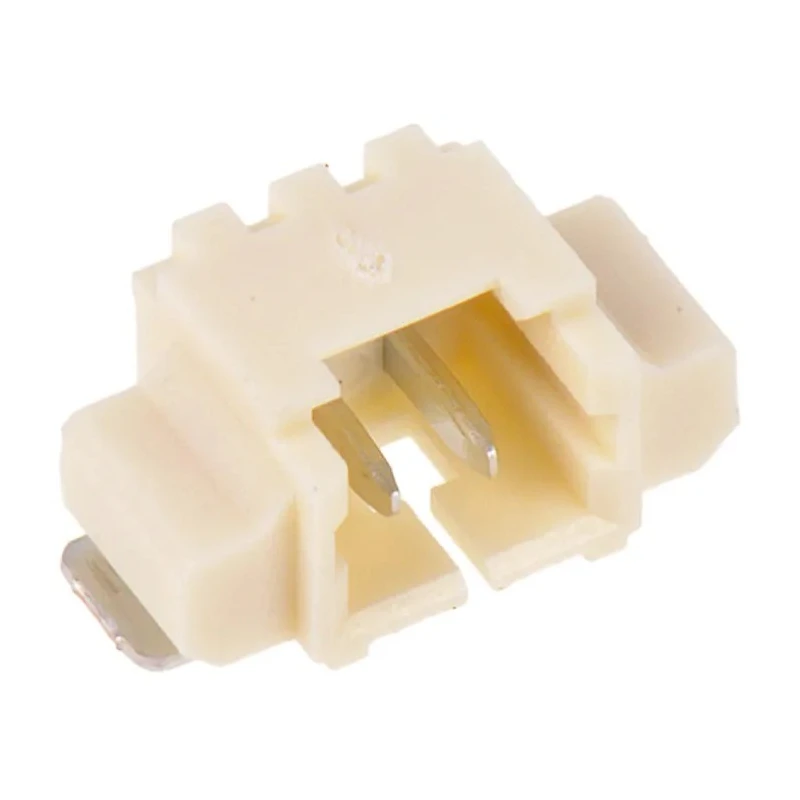

Molex PicoBlade Series Right Angle Surface PCB Header 2 Contacts 1.25 mm Pitch 1 Row Shrouded 53261-0271

Free Delivery in India | Lowest Global Shipping Charges

Molex PicoBlade Series Right Angle Surface PCB Header 2 Contacts 1.25 mm Pitch 1 Row Shrouded 53261-0271

Name: Molex PicoBlade Series Right Angle Surface PCB Header 2 Contacts 1.25 mm Pitch 1 Row Shrouded 53261-0271
Brand: Molex
SKU: 196522
Price: 0.54 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	125V
Brand	Molex
Orientation	Right Angle
Current	1A
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Phosphor Bronze
Series	PicoBlade
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1.25mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This PCB header features a shrouded housing for contact protection and reduced interference.
The housing is made of durable polyamide for high-temperature resistance.
Contacts are made of phosphor bronze with tin plating for corrosion resistance.
Supports a current rating of 1 ampere per contact and a voltage rating of 125 volts.
Right-angle orientation helps fit in tight or awkward spaces on PCB assemblies.
Friction lock mechanism ensures secure mating resistant to vibration and shock.
Solder termination type with tabs providing strain relief and secure PCB retention.
Operating temperature range from -40°C to +105°C suitable for industrial environments.

Product Description

Molex 53261-0271 PicoBlade Series Right Angle Surface PCB Header is a compact and reliable wire-to-board connector designed for low-power electronic applications. Featuring 2 contacts arranged in a single row with a fine 1.25 mm pitch, this header offers space savings on PCBs while maintaining a robust electrical connection.

The right-angle orientation optimizes space utilization by allowing connections parallel to the PCB surface. Its shrouded polyamide housing protects the contacts and minimizes electrical interference, making it suitable for harsh industrial and electronic environments such as automotive alarm systems, medical equipment, industrial process controls, and consumer devices like DVD players.

Durability is enhanced with phosphor bronze contact material plated with tin, providing corrosion resistance and longevity. The friction lock mechanism secures the connector during vibration or shock to prevent accidental unmating. Solder tabs offer strain relief and help maintain reliable PCB retention, reducing the risk of joint cracks.

Designed for use at a maximum voltage of 125V and current of 1A per contact, this PCB header is intended for low-power signal connections rather than high-power applications. Its operational temperature range from -40 to +105 degrees Celsius allows stable performance across common industrial conditions.

This header is part of the Molex PicoBlade family, known for compact wire-to-board interconnect solutions. Highly reliable locking mechanism prevents disconnections due to mishandling or vibration. Suitable in diverse settings such as automotive, industrial, medical, and consumer electronics.

Offers a space-efficient 1.25 mm pitch, providing up to 45% PCB space savings over traditional 2.0 mm systems. Molex’s quality ensures consistent performance and long service life. Explore more Molex PCB Headers and connectors in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
