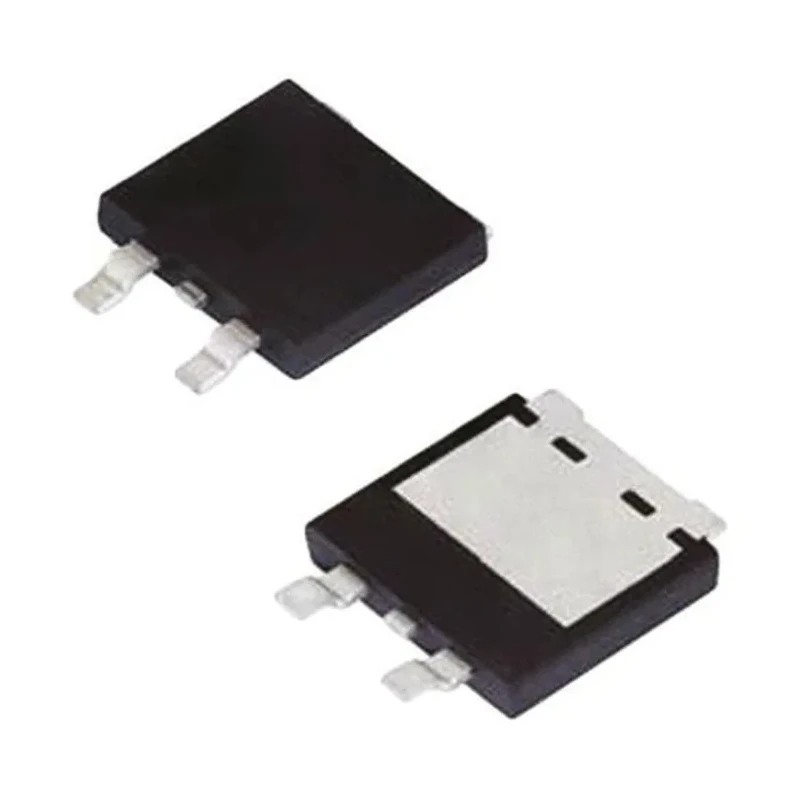

Vishay Schottky Diode TO-252 Surface Mount 45 V 35 A 3-Pin DPAK V35PW45HM3/I

Vishay V35PW45HM3/I is a high-performance Schottky diode designed for power electronics applications requiring reliable surface mounting and efficient rectification. This diode is housed in a TO-252 surface-mount package (3-pin DPAK), ideal for compact PCB layouts in industrial and commercial electrical circuits.

The device features a peak reverse repetitive voltage (Vrrm) rating of 45 V and can continuously conduct a forward current (If) of up to 35 A. Its low forward voltage drop of 620 mV minimizes power loss, improving energy efficiency and thermal management in semiconductor rectification applications. It supports operation in harsh environments with a temperature range from -40°C to 150°C, ensuring suitability for automotive, industrial, and power supply design uses.

The diode’s peak non-repetitive forward surge current (Ifsm) of 260 A allows it to withstand transient surges and short duration overloads safely. Its dimensions measure 6.32 mm length, 6.72 mm width, and 1.4 mm height, meeting standard industry footprint requirements.

This single configuration Schottky diode is part of the Vishay V35X series, well-known for reliability in discrete semiconductor applications. It does not carry automotive standards or approvals but complies with general surface-mount semiconductor requirements. The product is manufactured in China and supplied in new condition, suitable for electronic component inventories and manufacturing.

Applications of Vishay V35PW45HM3/I include power rectification in power supplies, battery chargers, DC-DC converters, photovoltaic systems, and other electrical circuits demanding efficient low-loss diodes.

Surface mount diode with TO-252 package type ensures compact PCB integration. Peak reverse repetitive voltage rating of 45 V supports robust reverse voltage tolerance. Maximum continuous forward current of 35 A enables high current rectification applications.

Low forward voltage drop of 620 mV improves efficiency in power circuits. Wide operating temperature range from -40°C to 150°C for diverse environments. Includes 3-pin DPAK configuration for easy mounting and connectivity.

Peak non-repetitive forward surge current of 260 A allows handling transient overloads. Length of 6.32 mm, width of 6.72 mm, and height of 1.4 mm fits standard footprint designs. Single diode configuration from the V35X series designed for power electronics.

Manufactured in China and provided in new condition.
