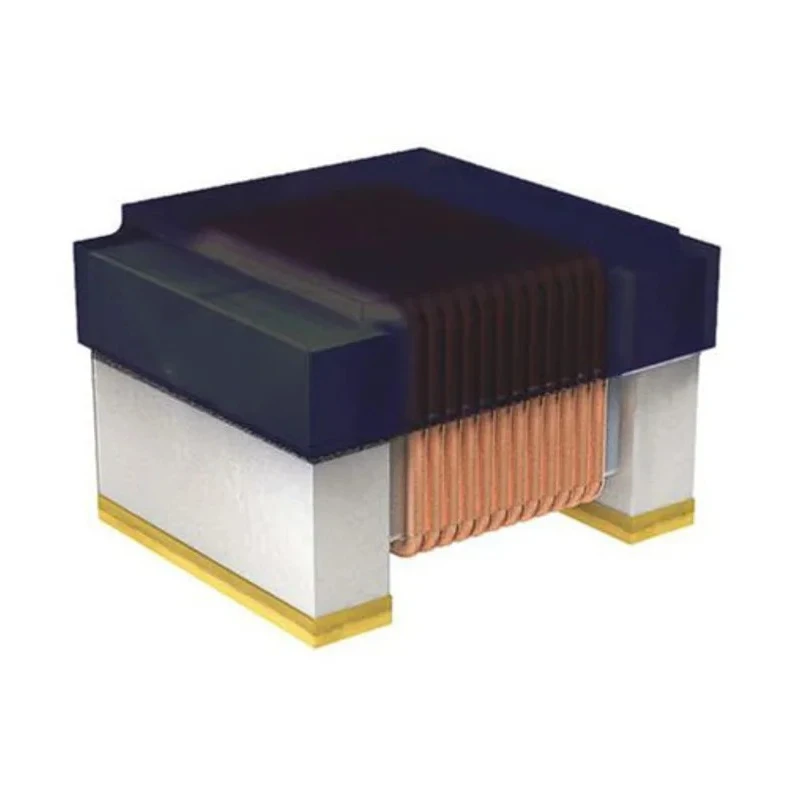

Wurth Elektronik Wirewound Surface Mount Inductor WE-RFI Series 10 μH ±5 % 150 mA 1008A 744762410A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.6mm |
| Length | 2.5mm |
| Model | 744762410A |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | WE-RFI |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 1008A |
| Maximum DC Current | 150mA |
| Maximum DC Resistance | 3.5Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 33MHz |
| Minimum Quality Factor | 15 |
| Inductor Construction | Wirewound |
Key Features
- The inductor has a compact 1008A package size with dimensions 2.5 mm length, 1.6 mm height, and 2.5 mm depth.
- It incorporates a ferrite core and wirewound construction designed for low frequency RF and RFID applications.
- Operating temperature range is from -40°C to 85°C, suitable for various industrial environments.
- Maximum DC resistance is 3.5 Ω, and the device achieves a minimum quality factor of 15 for efficient performance.
- It has a maximum self-resonant frequency of 33 MHz and complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
- Packaging is tape and reel for easy surface mount assembly.
Product Description
The Wurth Elektronik 744762410A is a wirewound surface mount inductor from the WE-RFI series delivering a nominal inductance of 10 μH with a tolerance of ±5 %. This unshielded component utilizes a ferrite core to provide reliable inductive properties with minimal acoustic and leakage flux noise, making it ideal for low frequency RF and RFID (keyless entry) applications.
Configured in a space-saving 1008A package with dimensions of 2.5 mm length, 1.6 mm height, and 2.5 mm depth, this inductor supports a maximum DC current rating of 150 mA, and features a maximum DC resistance of 3.5 Ω. It has a minimum quality factor of 15 and a maximum self-resonant frequency of 33 MHz ensuring optimal performance in demanding electronic environments.
Its operating temperature range from -40°C to +85°C enables suitability for a diverse range of industrial, automotive, and commercial electronics applications. The product complies fully with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards, affirming its environmental and quality credentials.
The inductor is supplied on tape and reel packaging facilitating efficient automated surface mount technology assembly processes. The compact 1008A footprint enables space-efficient PCB layouts. Ferrite core construction reduces noise and interference in sensitive circuits.
Wide temperature range supports industrial and automotive uses. Industry-approved standards compliance ensures consistent quality. Tape and reel packaging supports high-volume manufacturing throughput.
This Wurth Elektronik WE-RFI series inductor is well suited for designers and engineers working within electronics manufacturing, telecommunications, automotive, and embedded system sectors seeking reliable inductive components for RF noise filtering or power management.
Explore the full range of Inductors and passive components from Wurth Elektronik and other leading brands on EnvMart to meet your precise engineering specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has a nominal inductance of 10 μH with a tolerance of ±5 %.
This model has a compact package size of 2.5 mm in length, 1.6 mm in height, and 2.5 mm in depth.
The maximum DC current rating for this inductor is 150 mA.
It has a maximum self-resonant frequency of 33 MHz.
The operating temperature range is from -40°C to +85°C.
The maximum DC resistance is 3.5 Ω.
This inductor utilizes a ferrite core material.
It complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
The minimum quality factor is 15.
The inductor is supplied on tape and reel packaging, facilitating easy surface mount assembly.
The inductor features a wirewound construction.
It is designed for low frequency RF and RFID applications, such as keyless entry systems.
