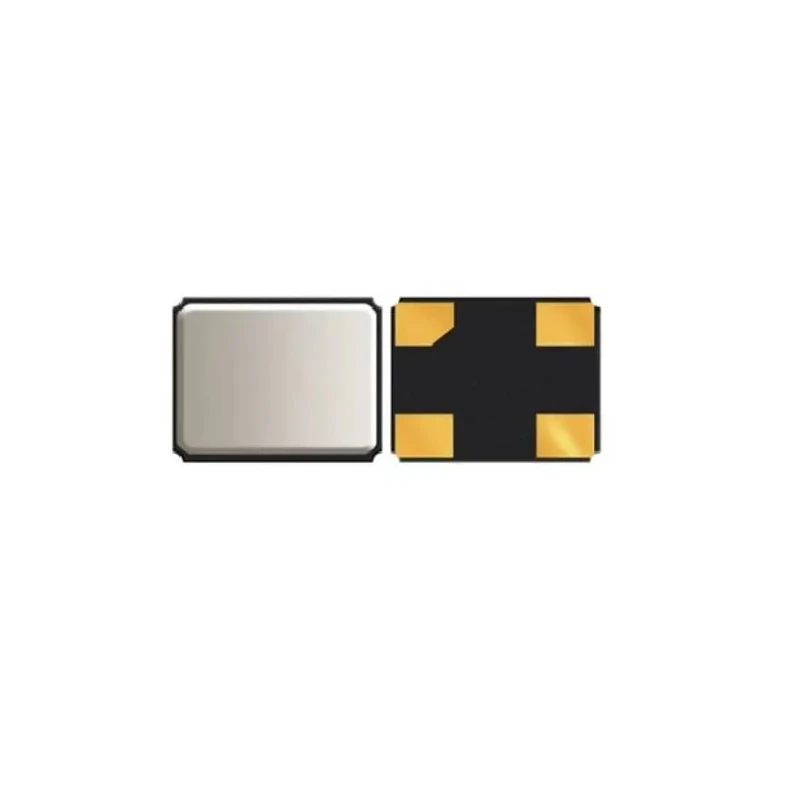

Abracon 25 MHz Surface Mount Crystal 8 pF Load Capacitance 4-Pin ABM11W Series ABM11W

Abracon ABM11W 25 MHz Surface Mount Crystal is a high precision quartz crystal optimized for compact and height-constrained electronic designs. With a standard frequency of 25 MHz and ±10 ppm frequency tolerance, it provides stable oscillator signals for a wide range of devices.

This 4-pin ABM11W package crystal measures 2 mm in length, 1.6 mm in width, and only 0.5 mm in height, making it ideal for space-saving PCB applications in consumer electronics, communication modules, and industrial instrumentation.

The crystal features a load capacitance of 8 pF and a series resistance of 100 Ω, contributing to low power dissipation and high signal integrity. It supports a broad operating temperature range from -40°C up to 125°C, ensuring reliable operation under diverse environmental conditions.

Compliance with RoHS standards guarantees environmentally safe manufacturing processes. It is packaged in tape and reel format, enabling efficient pick-and-place assembly for modern manufacturing lines.

This crystal is suitable for industrial electronic applications including communication modules, IoT devices, Bluetooth and Bluetooth Low Energy applications, sensor modules, and other digital circuits requiring precise frequency control.

Operates at 25 MHz standard frequency ensuring reliable oscillator performance. Surface mount package with 4 pins designed for low profile PCB integration. Load capacitance of 8 pF compatible with modern circuitry requirements.

Compact dimensions: length 2 mm, width 1.6 mm, height 0.5 mm. Series resistance of 100 Ω offers efficient signal quality. Wide operating temperature range from -40°C to 125°C for robust applications. RoHS compliant to meet environmental and safety standards.

Tape and reel packaging suitable for automated assembly processes. Explore the Abracon range of Crystal Units and oscillators at EnvMart for industrial and commercial electronics engineering solutions.
