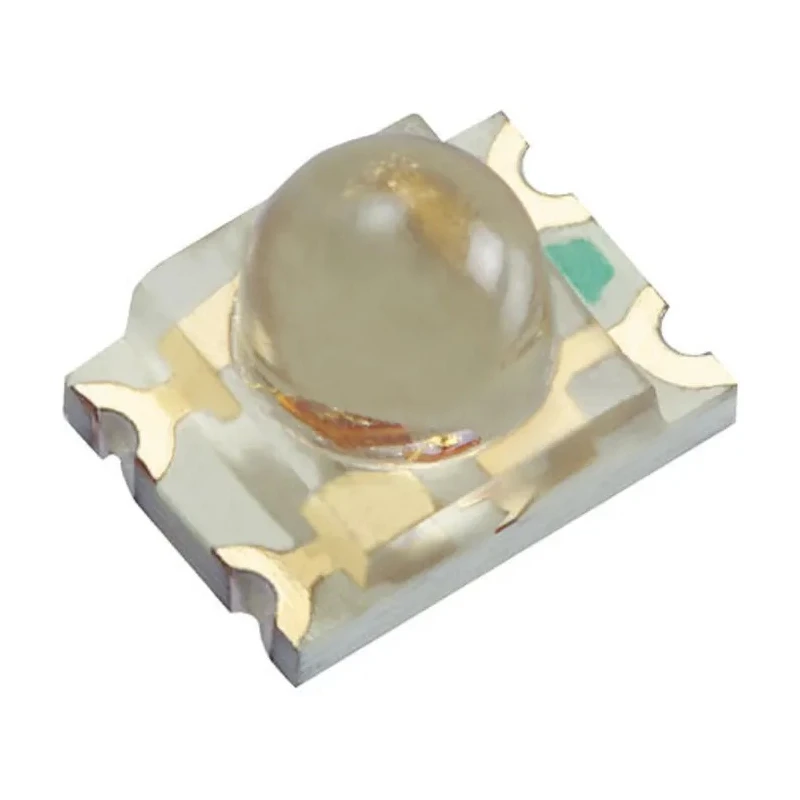

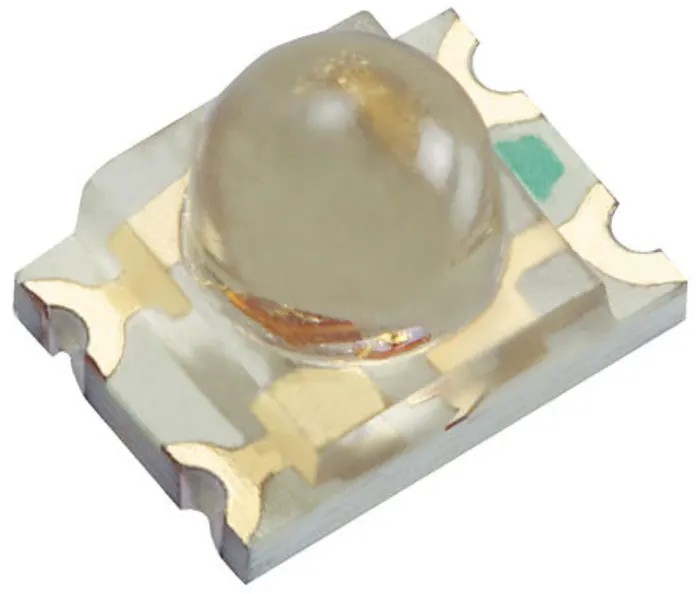

Kingbright 2.5 V Green, Red LED 3224 Surface Mount KPBD-3224ESGC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Dimensions | 3.2 x 2.4 mm |
| Model | KPBD-3224ESGC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Number Of Leds | 2 |
| Maximum forward current | 30mA |
| Viewing angle | 20 ° |
| Package Type | 3224 |
| Standards/Approvals | RoHS |
| LED Colour | Green, Red |
| Dominant Wavelength | 617nm |
| Forward Voltage | 2.5V |
| Number of Pins | 4 |
| LED Luminosity | 55 mcd, 70 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3.2 x 2.4 x 2.4 mm |
| Lens Shape | Dome |
Key Features
- The LED features a standard 3224 (1209) package with a dome lens.
- It has a maximum forward current of 30 mA and a maximum power dissipation of 75 mW.
- The device contains two LEDs and four pins designed for surface mounting.
- The viewing angle is 20 degrees with a lens dimension of 3.2 x 2.4 x 2.4 mm.
- The LED luminosity is rated at 55 mcd for green and 70 mcd for red.
- It complies with RoHS standards, ensuring safe use in electronic devices.
- The dominant wavelength of the emitted light is 617 nm.
- Packaging is supplied in tape and reel for efficient automated assembly.
Product Description
Kingbright KPBD-3224ESGC is a bi-color LED designed for surface mount applications with a forward voltage rating of 2.5 V and low power consumption, suitable for indicator and backlighting uses in electronic devices.
This LED is housed in the 3224 (1209) package size, featuring a clear dome-shaped lens that provides a focused viewing angle of 20 degrees, optimal for visual indication in tight spaces.
The device supports a maximum forward current of 30 mA and dissipates up to 75 mW of power, making it energy efficient for various industrial and consumer electronics applications.
With two LEDs and four pins, this component is suitable for surface mounting on PCBs and is supplied in tape and reel packaging, enabling streamlined manufacturing and high-volume assembly.
Emitting green and red light with luminosities of 55 mcd and 70 mcd respectively, it is ideal for use in displays, instrumentation, control panels, and automotive indicators. Standard 3224 (1209) SMT package with dome lens.
Bi-color LED in green and red. Forward voltage: 2.5 V with a maximum forward current of 30 mA. Viewing angle: 20 degrees for precise brightness control. RoHS compliant for environmental safety. Compact lens dimensions: 3.2 x 2.4 x 2.4 mm.
Suitable for electronic indicators and backlighting applications. Accessory in manufacturing due to tape and reel packaging.
Kingbright LEDs are widely used in industrial, consumer electronics, automotive, and instrumentation sectors. EnvMart offers this high-quality KPBD-3224ESGC bi-color LED for advanced lighting and signaling solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this LED is 30 mA.
The lens dimensions are 3.2 x 2.4 x 2.4 mm.
The viewing angle is 20 degrees, which is optimal for visual indication in tight spaces.
This model emits green and red light.
The maximum power dissipation for the KPBD-3224ESGC is 75 mW.
The dominant wavelength of the emitted light is 617 nm.
It is supplied in tape and reel packaging, which facilitates efficient automated assembly.
This model contains two LEDs.
The forward voltage rating is 2.5 V.
This LED is designed for surface mounting on PCBs.
Yes, it complies with RoHS standards, ensuring safe use in electronic devices.
The luminosity is rated at 55 mcd for green and 70 mcd for red.
