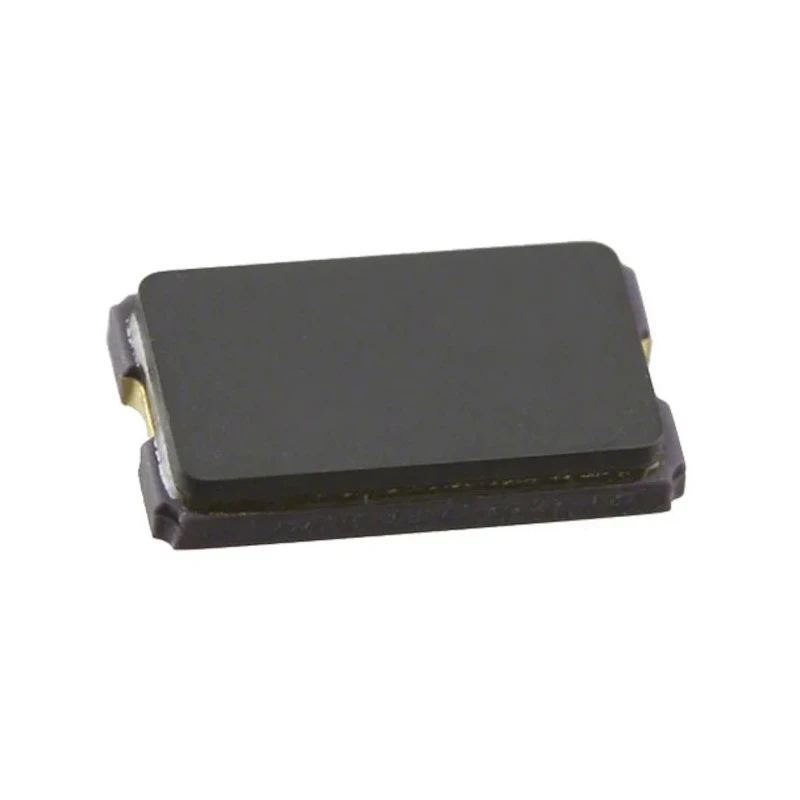

Abracon 25 MHz Surface Mount Crystal ±20 ppm 18 pF Load Capacitance Ceramic Package ABM3

Abracon ABM3-25.000MHZ-D2Y-T is a 25 MHz surface mount crystal from the ABM3 series, designed for high precision frequency control in electronic applications. Featuring a ceramic package hermetically sealed with glass, this miniature SMD crystal ensures stability and reliability with frequency tolerance ±20 ppm and stability ±30 ppm.

The crystal operates within a temperature range of -40°C to 85°C, making it suitable for demanding industrial and commercial environments. The ABM3 series supports fundamental AT-cut or 3rd overtone mode and provides a series resistance of 30Ω, optimized for wireless communications including cellular telephones, pagers, PCMCIA, and test equipment.

Its compact dimensions of 5 mm length, 3.2 mm width, and 1.3 mm height enable easy integration in surface mount assembly processes. With a load capacitance of 18 pF and packaging on tape and reel, it is ideal for automated PCB assembly lines.

The hermetically sealed ceramic package ensures enhanced durability and precision. Frequency tolerance ±20 ppm maintains timing accuracy in electronic circuits. Wide operating temperature range supports diverse industrial applications.

Compliance with RoHS and REACH directives guarantees environmental and health safety. Designed for telecommunications, wireless devices, and test instruments. Compact surface mount package facilitates high-density PCB design.

Available on tape and reel packaging supports large-scale manufacturing.

This Abracon crystal unit is widely used in industrial, communication, and electronic manufacturing sectors. For users seeking precise and reliable frequency oscillators for their applications, the ABM3-25.000MHZ-D2Y-T is an excellent choice providing stability, quality, and compliance with international standards.
