MEAN WELL IP67 5 Output LED Driver, 56V, 75W, 1.4A Potentiometer Dimming AC-DC LED Driver

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL IP67 5 Output LED Driver, 56V, 75W, 1.4A Potentiometer Dimming AC-DC LED Driver

Name: MEAN WELL IP67 5 Output LED Driver, 56V, 75W, 1.4A Potentiometer Dimming AC-DC LED Driver
Brand: MEAN WELL
SKU: 169957



Category LED Driver Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Model	IP67
IP Rating	IP67
Mount Type	Screw
Series	XLG-75
Configuration	Enclosed
Sub Type	LED Driver
Operating Modes	Constant Current
Number of outputs	5
Terminal type	Wire
Protection Functions	OVP/SCP/OCP/OTP
Maximum Output Power	75W
Input Voltage	100, 305V
Output Voltage	56V
Power Dissipation	0.5W
Standards/Approvals	UL, SELV, ENEC, EAC, CE, CCC, CB, BIS
Dimming Operation	Potentiometer
Primary Type	AC-DC
Driver Current	1.4A
LED Voltage	100, 305V ac

Key Features

Operates from 100 to 305VAC input voltage range.
IP67 rated metal enclosure suitable for outdoor use.
Provides 5 outputs with constant current operation for LED lighting.
Equipped with protective functions including OVP, SCP, OCP, and OTP.
Fanless design with high efficiency up to 91% for reliable thermal performance.
Mounts via screw for secure installation.
Compatible with various industrial and commercial LED lighting applications.
Conforms to UL, SELV, ENEC, EAC, CE, CCC, CB and BIS safety standards.

Product Description

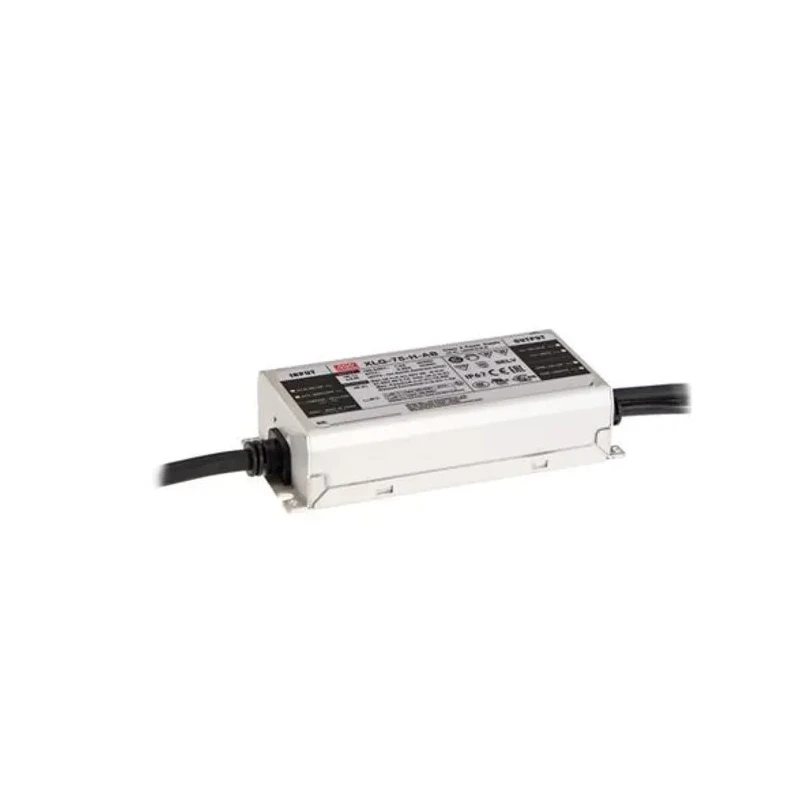

MEAN WELL XLG-75-H-AB is a high-performance IP67 rated LED driver designed for efficient LED lighting power management, delivering a constant current of 1.4A at 56V output voltage and a maximum power of 75W.

This driver operates from a wide AC input voltage range of 100 to 305V, making it suitable for diverse electrical environments. The enclosed robust metal casing with IP67 ingress protection ensures durability and protection against dust and water, ideal for outdoor and demanding industrial conditions.

Featuring a potentiometer for dimming operation, the XLG-75-H-AB model allows smooth brightness adjustment in LED systems. The fanless design fosters silent operation with high efficiency reaching up to 91%, supporting case temperatures from 40℃ to +90℃ under free air convection.

Wide input voltage range from 100 to 305V AC supports various regions and power conditions. IP67 rated metal case provides excellent protection for outdoor and harsh environments. Constant current output of 1.4A ensures stable LED illumination and longevity.

Includes protection mechanisms such as over-voltage, short circuit, over-current, and over-temperature prevention. Potentiometer dimming enables adjustable LED brightness control for custom applications. Mount type is screw, allowing secure mounting in LED lighting assemblies.

Complies with international safety and quality standards including UL, CE, ENEC, and BIS.

This LED driver is widely used in industrial, commercial, architectural, and outdoor LED lighting applications where reliable constant current and robust protection features are critical.

Package contents typically include the LED driver unit ready for installation. The series XLG-75 offers models that cater to currents ranging from 700mA to 5000mA for tailored LED power solutions.
