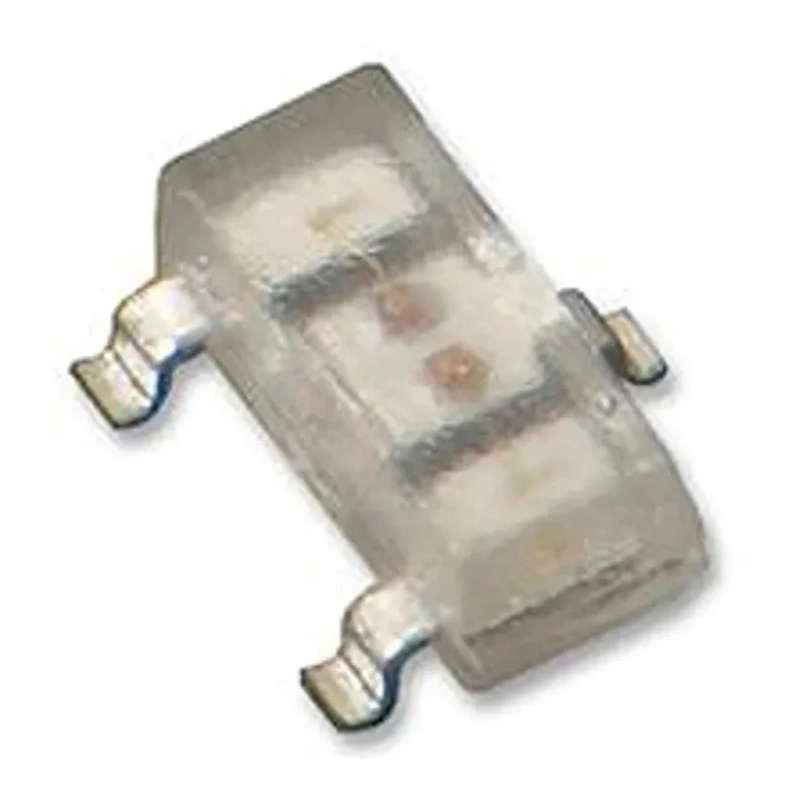

Kingbright 2.5 V Green, Red LED SOT-23 Surface Multi-Colour LED KM-23ESGC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KM-23ESGC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | Multi-Colour LED |
| Number Of Leds | 2 |
| Maximum forward current | 30mA |
| Viewing angle | 140 ° |
| Package Type | SOT-23 |
| Standards/Approvals | RoHS |
| LED Colour | Green, Red |
| Dominant Wavelength | 625nm |
| Forward Voltage | 2.5V |
| Number of Pins | 3 |
| LED Luminosity | 12 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3 x 1.3 mm |
| Lens Shape | Rectangular |
Key Features
- Features surface mount SOT-23 package for efficient PCB integration.
- Maximum forward current rating of 30 mA ensures power efficiency.
- Provides a viewing angle of 140 degrees for broad light dispersion.
- Includes 2 LEDs in green and red colours with 12 mcd luminosity.
- Compact lens dimensions of 3 x 1.3 mm with clear rectangular lens shape.
- Maximum power dissipation of 75 mW maintaining long lifespan and reliability.
- Complies with RoHS standards for environmental safety.
- Designed with 3 pins for surface mount applications.
Product Description
Kingbright KM-23ESGC is a high-quality multi-colour LED designed for surface mount applications in electronics. Operating at a forward voltage of 2.5 V and featuring two LEDs emitting green and red light, it offers versatile illumination options within a compact 3.0 x 1.3 mm SOT-23 package. This rectangular, clear lens LED has a wide 140° viewing angle and provides a luminous intensity of 12 mcd, suitable for display, indicator, and illumination uses in industrial and commercial electronic equipment.
This LED supports a maximum forward current of 30 mA and a maximum power dissipation of 75 mW, ensuring energy-efficient operation and a long service life. The design complies with RoHS environmental standards and is supplied in tape & reel packaging for automated assembly processes. Its surface mount configuration with 3 pins facilitates easy PCB mounting in electronic assemblies.
Kingbright KM-23ESGC LEDs find application in various industrial sectors including electronic displays, control panels, instrumentation, and consumer electronics. Their robust design ensures reliable performance essential for manufacturing and testing environments requiring consistent visual signalling.
Surface mount SOT-23 package enhances compactness and ease of assembly. Green and red LED colours provide multi-colour lighting options. Low power consumption and long operational life improve efficiency. Clear lens delivers bright and focused light output.
Conforms to RoHS directives supporting eco-friendly manufacturing. Suitable for automated industrial production with tape & reel packaging. Wide viewing angle supports broad area illumination. Compact form factor fits in dense PCB layouts.
Explore detailed Kingbright LED products in EnvMart for advanced electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating for this model is 30 mA, ensuring efficient power usage.
It has a viewing angle of 140 degrees, allowing for broad light dispersion.
The lens dimensions are 3 x 1.3 mm, featuring a clear rectangular shape.
This model contains 2 LEDs, one emitting green light and the other emitting red light.
The luminous intensity for this LED is 12 mcd, providing adequate brightness for various applications.
The forward voltage for this LED is 2.5 V, which is standard for its operation.
The maximum power dissipation is 75 mW, which helps maintain its longevity and reliability.
It is supplied in tape & reel packaging, suitable for automated assembly processes.
This LED complies with RoHS standards, ensuring it meets environmental safety requirements.
This model features a surface mount configuration, which facilitates easy PCB integration.
It is suitable for use in electronic displays, control panels, instrumentation, and consumer electronics.
This LED is designed with 3 pins for surface mount applications.
