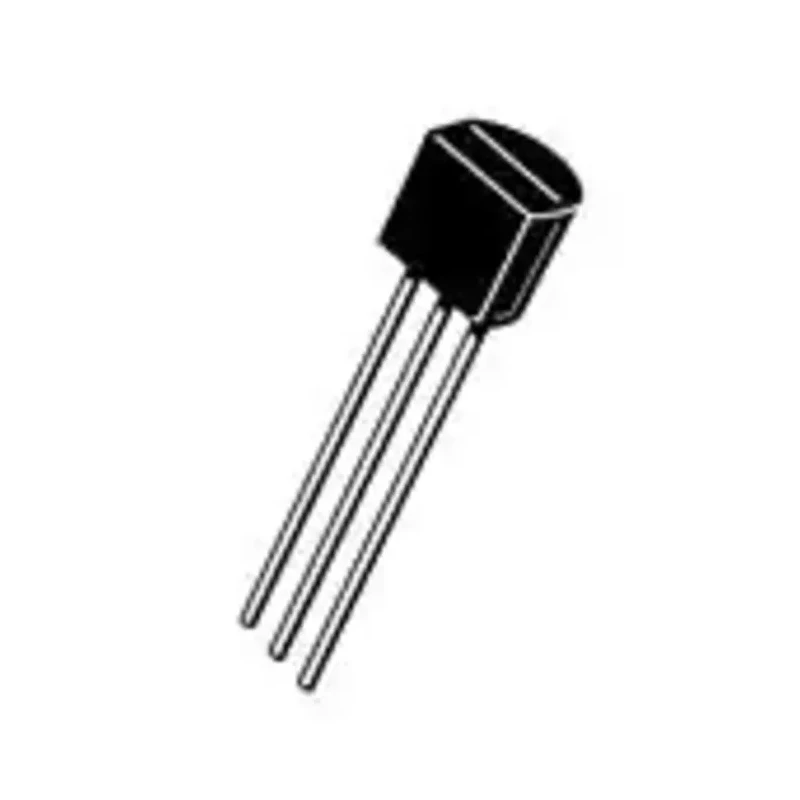

onsemi Adjustable Linear Voltage Regulator TO-92 3-Pin 1.2V to 37V 1.5A LM317LZG

onsemi LM317LZG is an adjustable linear voltage regulator housed in a TO-92 3-pin package that provides a flexible output voltage range from 1.25 V to 37 V with a robust output current rating of 1.5 A. Designed for through-hole mounting, this device features a positive polarity and low quiescent current of 3.5 mA, ensuring efficient operation with reduced power loss.

The compact physical size (5.2 mm length, 4.19 mm width, and 5.33 mm height) allows integration into various electronic circuit boards and devices where space is critical. It includes inherent protections like short-circuit current limiting and thermal shutdown to enhance reliability and device life.

Its compliance with the AEC-Q100 automotive standard indicates suitability for use in demanding automotive and industrial environments characterized by wide temperature ranges and strenuous electrical conditions.

This voltage regulator is commonly used for on-card regulation and programmable output voltage or current applications, including power management IC modules in industrial, automotive, and consumer electronics.

Adjustable output voltage range between 1.25 V to 37 V. Maximum output current of 1.5 A suitable for various power regulation needs. Positive polarity with through-hole mount type for easy PCB insertion. Low quiescent current of 3.5 mA minimizes power consumption.

Compact TO-92 package with dimensions 5.2 mm × 4.19 mm × 5.33 mm. Includes short-circuit current limiting and thermal protection. Rated for operating temperatures up to 125°C. Complies with automotive standard AEC-Q100.

This component is ideal for industrial, automotive, electronics manufacturing, and power management applications where adjustable and reliable voltage regulation is required. EnvMart's Electronics & Electricals category offers this onsemi LM317LZG as part of the Power Management ICs - Voltage Regulator catalog, supporting design and production needs.
