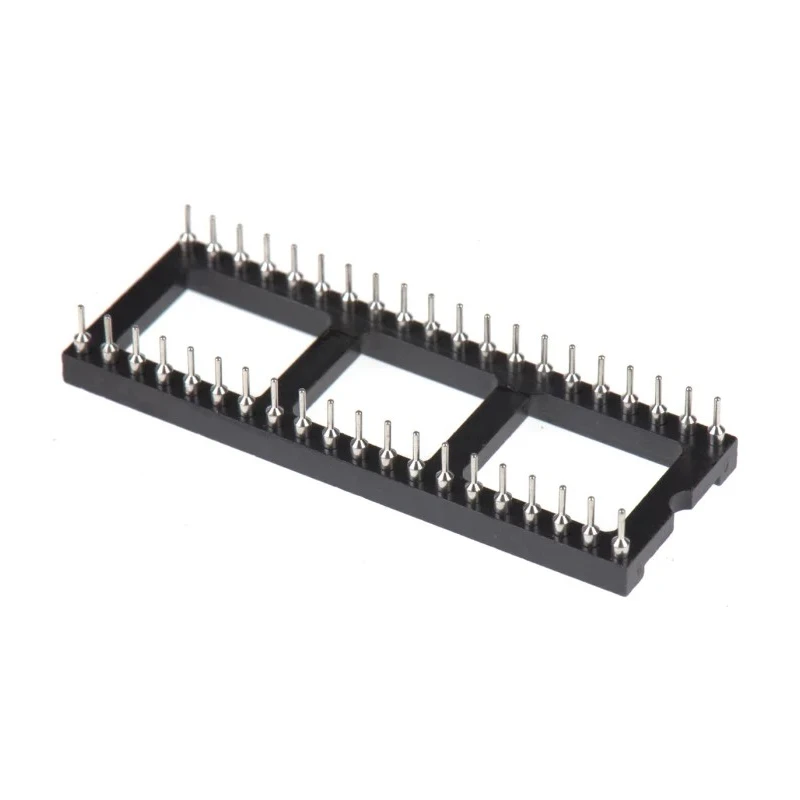

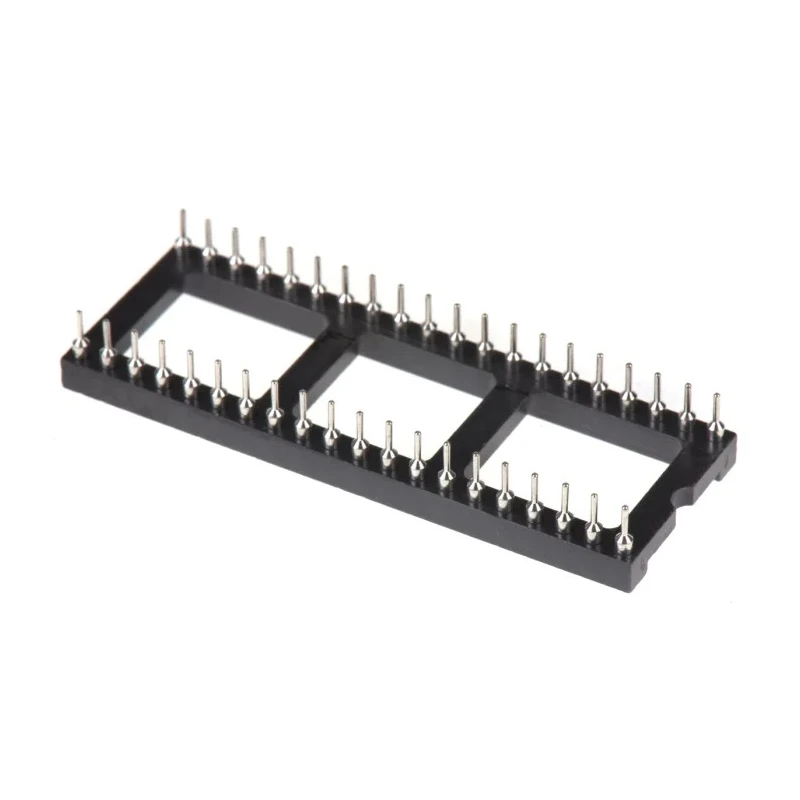

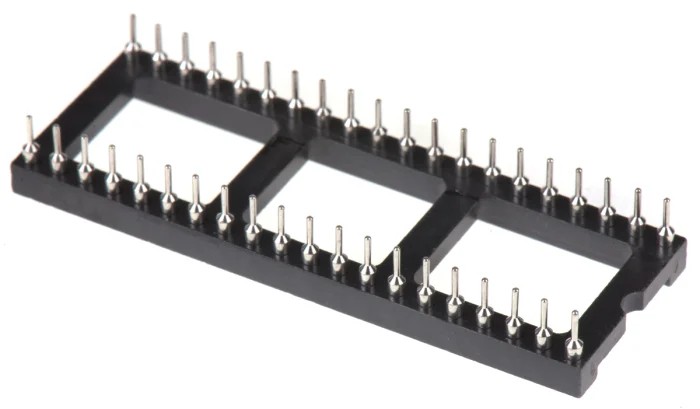

Winslow 2.54 mm Pitch Vertical 40 Way Through Hole Turned Pin Open Frame DIL Socket 5A W30540TTRC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Winslow |
| Orientation | Vertical |
| Current | 5A |
| Temperature range | -55°C to +150 °C |
| Frame Type | Open Frame |
| Length | 50.72mm |
| Model | W30540TTRC |
| Depth | 17.66mm |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Beryllium Copper Alloy |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 40 |
| Pin Type | Turned |
| Row Width | 15.24mm |
Key Features
- Features 40 contact points with a 2.54 mm pitch for precise PCB interfacing.
- Constructed with beryllium copper alloy contacts and polybutylene terephthalate housing.
- Designed for vertical orientation and solder termination methods.
- Contact surfaces are tin plated over nickel and brass materials for durability.
- Supports operating temperatures from -55°C to 150°C ensuring reliability in various environments.
- Open frame construction with a 15.24 mm row width offers easy inspection and maintenance.
- Low profile design enhances compact PCB assembly.
- Suitable for industrial electronics applications including power connectors and IC socket adapters.
Product Description
Winslow W30540TTRC is a 2.54 mm pitch, vertical 40 way through hole turned pin open frame DIL socket designed for reliable electronic component interconnection. Rated for 5A current, it supports robust connectivity in demanding industrial and commercial electronics environments.
The socket features 40 contacts constructed from beryllium copper alloy with a four-finger, tin over nickel plating ensuring low resistance and long life. The open frame housing made of polybutylene terephthalate provides mechanical strength while allowing visual inspection of the contacts.
Its vertical orientation and solder termination type make it ideal for PCB mounting in automated assembly lines. The low profile design ensures compactness, while the 15.24 mm row width facilitates broad industry compatibility in electronic devices.
Operating temperature ranges from -55°C to +150°C, allowing durability in harsh temperature conditions common in industrial, manufacturing, and laboratory applications. Certifications are not specified, but the socket adheres to standard industrial quality materials, offering dependable performance.
Features 40 contact points with 2.54 mm pitch for precise fitment. Beryllium copper alloy contacts with tin plating ensure conductivity. Open frame housing allows easy maintenance and inspection. Vertical orientation for through-hole mounting on printed circuit boards.
Solder termination suitable for reliable, permanent assembly. Wide temperature tolerance from -55°C to 150°C for versatility. Compact dimensions optimize PCB space utilization. Rated 5A current capacity suitable for various electronic circuits.
This DIL Socket is well suited for use in electronics manufacturing, industrial power connector assemblies, and laboratory equipment requiring stable and durable IC socket solutions.
Explore more electronic components and industrial connectors in the Electronics Components category at EnvMart for comprehensive product options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current capacity of 5A, making it suitable for various electronic circuits.
The contact points in this DIL socket feature a pitch of 2.54 mm, allowing for precise fitment on PCBs.
It supports an operating temperature range from -55°C to +150°C, ensuring reliability in various environments.
The contacts are made from beryllium copper alloy, while the housing is constructed from polybutylene terephthalate.
This DIL socket features a total of 40 contact points, facilitating robust connectivity.
It utilizes a solder termination type, suitable for reliable and permanent assembly on printed circuit boards.
The dimensions are 50.72 mm in length, 17.66 mm in depth, and 4.6 mm in width, allowing for compact PCB assembly.
The row width of the Winslow W30540TTRC is 15.24 mm, which facilitates compatibility in electronic devices.
It features an open frame design, which allows for easy inspection and maintenance of the contacts.
This model is suitable for industrial electronics applications, including power connectors and IC socket adapters.
The pin type in this DIL socket is turned pin, which contributes to its robust connectivity.
The country of origin for this DIL socket is India.
