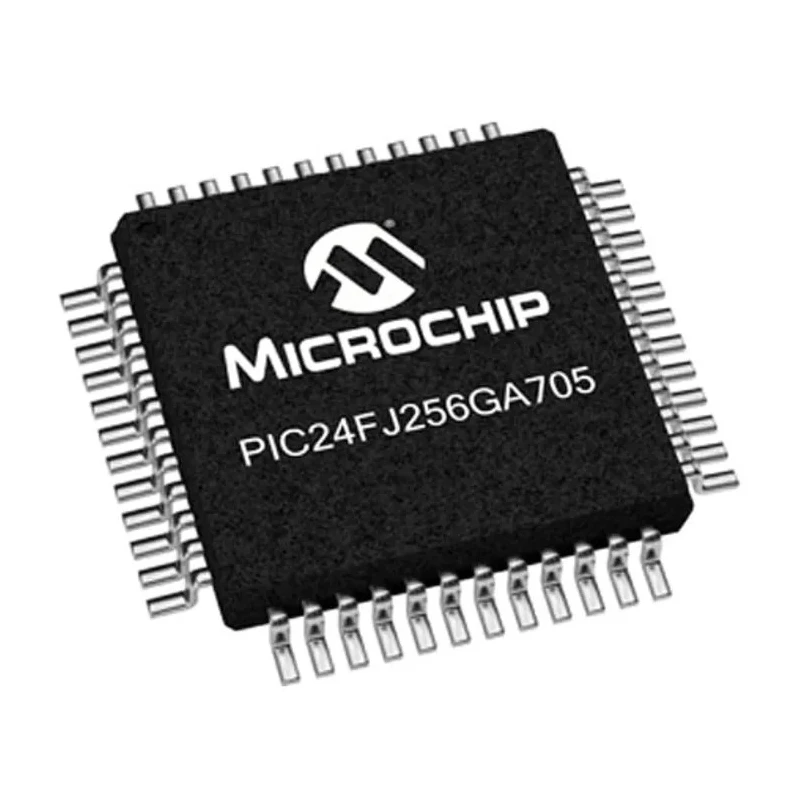

Microchip PIC24FJ256GA705-I/PT 16-bit Microcontroller, PIC24FJ Series, 32 MHz, 256 kB Flash, TQFP, 48 Pin
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 7mm |
| Model | PIC24FJ256GA705-I/PT |
| Width | 7mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| Communications | 6 x UART, 4 x SPI and 3 x I2C |
| Pin Count | 48 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 256kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Number of Timers | 1 |
| Instruction Set Architecture | Modified Harvard |
| ADCs | 10 x 10/12 Bit |
| Program Memory Type | FLASH |
| Charge Time Measurement Unit | Up to 24 channels |
Key Features
- Operates at up to 32 MHz, supporting rapid data processing and responsiveness.
- Provides 256 kB Flash program memory and 16 kB SRAM for robust application storage.
- Features 48-pin TQFP surface mount package for compact and flexible PCB integration.
- Includes a modified Harvard architecture, delivering efficient instruction execution.
- Integrates up to 24 ADC channels (10/12-bit), 3 analogue comparators, and a 10-bit DAC.
- Operates within a wide voltage range (2V to 3.6V) and temperature (-40°C to 85°C), ideal for demanding environments.
Product Description
Microchip PIC24FJ256GA705-I/PT 16-bit Microcontroller is a compact and feature-rich device engineered for embedded systems requiring substantial processing power, versatile memory management, and advanced interfacing options. This microcontroller belongs to the PIC24FJ series and is packed with a modified Harvard architecture, offering efficient parallel data and instruction operations.
With a 32 MHz maximum clock frequency, it achieves high-speed performance suitable for industrial, automotive, and scientific applications. The MCU comes with a generous 256 kB Flash memory for program storage and 16 kB SRAM for rapid data handling, making it reliable for complex tasks and multi-featured designs.
The device is housed in a 48-pin TQFP surface-mount package, enabling flexible integration into diverse PCB layouts and space-constrained projects. Physical dimensions include a length and width of 7 mm each, and a height of 1.05 mm, making it appropriate for portable and embedded systems.
Advanced features such as a 10/12-bit ADC with up to 24 channels, three programmable analogue comparators, a 10-bit DAC, and a charge time measurement unit provide broad sensing and signal processing capabilities. Embedded cryptographic engine and XLP (Extreme Low Power) technology ensure secure and energy-efficient operation, critical in modern connected applications.
Communication is enabled via multiple interfaces - 6 UARTs, 4 SPIs, and 3 I2Cs - offering robust connectivity for peripheral integration and system networking. The microcontroller operates reliably within 2 V to 3.6 V supply voltages and an extended temperature range of -40°C to 85°C.
Its AEC-Q100 automotive standard compliance makes it suitable for automotive diagnostics, control systems, and environments requiring stringent reliability. Applications span industrial automation, scientific instrumentation, automotive electronics, IoT edge devices, and advanced consumer products.
Powerful processing capabilities with modified Harvard architecture and 16 MIPS operation. Integrated cryptographic module for secure data handling in connected systems. USB and LCD controller for enhanced user interaction and device connectivity.
High-resolution ADC and DAC for accurate sensor interfacing and signal generation. Wide temperature and voltage operating ranges enable deployment in various industrial and automotive scenarios. Flexible and compact 48-pin TQFP package allows easy PCB integration and scalable system design.
Browse more Microchip Microcontrollers and discover specialized solutions for industrial, automotive, and embedded electronics on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC24FJ256GA705-I/PT is 32 MHz, allowing for high-speed performance in various applications.
This microcontroller features a program memory size of 256 kB Flash, providing ample space for complex applications.
It integrates up to 24 ADC channels, with 10/12-bit resolution, enabling broad sensing capabilities.
The device supports multiple communication interfaces, including 6 UARTs, 4 SPIs, and 3 I2Cs, facilitating robust peripheral integration.
It operates within a wide temperature range of -40°C to 85°C, making it suitable for demanding environments.
The PIC24FJ256GA705-I/PT operates with a supply voltage range from 2 V to 3.6 V, accommodating various power requirements.
This model comes in a 48-pin TQFP (Thin Quad Flat Package), allowing for compact and flexible PCB integration.
It includes 16 kB of SRAM, which is essential for rapid data handling in applications.
Yes, it complies with the AEC-Q100 automotive standard, making it suitable for automotive applications requiring stringent reliability.
The height of the PIC24FJ256GA705-I/PT is 1.05 mm, which is suitable for space-constrained applications.
It utilizes a modified Harvard architecture, which allows for efficient parallel data and instruction operations.
The microcontroller integrates 3 programmable analogue comparators, enhancing its signal processing capabilities.
