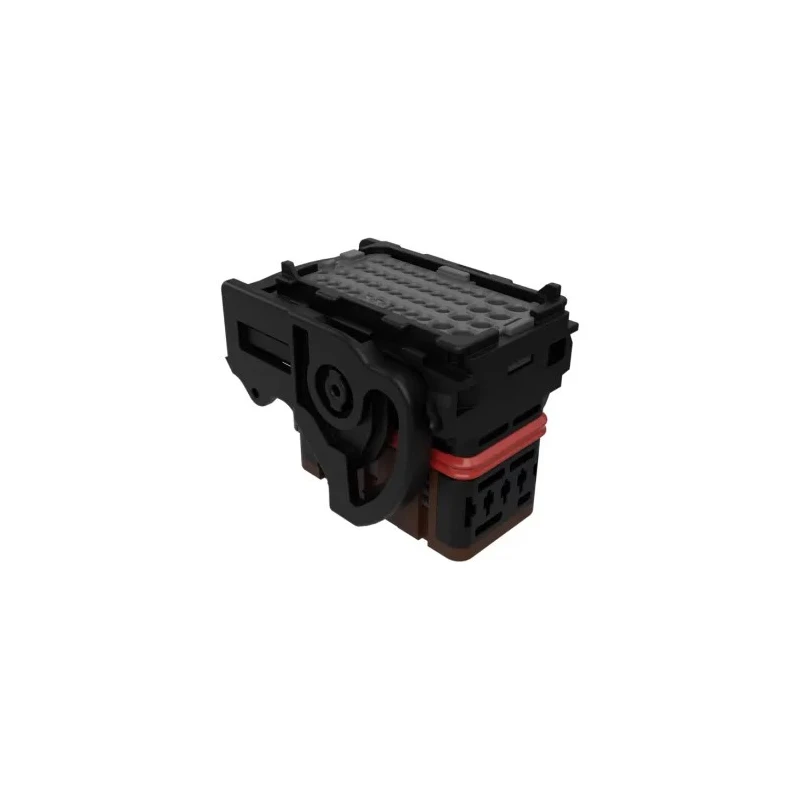

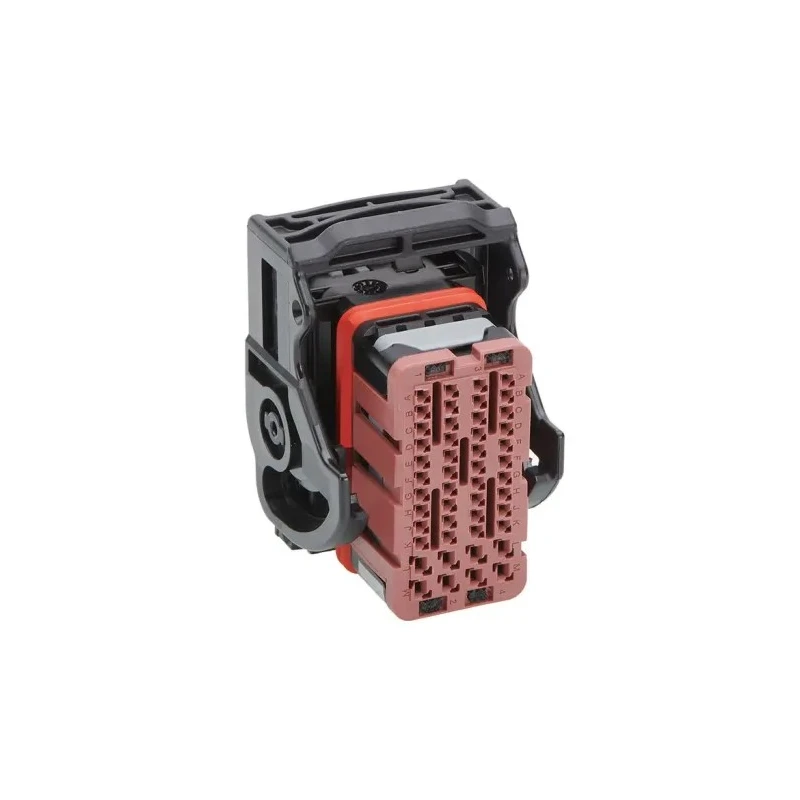

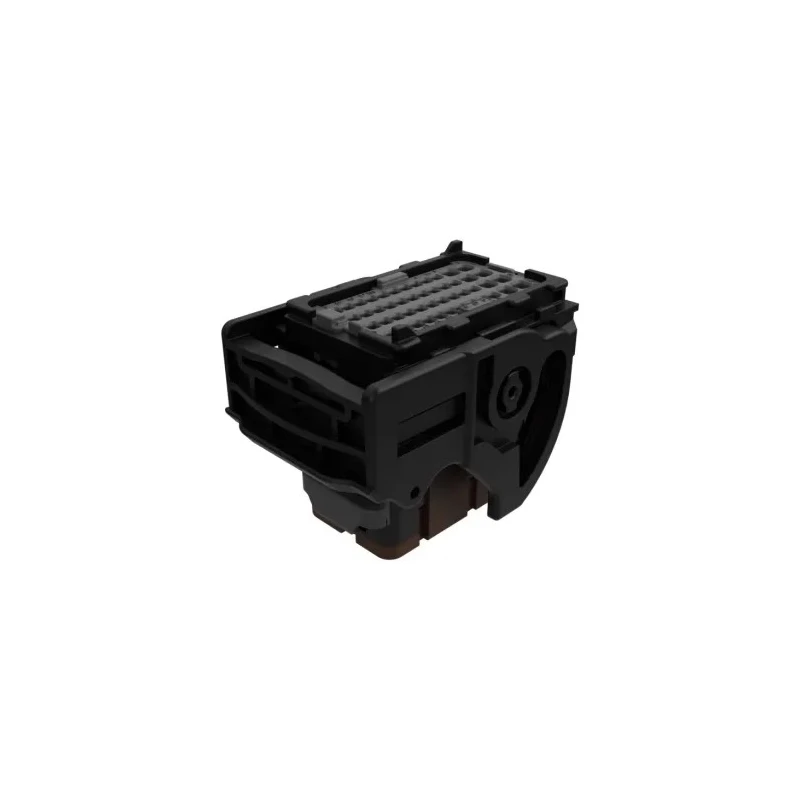

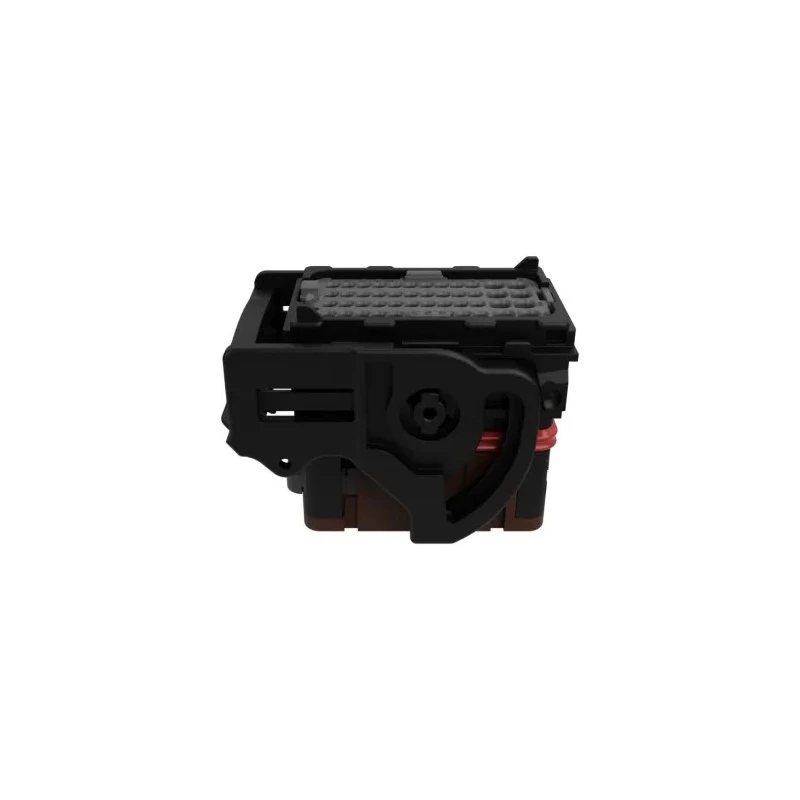

Molex 64320 Automotive Connector Female Brown Cable 48 Way Crimp Termination 643201319

Free Delivery in India | Lowest Global Shipping Charges

Molex 64320 Automotive Connector Female Brown Cable 48 Way Crimp Termination 643201319

Name: Molex 64320 Automotive Connector Female Brown Cable 48 Way Crimp Termination 643201319
Brand: Molex
SKU: 94972
Price: 16.1 USD
Availability: InStock



Category Automotive Connector Brand Molex Condition New

Specifications

Country of Origin	Germany
Brand	Molex
Colour	Brown
Current	12A
Height	40.1mm
Depth	53.2mm
Width	34.9mm
Gender	Female
Mount Type	Cable
Housing Material	Polyethylene Terephthalate
Contact Material	Polyester
Series	64320
Termination Type	Crimp
Maximum Operating Temperature	125°C
Sub Type	Receptacle Housing
Minimum Operating Temperature	-40°C
Number of Rows	4
Standards/Approvals	EU RoHS, REACH SVHC
Contact Plating	Tin and Gold
Number of Contacts	48

Key Features

Supports 48 contacts with crimp termination for secure wire retention.
Rated for 12A current to handle substantial electrical loads.
Features a brown receptacle housing designed for cable mount.
Constructed from durable polyethylene terephthalate for high temperature operation.
Operates efficiently between -40°C and 125°C for vehicle environment resilience.
Compact dimensions of 40.1mm height, 34.9mm width, and 53.2mm depth ensure fitment in tight spaces.
Contact materials plated with tin and gold for reliable conductivity and corrosion resistance.
Designed with 4 rows to organize circuits effectively.

Product Description

Molex 643201319 automotive connector is a female receptacle housing designed for cable mounting with 48 contacts and crimp termination type. It supports a current rating of 12 amperes, ensuring robust power transmission in automotive electrical systems. The connector body is made from high-quality polyethylene terephthalate material, providing durability and reliable operation within a temperature range of -40°C to 125°C.

This connector measures 40.1mm in height, 34.9mm in width, and 53.2mm in depth, making it compact yet capable of handling multiple wire circuits organized in 4 rows. Contact parts are manufactured from polyester and plated with tin and gold, enhancing electrical conductivity and resistance to corrosion, which is critical for automotive environments.

The brown coloration assists with quick identification and mating in complex wiring harnesses. It is compliant with EU RoHS and REACH SVHC requirements, emphasizing its environmentally safe composition.

This component is widely used in powertrain and body electronic systems within vehicles. It integrates with CMC CP female terminals and 48 circuit headers, offering modular design capabilities for manufacturing and repair applications. The connector's crimp termination method secures the wires firmly to minimize connection failure under vibration and mechanical stress conditions common in automotive use.

Manufactured in Germany, this Molex 64320 series automotive connector meets stringent quality standards, providing reliability and longevity for demanding automotive electrical installations. Proper tooling, such as the 63812-1100 and 63824-1200 part numbers, is recommended for optimal crimp termination and assembly.

Supports 48 contacts with secure crimp termination. Rated for 12A current suitable for automotive power transmission. Brown polyethylene terephthalate housing resistant to temperature extremes. Compact design sized for efficient wiring integration in vehicles.

Gold and tin plated polyester contacts offer enhanced conductivity and corrosion resistance. Meets EU RoHS and REACH SVHC compliance for environmental safety. Ideal for powertrain and body electronics requiring modular assemblies.

Operates reliably between -40°C and 125°C for varied automotive conditions. Four-row configuration organizes multiple circuits effectively. Manufactured in Germany for assured quality and performance. Explore the wide range of Automotive Connectors and components available to meet your industrial and vehicle manufacturing needs on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This automotive connector is rated for a current of 12A, making it suitable for substantial electrical loads in automotive applications.

The connector has compact dimensions of 40.1mm in height, 34.9mm in width, and 53.2mm in depth, allowing for efficient fitment in tight spaces.

It operates efficiently between -40°C and 125°C, ensuring resilience in varied automotive environments.

This connector features a crimp termination type, which provides secure wire retention and minimizes connection failure under vibration and mechanical stress.

The housing is made from polyethylene terephthalate, while the contacts are constructed from polyester and plated with tin and gold for enhanced conductivity and corrosion resistance.

This model supports 48 contacts, organized in a four-row configuration for effective circuit management.

It complies with EU RoHS and REACH SVHC requirements, emphasizing its environmentally safe composition.

This connector is manufactured in Germany, ensuring adherence to stringent quality standards.

This automotive connector is a female receptacle housing designed for cable mounting.

The connector features a brown housing, which aids in quick identification and mating in complex wiring harnesses.

It is widely used in powertrain and body electronic systems within vehicles, integrating with CMC CP female terminals and 48 circuit headers for modular design capabilities.

For optimal crimp termination and assembly, it is recommended to use tooling part numbers 63812-1100 and 63824-1200.
