Samtec ERF5 Series Right Angle Surface PCB Socket, 60-Contact, 2 Row, 0.5 mm Pitch, 1.6A, 194V, Gold Plated Contacts,

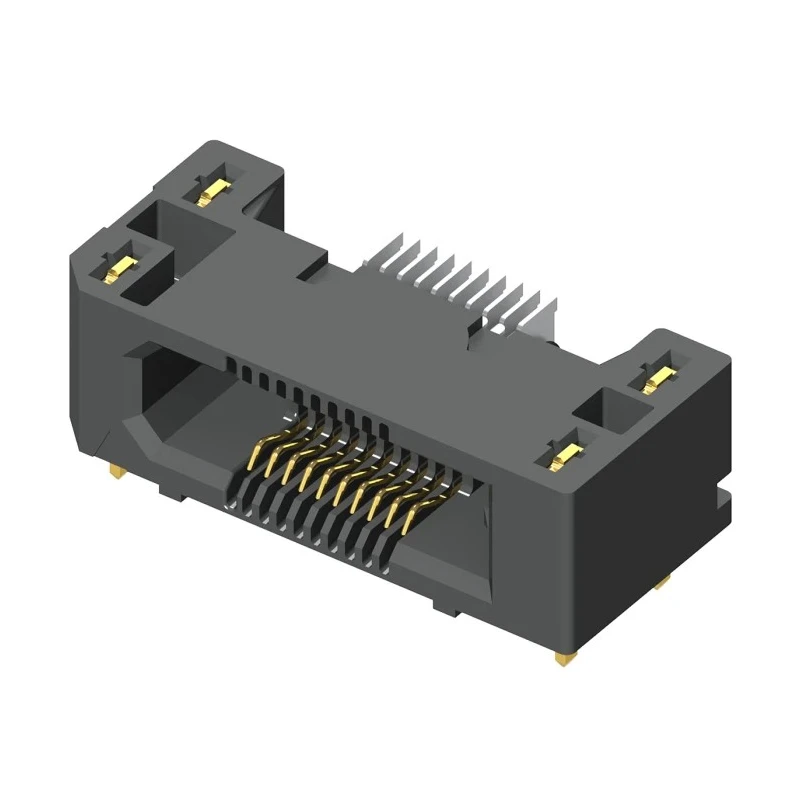

Samtec ERF5-030-01-L-D-RA-TR is a high-performance right angle surface PCB socket designed for board-to-board connections. This 60-contact, 2-row socket features a precise 0.5 mm pitch and supports a current of 1.6 A and voltage of 194 V, making it suitable for demanding electronic applications.

The connector incorporates ruggedized Edge Rate contacts, which have a smooth milled gold-plated surface that minimizes contact wear, thereby extending durability and lifecycle. Its liquid crystal polymer housing ensures mechanical robustness and excellent thermal resistance, supporting minimum operating temperatures down to -55°C and maximum temperatures up to 125°C.

Thanks to its right angle surface mount configuration and 12 mm stacking height, it provides flexible mounting and mating height options. When paired with the ERM5 series headers, mating heights can be adjusted from 7 mm to 12 mm to suit various designs.

The edge rate contacts reduce insertion and withdrawal forces, facilitating easy connection and disconnection without compromising performance. Additionally, the contact design reduces broadside coupling and crosstalk to maintain high signal integrity, which is critical for high-speed data transmission applications.

This connector is ideal for applications in electronics manufacturing, telecommunications, computing, and other industrial environments requiring high-speed, reliable board-to-board connections. Its construction and material choice ensure longevity and stable operation under harsh conditions.

Designed for high-speed SMT board-to-board applications supporting up to 28 Gbit/s transmission rate. Current rating of 1.6 A with a voltage rating of 194 V ensures reliable electrical performance. Features ruggedized Edge Rate contacts with gold plating for enhanced durability and conductivity.

Constructed with liquid crystal polymer housing providing strength and thermal stability. Right angle surface mount type with a stacking height of 12 mm for flexible mating height configurations. Operating temperature range from -55°C to 125°C suitable for demanding environments.

Contact material composed of beryllium copper alloy to maximize contact integrity and longevity. Compatible with ERM5 series headers to create mating heights between 7 mm and 12 mm. Offers reduced insertion and withdrawal forces allowing easy mating and unmating without damage.

Maintains high signal integrity by reducing cross talk and broadside coupling. Explore more Samtec PCB socket connectors on EnvMart to discover high-quality options for your electronic component needs.
