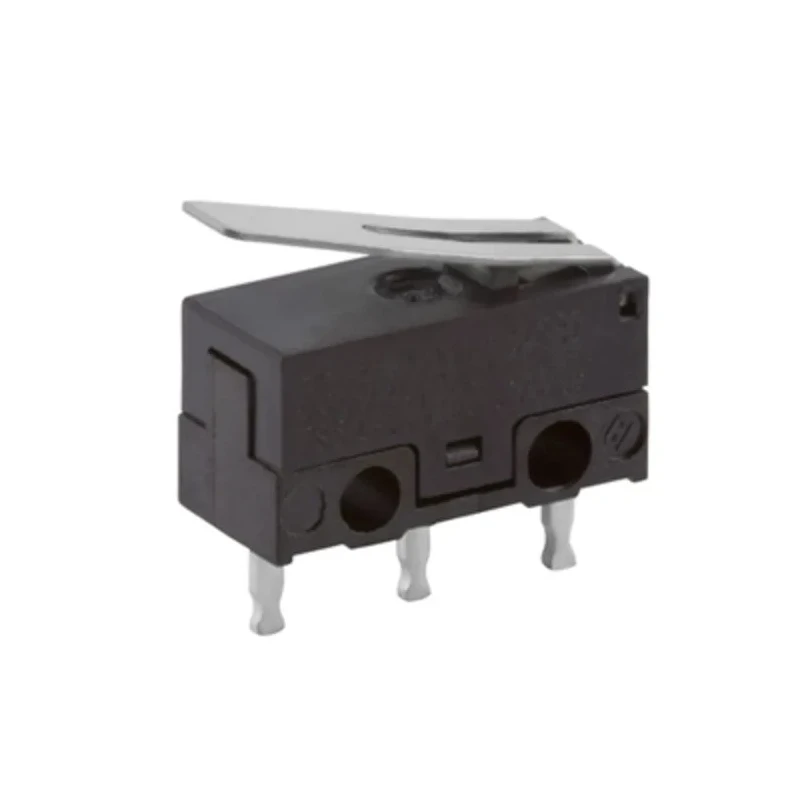

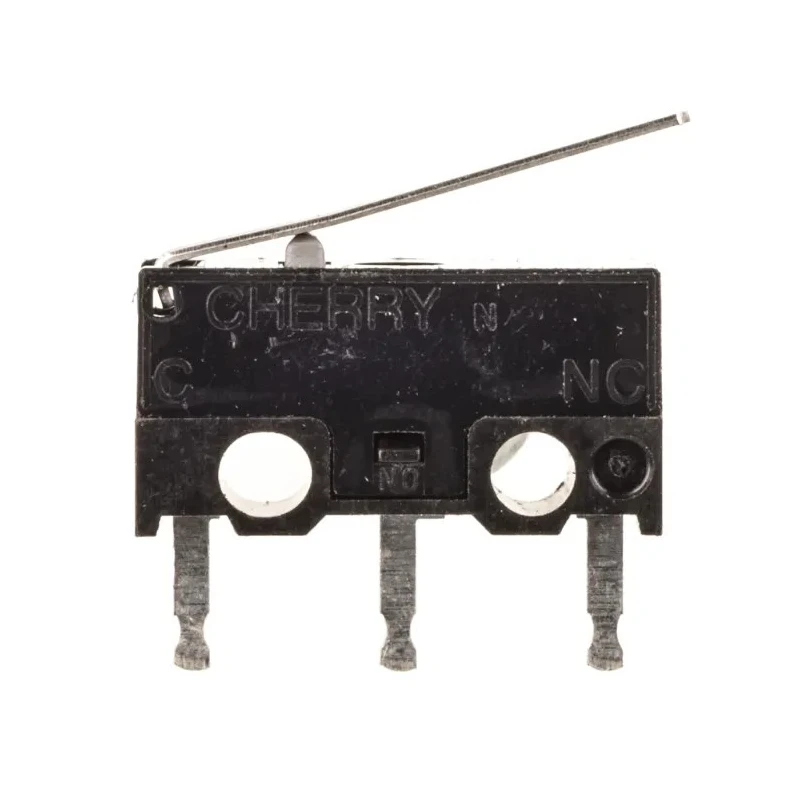

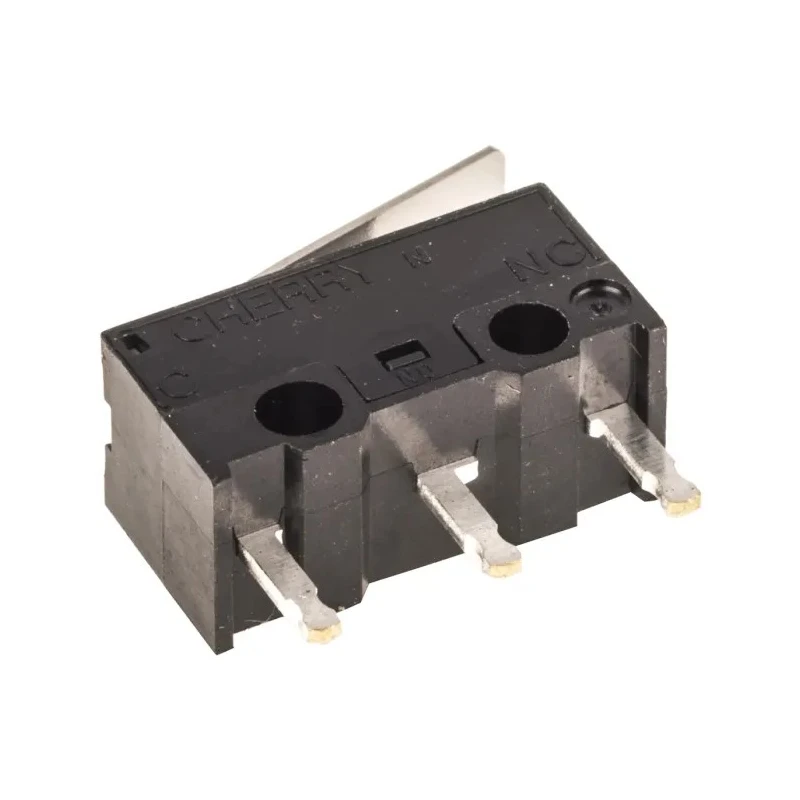

ZF Hinge Lever Micro Switch, PCB Terminal, SPDT, 3A, 125 V AC, 30 V DC, IP40, DG13-B1LA
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |

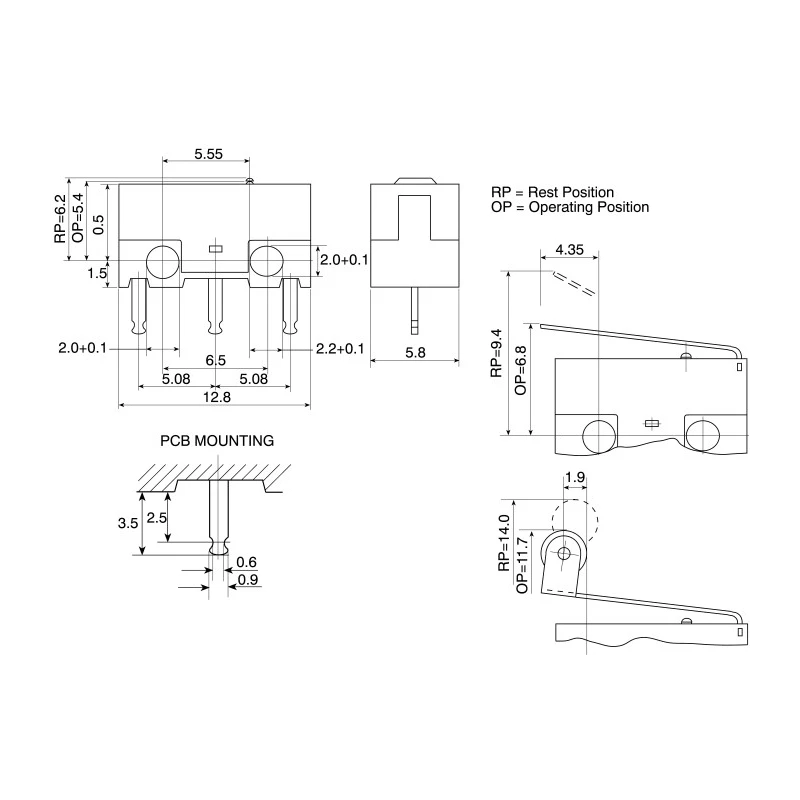

| Length | 12.8mm |
| Model | DG13-B1LA |
| IP Rating | IP40 |
| Housing Material | Polyethylene Terephthalate |
| Series | DG Sub-Miniature |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 0.44N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | DG Subminiature |
| SPDT snap action lever microswitchBrand | Cherry |
Key Features
- The switch features a durable polyethylene terephthalate housing material.
- Operating force is low at 0.44N for precise actuation.
- Operates reliably between -25°C and 85°C.
- Mechanical life exceeds 1,000,000 operations ensuring longevity.
- Compact length of 12.8mm allows for space-efficient integration.
- SPDT contact design provides versatile switching functionality.
- PCB terminal ensures secure and easy mounting on printed circuit boards.
- IP40 rating protects against solid objects larger than 1mm.
Product Description
The ZF DG13-B1LA is a high-quality hinge lever micro switch designed for precise and reliable switching applications. Featuring a straight lever actuator and a robust polyethylene terephthalate housing, this micro switch supports a contact current rating of 3A at 125V AC and 30V DC and offers a SPDT contact configuration. It operates efficiently within a temperature range of -25°C to 85°C, making it suitable for various industrial and electrical environments.
This switch is specifically designed with PCB terminal type connections, allowing for secure and straightforward installation onto printed circuit boards. The operating force required is minimal at 0.44N, providing sensitive actuation while ensuring durability through a mechanical lifespan exceeding 1 million operations.
The length of 12.8mm allows integration into compact spaces while maintaining excellent performance. The device carries an IP40 protection rating which guards against ingress of solid particles larger than 1mm, ensuring reliability in standard industrial environments.
The ZF DG13-B1LA Micro Switch complies with RoHS standards, emphasizing environmental responsibility. It is ideal for use in industrial automation, equipment controls, electrical appliances, and other applications where precise and dependable switching is critical.
The switch features low operating force for delicate applications. High mechanical life ensures extended service without failures. Compact size supports flexible design integration. SPDT configuration enables versatile switching scenarios.
Robust housing material enhances durability and electrical insulation. PCB terminals provide ease of assembly in electronic systems. Wide operating temperature range suits diverse industrial conditions. IP40 protection rating secures the switch from dust and foreign objects.
RoHS compliant for ecological safety and regulatory adherence. Ideal for industrial, automation, HVAC, and electronics applications requiring reliable switching. Explore EnvMart’s comprehensive range of electronic switches and components for advanced industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ZF DG13-B1LA micro switch has a contact current rating of 3A.
This model supports a contact voltage of 125V AC and 30V DC.
It operates efficiently within a temperature range of -25°C to 85°C.
The switch features a hinge lever actuator type for precise actuation.
The mechanical life of this switch exceeds 1,000,000 operations, ensuring longevity.
The ZF DG13-B1LA has an IP40 rating, which protects against solid objects larger than 1mm.
The length of this model is 12.8mm, allowing for space-efficient integration.
This switch is designed with PCB terminal type connections for secure mounting on printed circuit boards.
Yes, the ZF DG13-B1LA complies with RoHS standards, emphasizing environmental responsibility.
The operating force required for actuation is minimal at 0.44N, providing sensitive actuation.
It is ideal for use in industrial automation, equipment controls, and electrical appliances where precise switching is critical.
The housing material of this micro switch is made from polyethylene terephthalate.
