IQRF RF Transceiver Module GFSK Modulation 915 MHz 5.3V TR-72DAT

IQRF TR-72DAT RF Transceiver Module features advanced GFSK modulation operating at 915 MHz frequency band with a supply voltage of 5.3V. This compact module integrates an MCU, RF circuitry, low-dropout regulator, and serial EEPROM, requiring no external components. Its ultra-low power consumption makes it ideal for battery-powered industrial and commercial wireless communication solutions.

The module offers a maximum RF data rate of 19.8 kbps and output power of 10 mW, enabling extended transmission range. It supports SPI interface managed by the onboard operating system, simplifying integration. Operating temperature ranges from -40°C to +85°C, ensuring reliability in harsh environments.

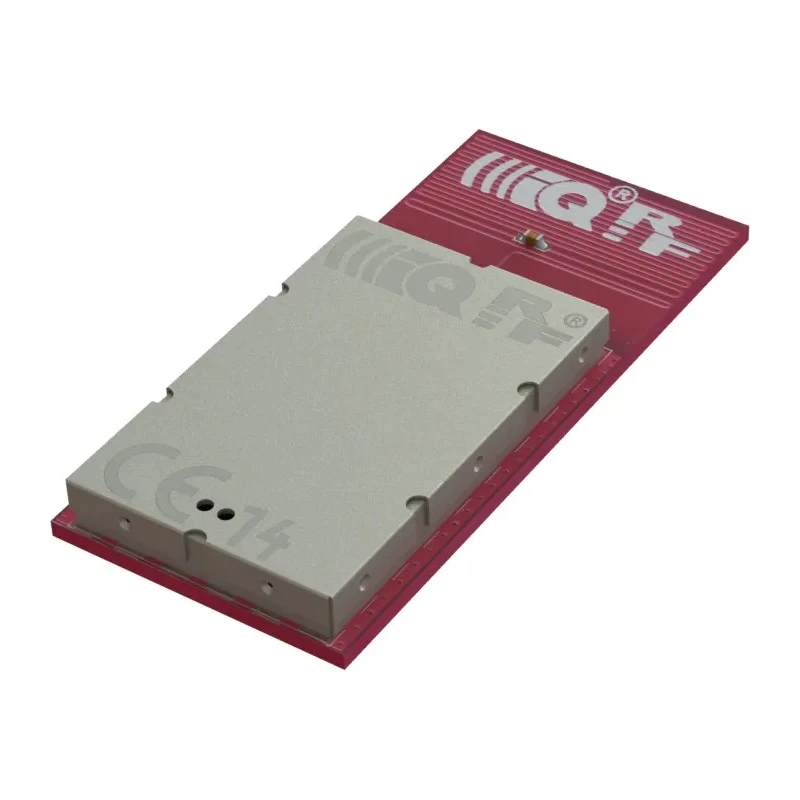

Equipped with a PCB antenna, the TR-72DAT allows selectable RF bands within the 868 MHz and 916 MHz license-free ISM bands, with multiple channel support. The onboard MCU includes features like user interrupt capability, analog-to-digital converter with 2 channels, analog comparator, PWM output, and programmable hardware timer, providing extensive application flexibility.

Additional functionalities include a 3V LDO regulator output for battery monitoring, 256 Kb serial EEPROM to store application data, and an optional temperature sensor. The built-in operating system and DPA framework streamline wireless network development and management.

High integration of MCU, RF circuitry, and memory reduces external component requirements. Supports SPI interface with OS-level background support for seamless communication. Extended RF output power increases wireless communication range.

Wide operational temperature range from -40°C to 85°C suitable for industrial applications. Low power consumption optimizes battery life in portable devices. Selectable frequency bands and multiple channels for flexible deployment.

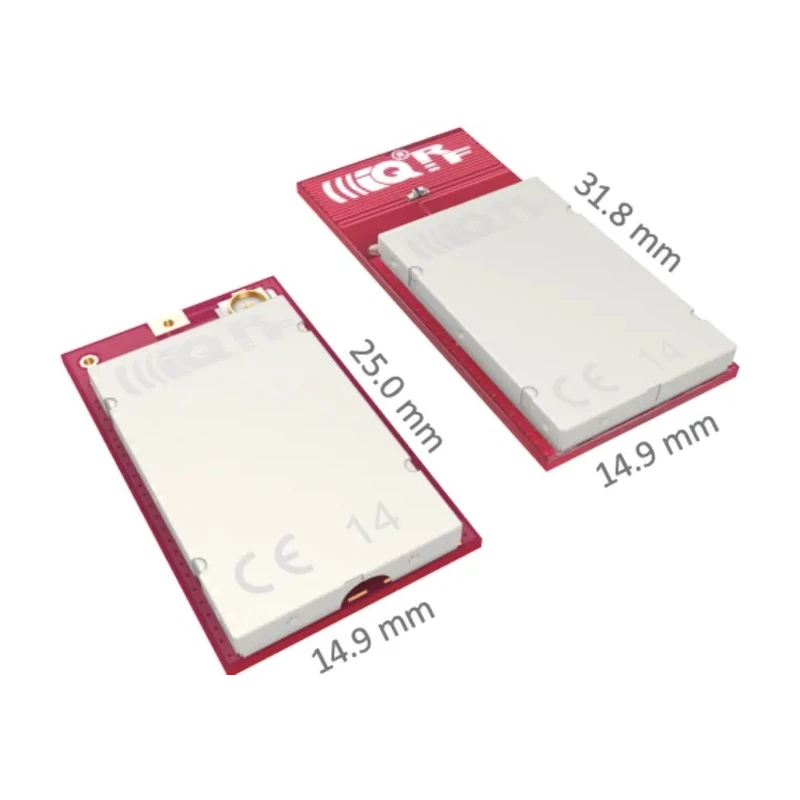

Includes advanced MCU capabilities such as interrupt, PWM, and ADC modules. Onboard EEPROM and temperature sensor provide additional data handling and monitoring. Compact form factor with dimensions 31.8 mm x 14.9 mm x 3.3 mm.

Developed and manufactured in Czech Republic ensuring quality standards.

This RF transceiver module is suitable for applications in industrial automation, building control systems, wireless sensor networks, and other IoT implementations requiring reliable and low-power wireless communication. For further product options and related components, explore the RF Modules category at EnvMart.
