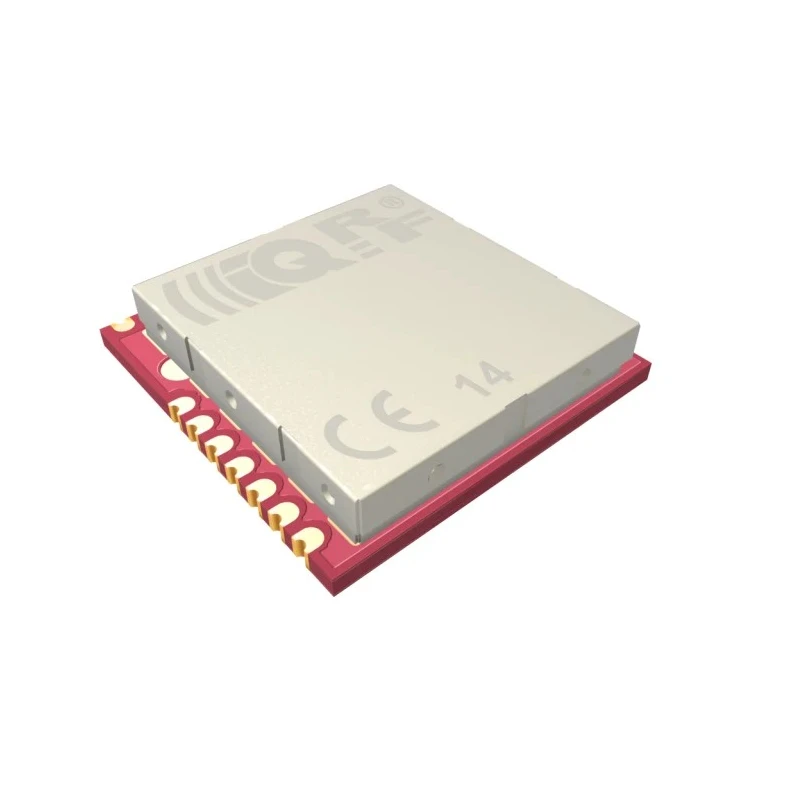

IQRF RF Transceiver Module GFSK 915 MHz 5.3V TR-76D

Free Delivery in India | Lowest Global Shipping Charges

IQRF RF Transceiver Module GFSK 915 MHz 5.3V TR-76D

Name: IQRF RF Transceiver Module GFSK 915 MHz 5.3V TR-76D
Brand: IQRF
SKU: 413146
Price: 20.22 USD
Availability: InStock



Category RF Modules Brand IQRF Condition New

Specifications

Country of Origin	Czech Republic
Frequency	915MHz
Brand	IQRF
Height	3.3mm
Length	15.2mm
Model	TR-76D
Width	14.9mm
Mount Type	Surface
Series	TR-72D
Maximum Operating Temperature	85°C
Sub Type	Transceiver
Minimum Operating Temperature	-40°C
Component Type	Transceiver
Receiver Sensitivity	-101dBm
Maximum Output Power	10mW
Interface Type	SPI
Maximum Supply Voltage	5.3V
Minimum Supply Voltage	3V
Modulation Technique	GFSK
Maximum RF Data Rate	19.8kbps

Key Features

The module uses GFSK modulation technique providing reliable data transmission.
Maximum RF data rate of 19.8 kbps ensures efficient wireless communication.
Operates with a supply voltage range from 3V to 5.3V suitable for battery powered projects.
Surface mount design with compact dimensions 15.2 mm length, 14.9 mm width, and 3.3 mm height.
Offers maximum output power of 10 mW and receiver sensitivity of -101 dBm for extended range.
Features SPI interface type for easy integration with microcontrollers.
Wide operating temperature range from -40°C to 85°C supports harsh environments.
Includes integrated MCU, RF circuitry, serial EEPROM, and optional antenna-free soldering pad design.

Product Description

IQRF TR-76D RF Transceiver module by IQRF is a compact, surface-mount device operating in the 915 MHz license-free ISM band, featuring GFSK modulation technique and a maximum RF output power of 10 mW. The module integrates a microcontroller unit (MCU), RF circuitry, serial EEPROM, and is designed to operate on low power, supporting supply voltages ranging from 3V to 5.3V. Its small form factor measuring 15.2 mm in length, 14.9 mm in width, and 3.3 mm in height enables space-saving PCB designs suitable for embedded wireless communication applications.

This transceiver offers a maximum data rate of 19.8 kbps suitable for low-power wireless data transmission in industrial, monitoring, metering, and IoT systems. The sensitivity of -101 dBm and SPI interface enable robust communication and easy integration with host controllers. The operating temperature range from -40°C to 85°C supports reliable performance in harsh environmental conditions.

The device uses a soldering pad-hole design eliminating the need for an external antenna or U.FL connector, simplifying assembly and reducing component count. It supports the programmable hardware timer, PWM output, multiple analog channels, and battery monitoring capabilities making it ideal for battery-powered wireless sensor nodes and control systems.

The module features ultra-low power consumption with multiple power management modes. Operating system upgradeability and the Data Controlled Approach (DPA) framework allow ease of development. Suitable for communication in smart metering, industrial automation, and sensor networking.

Manufactured in the Czech Republic ensuring high quality and reliability.

This RF transceiver module is suitable for developers and engineers designing wireless communication modules in industrial, laboratory, and commercial IoT applications. Explore more RF Modules and Communication & Wireless Module ICs in our catalog to find complementary components and devices for your projects.
