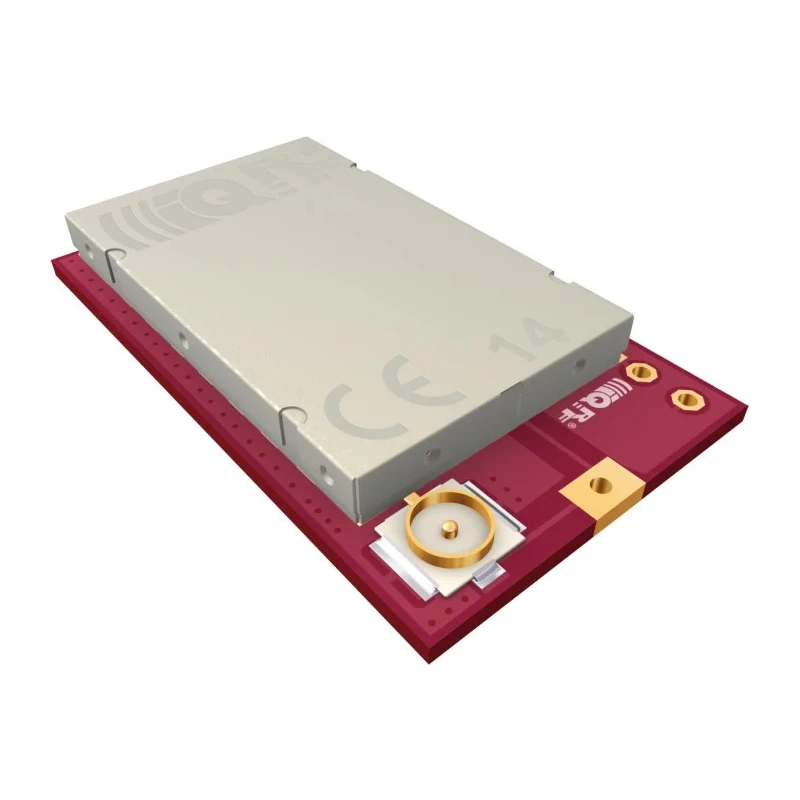

IQRF RF Transceiver Module GFSK 915 MHz 5.3V TR-72DCT
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Frequency | 915MHz |
| Brand | IQRF |
| Height | 3.3mm |
| Length | 25.1mm |
| Model | TR-72DCT |
| Width | 14.9mm |
| Mount Type | SIM Mount |
| Series | TR-72D |
| Maximum Operating Temperature | 85°C |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Component Type | Transceiver |
| Receiver Sensitivity | -101dBm |
| Maximum Output Power | 10mW |
| Interface Type | SPI |
| Maximum Supply Voltage | 5.3V |
| Minimum Supply Voltage | 3.1V |
| Modulation Technique | GFSK |
| Maximum RF Data Rate | 19.8kbps |
Key Features
- Operates within a frequency band of 915 MHz suitable for ISM applications.
- Features GFSK modulation delivering a maximum RF data rate of 19.8 kbps.
- Maximum output power of 10 mW ensures extended RF range.
- Receiver sensitivity rated at -101 dBm for stable signal reception.
- Compact design with dimensions 25.1 mm length, 14.9 mm width, and 3.3 mm height.
- Supports SIM mount type with SPI interface for reliable communication.
- Operating temperature range from -40°C to 85°C for versatile deployment.
- Includes MCU with onboard operating system and serial EEPROM for application development.
Product Description
IQRF TR-72DCT RF Transceiver Module by IQRF is a highly integrated wireless communication component operating in the license-free ISM frequency band at 915 MHz. It employs GFSK modulation providing a robust 19.8 kbps data rate suitable for industrial, commercial, and IoT wireless applications.
Designed with a built-in microcontroller unit (MCU), integrated LDO regulator, serial EEPROM (256 Kb), and optional temperature sensor or antenna options, this module minimizes external component requirements. It supports a supply voltage range of 3.1 to 5.3 volts and includes a SPI interface managed by the operating system for seamless data exchange.

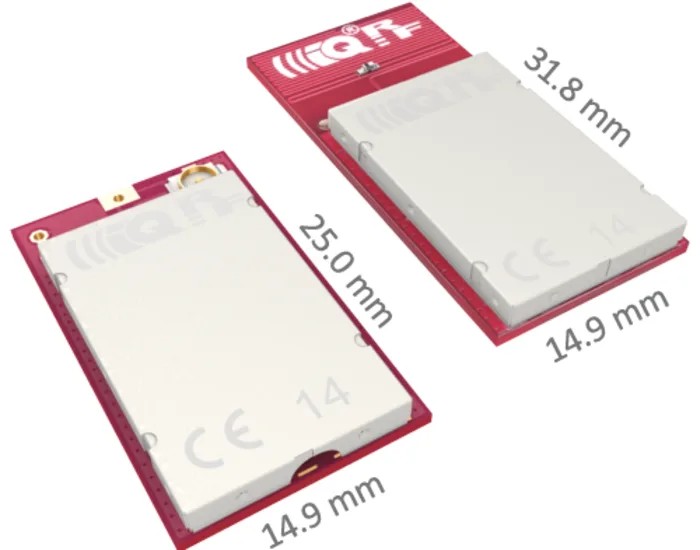

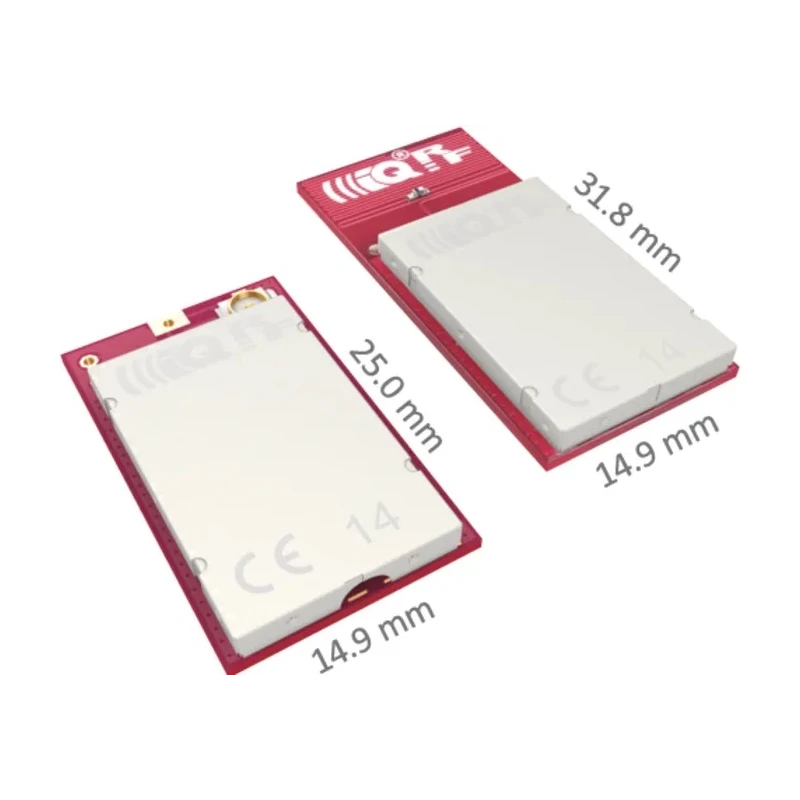

The module features a compact form factor with dimensions of 25.1 mm in length, 14.9 mm width, and 3.3 mm height, mounted using SIM mounting standards. Its operating temperature range of -40°C to 85°C allows for deployment in diverse industrial and outdoor environments.
With a maximum RF output power of 10 mW and a receiver sensitivity of -101 dBm, it ensures reliable communication over extended distances. The MCU’s built-in operating system reduces development time, featuring power management modes suitable for battery-powered designs.
The TR-72DCT is manufactured in the Czech Republic and does not carry specific standards or approvals. It caters to applications in industrial automation, sensor networking, remote control systems, and wireless data transmission for commercial and laboratory equipment.
Operates at 915 MHz frequency band with GFSK modulation. Offers 19.8 kbps maximum RF data rate with 10 mW output power. Features onboard MCU, EEPROM, and optional sensor integration. Compact dimensions support versatile system integration.
Wide operating temperature and power supply voltage range enhance usability. SPI interface supported by built-in operating system. Low power consumption optimized for battery-powered applications. Manufactured in Czech Republic for quality assurance.
Explore more RF Modules and Communication ICs on EnvMart for industrial, laboratory, and commercial wireless technology solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum RF data rate of this model is 19.8 kbps, utilizing GFSK modulation for effective communication.
It operates within a temperature range from -40°C to 85°C, making it suitable for various industrial and outdoor applications.
The module has compact dimensions of 25.1 mm in length, 14.9 mm in width, and 3.3 mm in height.
The receiver sensitivity is rated at -101 dBm, ensuring stable signal reception over extended distances.
This model supports an SPI interface, which is managed by its built-in operating system for seamless communication.
The maximum output power is 10 mW, which helps extend the RF range of the module.
It supports a supply voltage range of 3.1 to 5.3 volts, allowing for flexible power supply options.
This transceiver module uses a SIM mount type for installation.
It employs GFSK modulation, which is effective for its intended wireless communication applications.
This model is suitable for applications in industrial automation, sensor networking, remote control systems, and wireless data transmission.
It is manufactured in the Czech Republic, ensuring quality assurance in production.
Yes, it includes a built-in microcontroller unit (MCU) and a serial EEPROM for application development, minimizing the need for external components.
