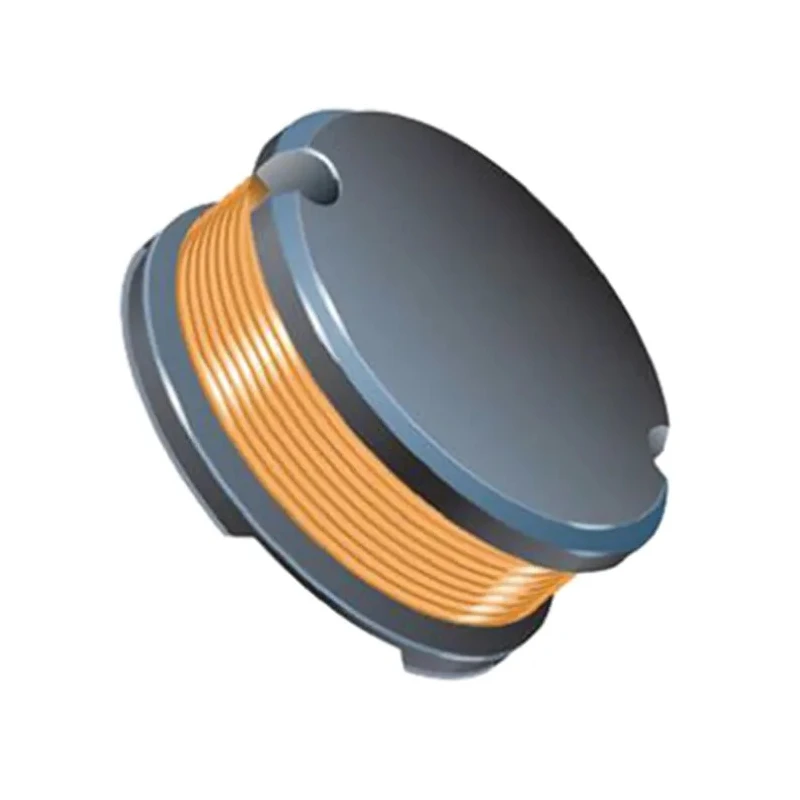

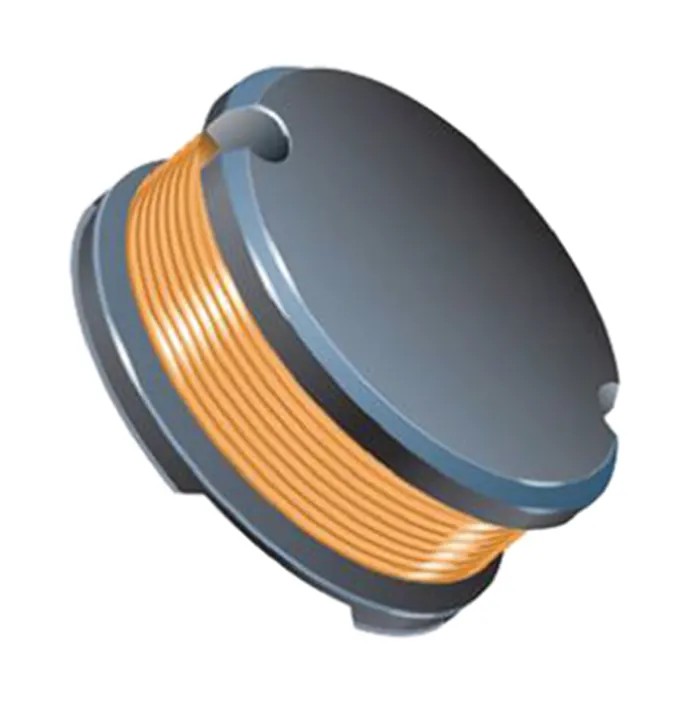

Bourns Surface Mount Inductor 150 μH ±10% 2.6 A Idc Ferrite DR Core Wirewound 1307 Case SDR1307

Bourns SDR1307 surface mount inductor is engineered with a ferrite DR core delivering a precise inductance of 150 μH with ±10% tolerance. This wirewound inductor supports a maximum DC current of 2.6 A, suitable for power supply and DC/DC converter applications.

Its low profile 1307 package size (13 mm length, 13 mm depth, 7 mm height) makes it ideal for compact electronic assemblies. The unshielded design allows efficient thermal management with an operating temperature range from -40°C to 125°C.

The inductor’s maximum DC resistance of 250 milliohms optimizes current efficiency, and its minimum quality factor of 20 ensures stable performance at up to 4.5 MHz self-resonant frequency. The solder termination style facilitates reliable surface mount placement on PCB assemblies.

Compliant with RoHS standards, this inductor is moulded for enhanced durability and is commonly used in power supplies for portable communication devices, LCD TVs, camcorders, and automotive radios.

The inductor has a wirewound construction for durability and reliability. It features a 1307 package with dimensions of 13mm length, 13mm depth, and 7mm height. Designed for operation between -40°C and 125°C temperature range.

The maximum DC resistance is 250 milliohms ensuring efficient current flow. It is RoHS compliant with solder termination style for surface mount applications. The inductor has a minimum quality factor (Q) of 20 at a self-resonant frequency of 4.5 MHz.

This product is suitable for power supply circuits, DC/DC converters, and portable communication equipment. The inductor is moulded and unshielded, optimized for compact electronic designs. Suitable for industrial, electronic manufacturing, and commercial use cases where reliable inductor performance is essential.
