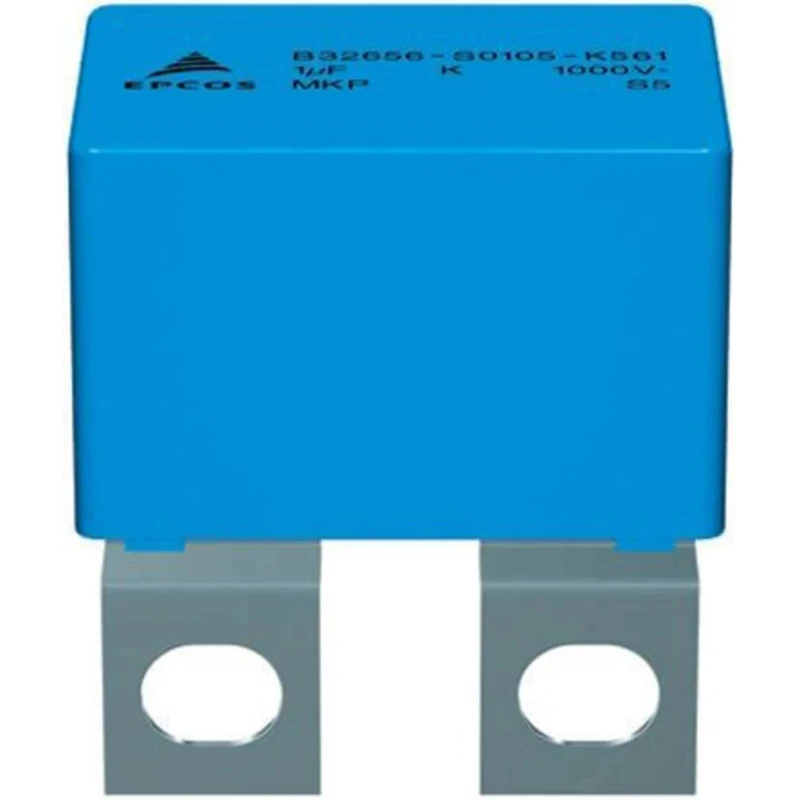

TDK Film Capacitor 470 nF 480V AC 1 kV DC Tab Mount B32656S0474K564

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 470 nF 480V AC 1 kV DC Tab Mount B32656S0474K564



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	25mm
Length	42mm
Model	B32656S0474K564
Width	14mm
Mount Type	Tab
Series	B32656S
Maximum Operating Temperature	100°C
Capacitance	470nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	480V ac
Rated DC Voltage	1kV dc
Lead Pitch	12mm

Key Features

This film capacitor has a capacitance of 470 nF.
Rated for AC voltage of 480V and DC voltage of 1 kV.
Features a 12 mm lead pitch with 2 pins for mounting.
Constructed with a plastic case and epoxy resin sealing for durability.
Operates reliably at maximum temperatures up to 100°C.
Designed with low inductance and wound capacitor technology for improved performance.
Complies with RoHS and UL standards ensuring safety and quality.

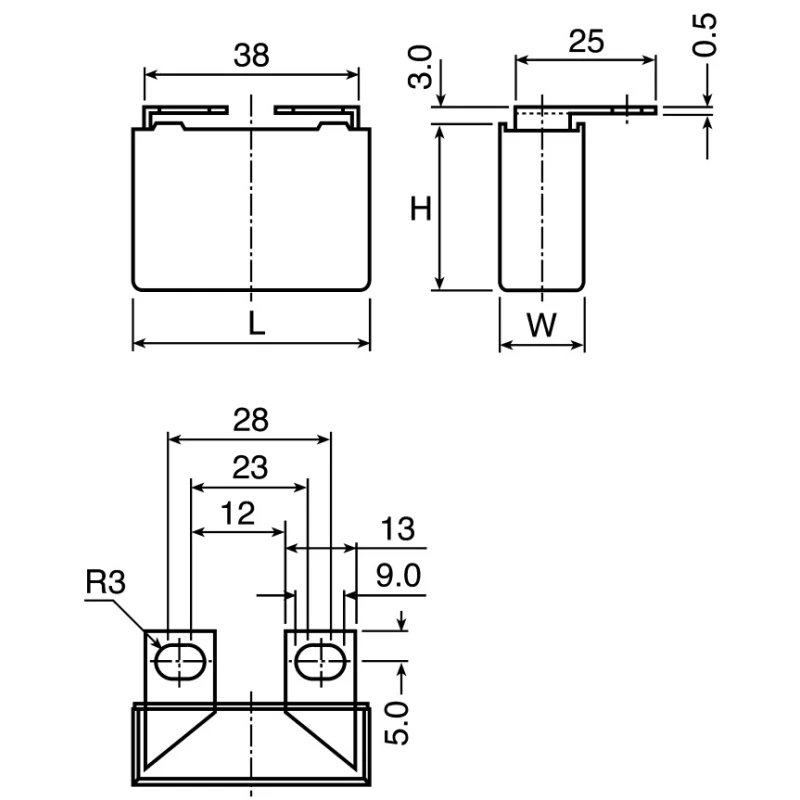

Compact dimensions measuring 42 mm length, 14 mm width, and 25 mm height.

Product Description

TDK B32656S0474K564 Film Capacitor is a high-quality electronic component designed for robust performance in industrial and electronic applications. This film capacitor with a capacitance of 470 nF offers stable and reliable functionality at rated AC voltage of 480V and rated DC voltage of 1 kV, and features a tab mount type with a 12 mm lead pitch and 2 pin count, making it ideal for secure PCB installation.

Constructed using winding capacitor technology with internal series connection, it ensures high pulse strength and exceptional contact reliability. The plastic case with epoxy resin sealing (UL 94 V-0 rating) provides excellent protection against environmental factors, while maintaining very low inductance for optimized electrical characteristics.

With a maximum operating temperature of 100°C, this component withstands demanding operating conditions in electronics, power supplies, and industrial equipment. Its compact size with dimensions of 42 mm length, 14 mm width, and 25 mm height allows use in dense circuit board layouts.

This capacitor complies with RoHS and UL standards, guaranteeing safety, environmental compliance, and quality assurance. Typical applications include switching power supplies, converters, industrial electronics, and any circuits requiring high pulse strength and stability.

This film capacitor has a capacitance of 470 nF. Rated AC voltage of 480V and DC voltage of 1 kV for versatile electrical uses. Tab mount design with 12 mm lead pitch for straightforward installation. Plastic casing with epoxy resin sealing offers durability and safety.

Maximum operating temperature of 100°C suitable for demanding industrial environments. Low inductance and internal series winding improve performance in AC/DC circuits. Compliant with RoHS and UL standards assuring quality and regulatory adherence.

Compact dimensions: 42 mm length, 14 mm width, 25 mm height for space-saving designs.
