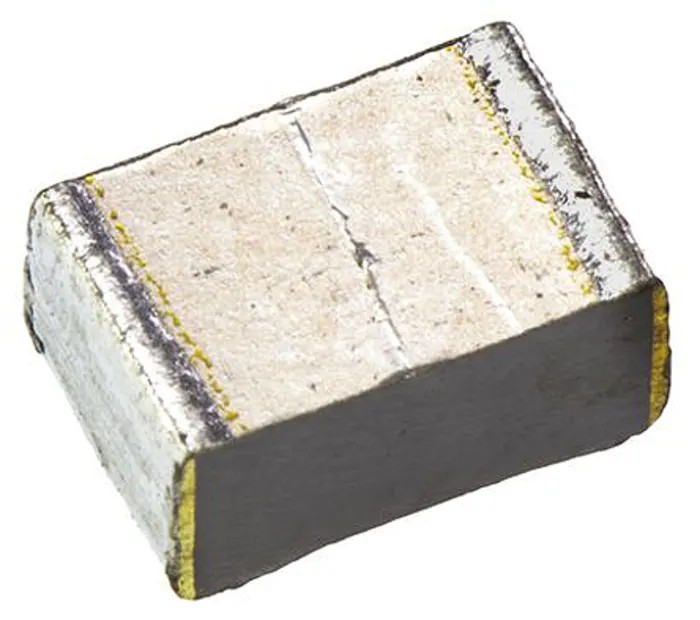

Panasonic ECHU(X) Surface Mount Film Capacitor 220 pF 50V DC 50V AC PPS Metallized Chip ECHU1H221GX5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 0.9mm |
| Length | 2mm |
| Model | ECHU1H221GX5 |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | ECHU(X) |
| Maximum Operating Temperature | 125°C |
| Capacitance | 220pF |
| Standards/Approvals | RoHS |
| Rated AC Voltage | 50V ac |
| Rated DC Voltage | 50V dc |
Key Features
- This capacitor uses PPS metallized film for stability and low ESR performance.
- Suitable for reflow soldering with a maximum operating temperature of 125°C.
- Compact chip style measuring 2 mm length, 1.25 mm width, and 0.9 mm height.
- Designed for time-constant applications, oscillation, resonance, filtering and audio circuit use.
- RoHS compliant and automotive standard non-certified.
- Features a mould-less construction allowing durability under 85°C, 85% RH conditions.
- Lightweight and compact for high density PCB mounting.
- Provides stable capacitance of 220 pF with 50V rated DC and AC voltage.
Product Description
Panasonic ECHU1H221GX5 is a high-performance surface mount film capacitor from the ECHU(X) series, rated at 220 pF capacitance with a 50V DC and 50V AC voltage rating. Crafted from stacked metallised PPS film, this capacitor features a mould-less construction for enhanced reliability.
It is specifically designed for high precision electronic components requiring compactness and stability. The capacitor exhibits low Equivalent Series Resistance (ESR) and is suitable for reflow soldering processes with a maximum operating temperature of 125°C, making it ideal for industrial and automotive electronic applications.
Dimensions for the chip capacitor are 2 mm length, 1.25 mm width, and 0.9 mm height, allowing dense PCB layouts. The device is RoHS compliant, ensuring environmentally responsible manufacturing standards.
Typical applications include time-constant circuits, oscillators, resonators, audio filtering, and general-purpose electronic filtering where stable dielectric properties are critical. The ECHU(X) series capacitors provide robust performance under harsh temperature and humidity conditions (85°C, 85% RH for 500 hours), supporting long-term circuit stability.
This capacitor is constructed from metallised PPS film for durability and low ESR. Compact design optimized for high-density PCB surface mounting. Reflow soldering compatible for automated manufacturing. Rated for a maximum operating temperature of 125°C ensuring reliability in demanding environments.
Voltage rating of 50V DC and 50V AC meets common industrial electrical requirements. RoHS compliant to meet eco-friendly regulatory requirements.
This product is suitable for use in industrial electronics, automotive control circuits, consumer electronics, and precision filtering applications where film capacitor stability and size are critical.
EnvMart offers this Panasonic Film Capacitor with trusted quality and full technical support. Explore related components and complementary electronic parts in our Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ECHU1H221GX5 capacitor has a capacitance value of 220 pF.
This model is rated for 50V DC and 50V AC voltage.
The maximum operating temperature for the ECHU1H221GX5 is 125°C.
This capacitor measures 2 mm in length, 1.25 mm in width, and 0.9 mm in height.
The ECHU1H221GX5 is designed for surface mounting.
It is constructed from stacked metallised PPS film, featuring a mould-less design.
Yes, this capacitor is RoHS compliant, ensuring it meets environmental standards.
It is suitable for time-constant circuits, oscillators, resonators, audio filtering, and general-purpose electronic filtering.
The ECHU1H221GX5 exhibits low Equivalent Series Resistance (ESR), enhancing its performance in various applications.
It provides robust performance under conditions of 85°C and 85% relative humidity for 500 hours, supporting long-term stability.
Yes, the ECHU1H221GX5 is compatible with reflow soldering, making it suitable for automated manufacturing.
This capacitor belongs to the ECHU(X) series, which is designed for high precision electronic components.
