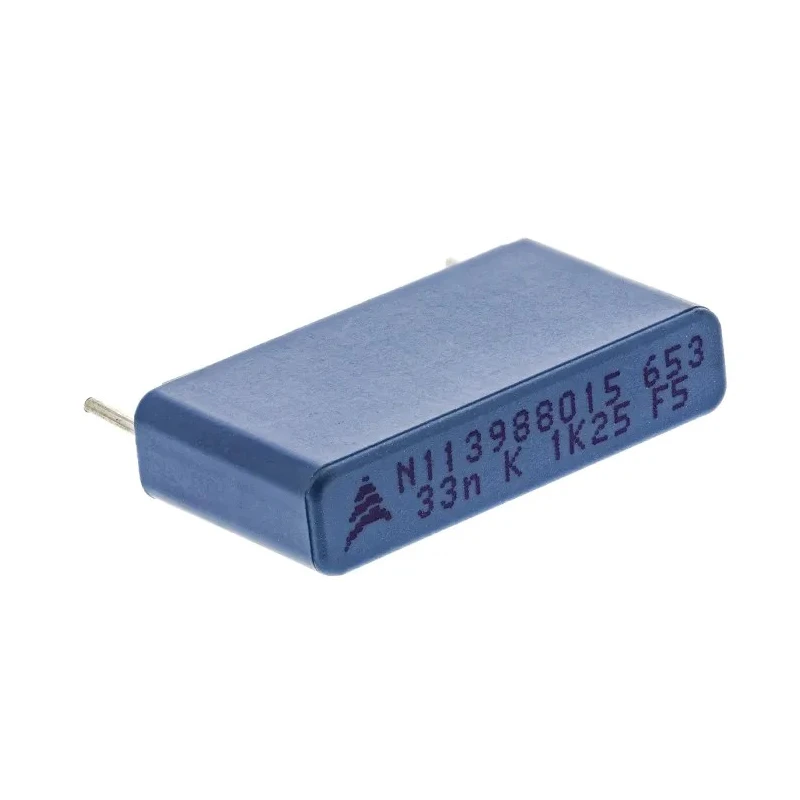

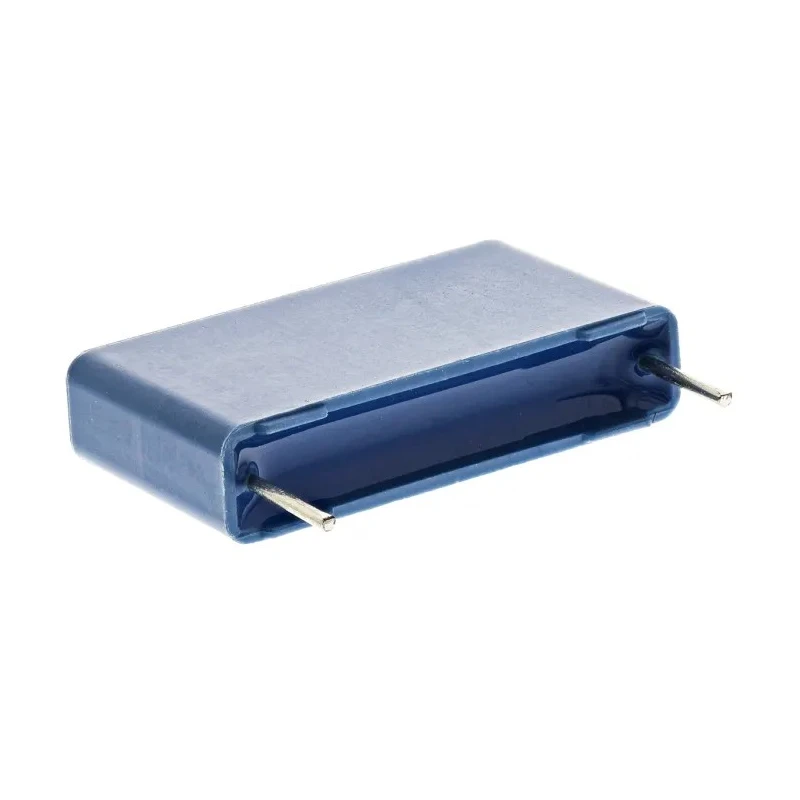

TDK Film Capacitor Through Hole, 33 nF Capacitance, 500 V AC, 1.25 kV DC B32653A7333K000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor Through Hole, 33 nF Capacitance, 500 V AC, 1.25 kV DC B32653A7333K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	15mm
Length	26.5mm
Model	B32653A7333K000
Width	6mm
Mount Type	Through Hole
Series	B32652
Maximum Operating Temperature	100°C
Capacitance	33nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	500V ac
Rated DC Voltage	1.25kV dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

The capacitor has a capacitance of 33 nanofarads for electronic circuit stability.
Rated AC voltage is 500 volts with a DC voltage rating of 1.25 kilovolts.
Designed with through-hole mount type and 22.5mm lead pitch for easy PCB integration.
Constructed with a plastic case meeting UL 94 V-0 flame retardant standards with epoxy resin sealing.
Operates reliably at temperatures up to 100 degrees Celsius.
Pin count is 2 with lead diameter of 0.8 mm to fit standard connectors.
Compact dimensions of 26.5 mm length, 15 mm height, and 6 mm width reduce PCB space consumption.
Complies with RoHS and UL standards ensuring environmental and safety compliance.

Product Description

TDK B32653A7333K000 Film Capacitor Through Hole 33 nF 500V AC 1.25 kV DC is a high-performance passive electronic component designed for efficient energy storage and filtering in electronic circuits.

This capacitor is constructed using wound capacitor technology, internally connected in series to achieve voltage ratings exceeding 1250 volts DC. It is encapsulated in a flame retardant plastic case rated UL 94V-0 with an epoxy resin seal to ensure durability and safety under operational stress.

Key electrical specifications include a capacitance of 33 nanofarads, a rated AC voltage of 500 volts, and a rated DC voltage of 1.25 kilovolts. The device supports a maximum operating temperature of 100°C, making it suitable for demanding industrial and automotive applications compliant with the AEC-Q200 Rev D automotive standard.

The through-hole mount design features a 22.5 mm lead pitch and 0.8 mm lead diameter to facilitate easy PCB assembly. Its compact dimensions of 26.5 mm length, 15 mm height, and 6 mm width optimize space on printed circuit boards.

This film capacitor is ideal for applications including TV S-correction, TV flyback circuits, and electronic lamp ballasts, delivering high pulse strength and contact reliability essential for long-term industrial and consumer electronics.

The capacitor offers high pulse strength for electrical surges. It demonstrates high contact reliability in applications requiring long service life. The small form factor conserves PCB space in compact electronic devices.

Designed for use in industrial, automotive, and consumer electronics sectors. Compliant with RoHS and UL certifications ensuring quality and safety. Choose this TDK B32653A7333K000 Film Capacitor for reliable performance in electronic assemblies requiring stable capacitance and high voltage endurance.
